Surface604  |  SKU: 22-S604TWST4814BK

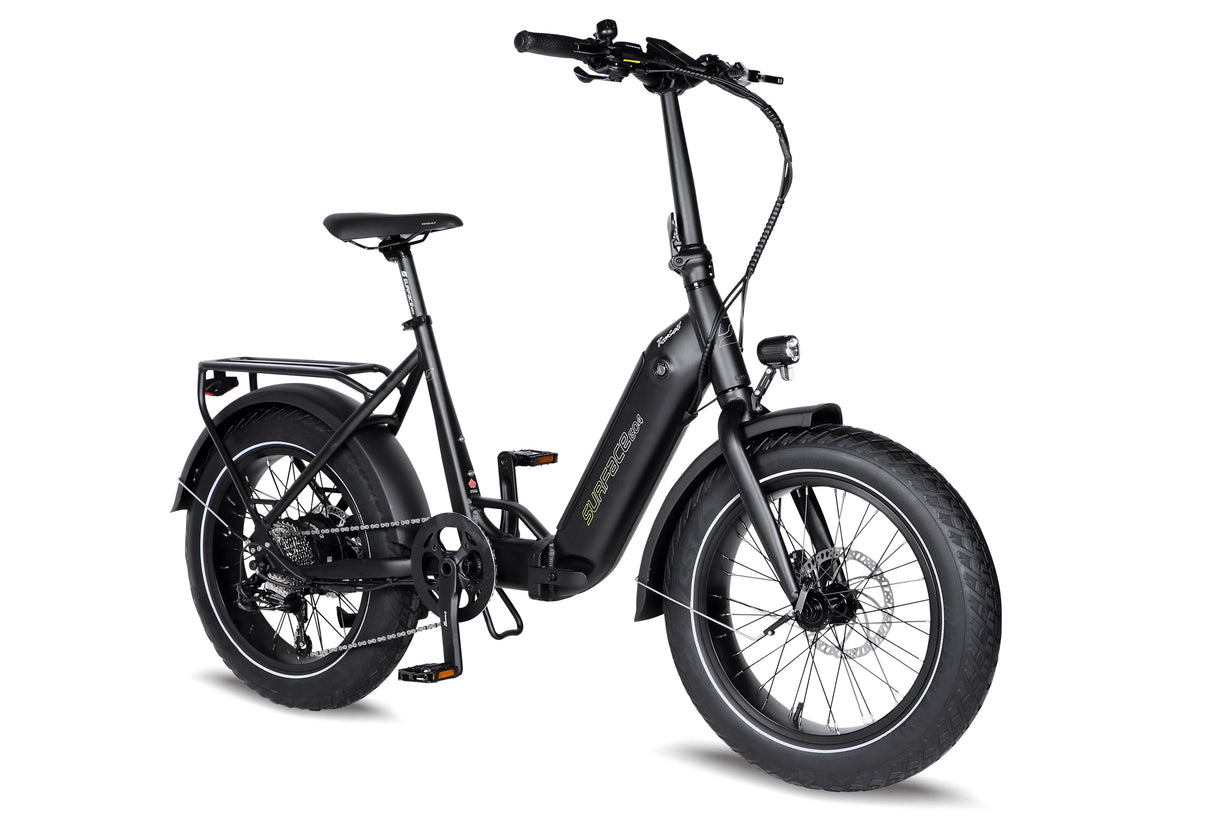

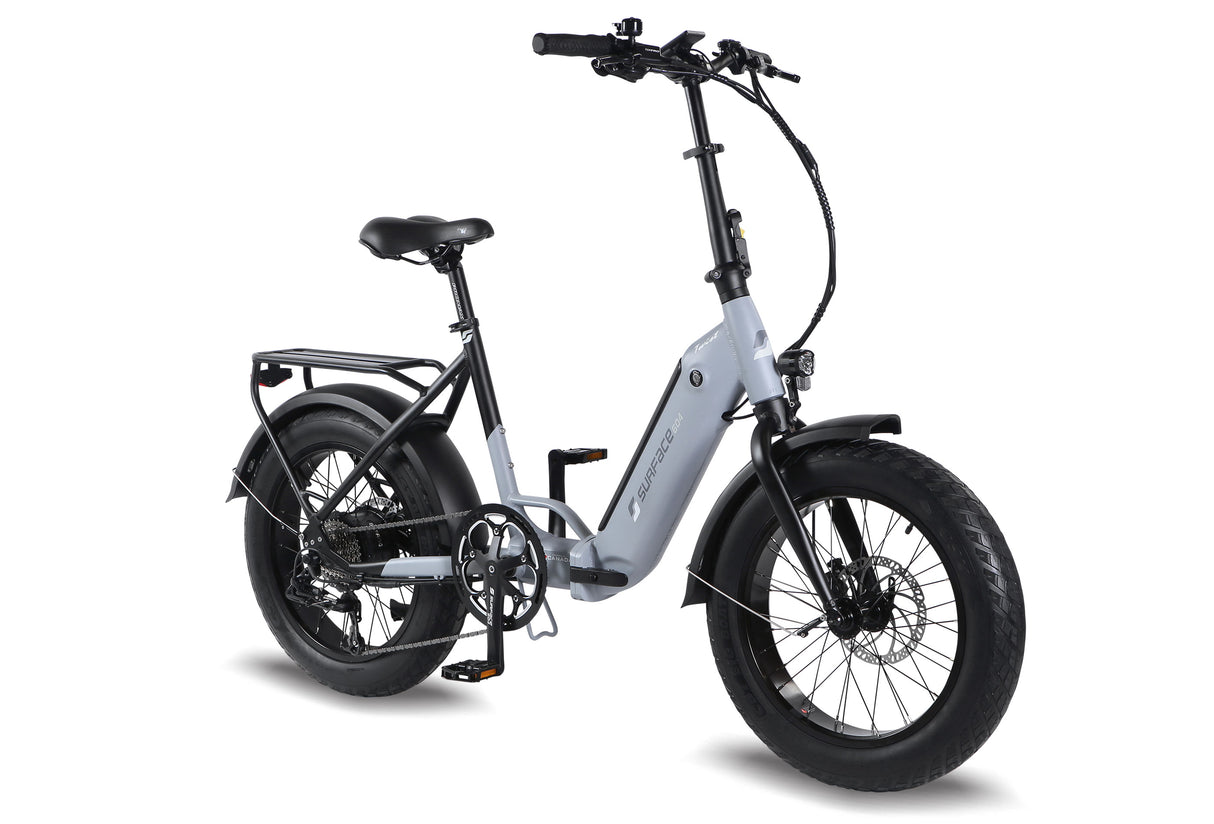

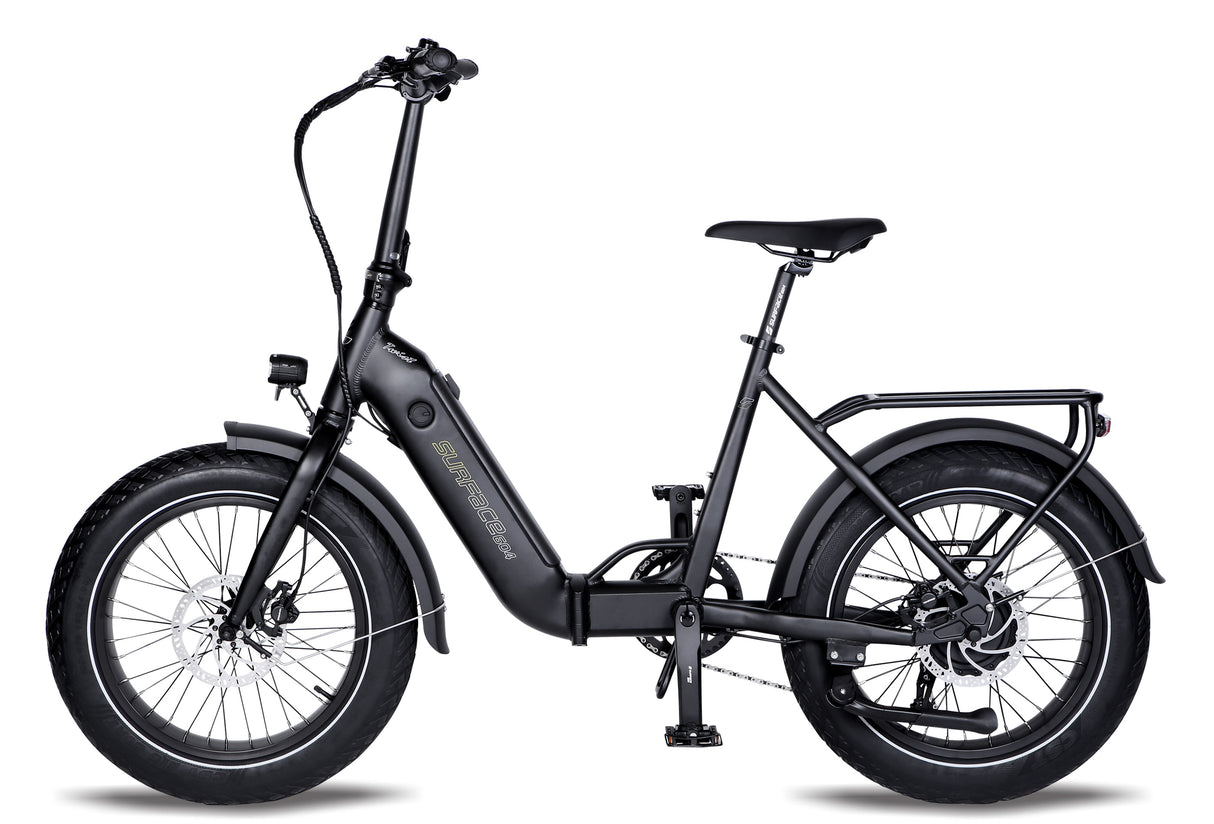

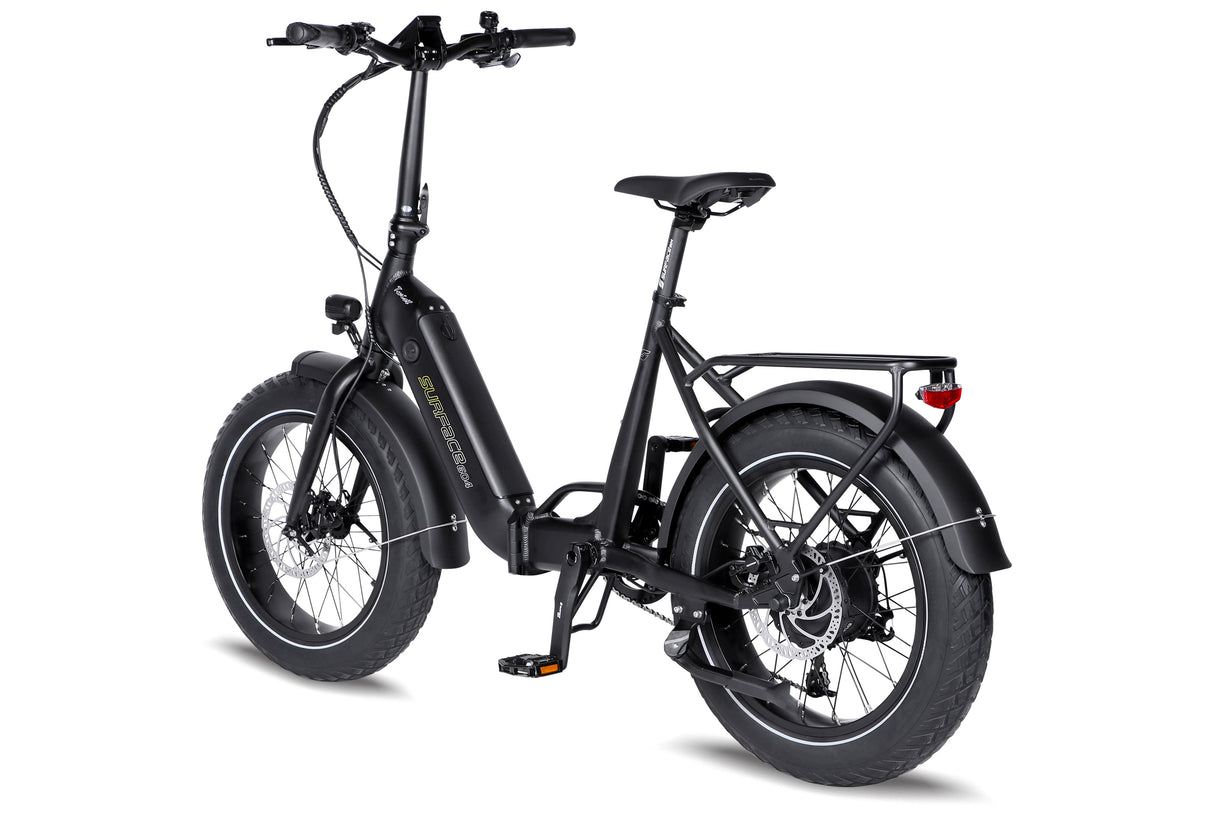

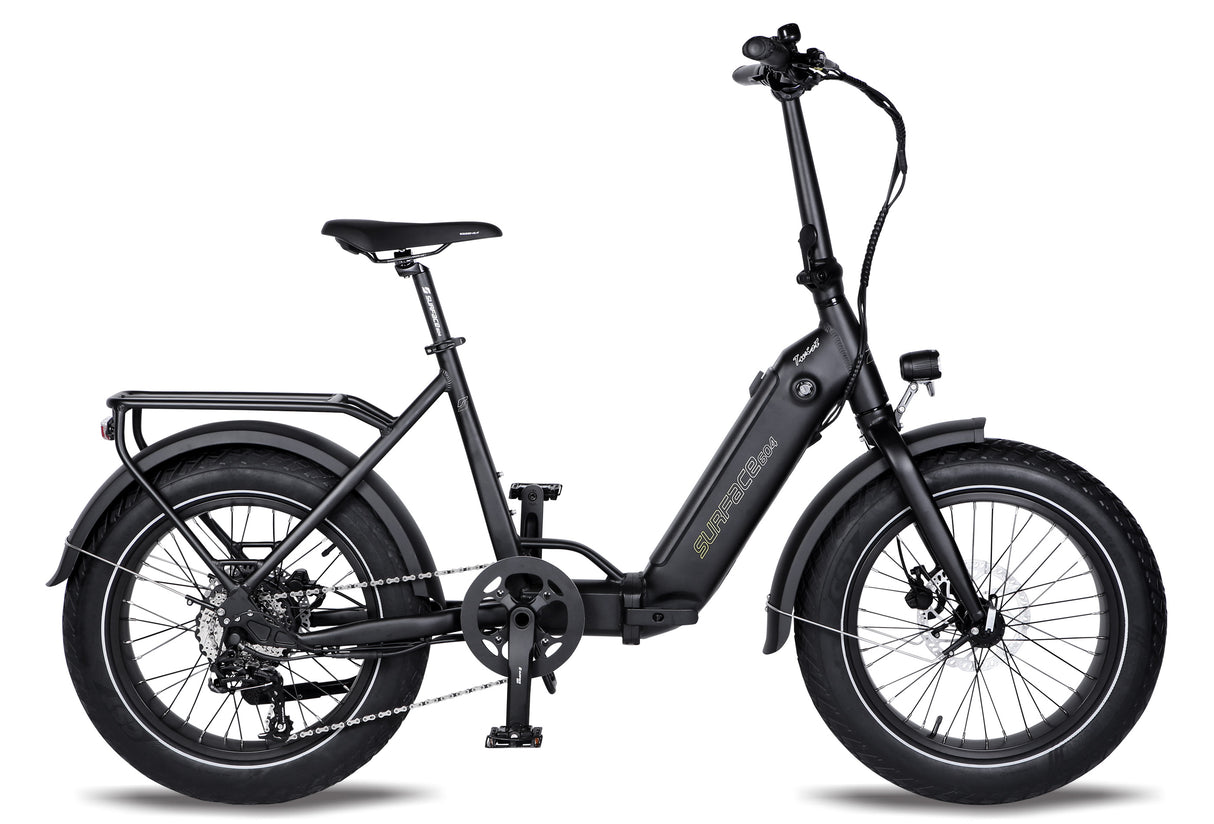

SURFACE604 - Twist Low Step 500W Folding

Available at our Calgary Location
$2,499.00 $2,900.00
Color: black

Delivery and Shipping

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

32
KM/H
TOP SPEED
60-80
KM
RANGE
250
LBS
CAPACITY

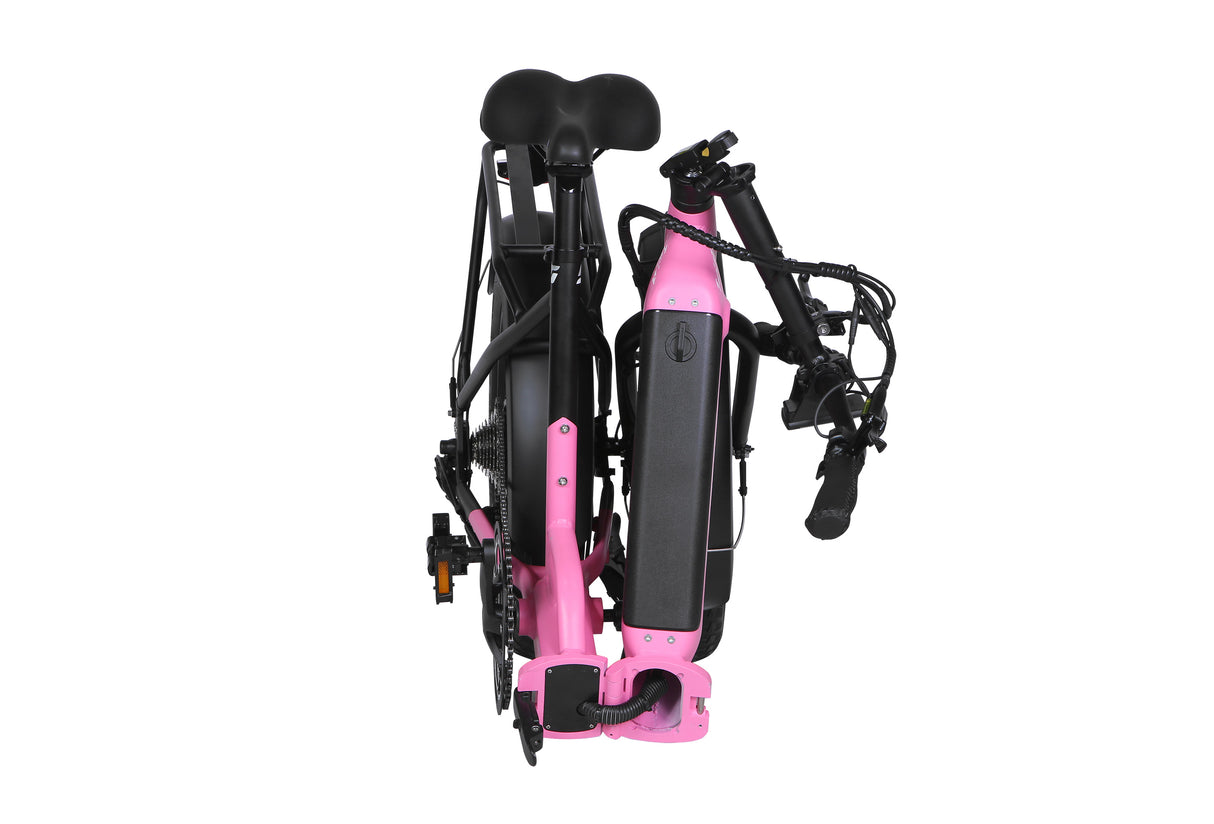

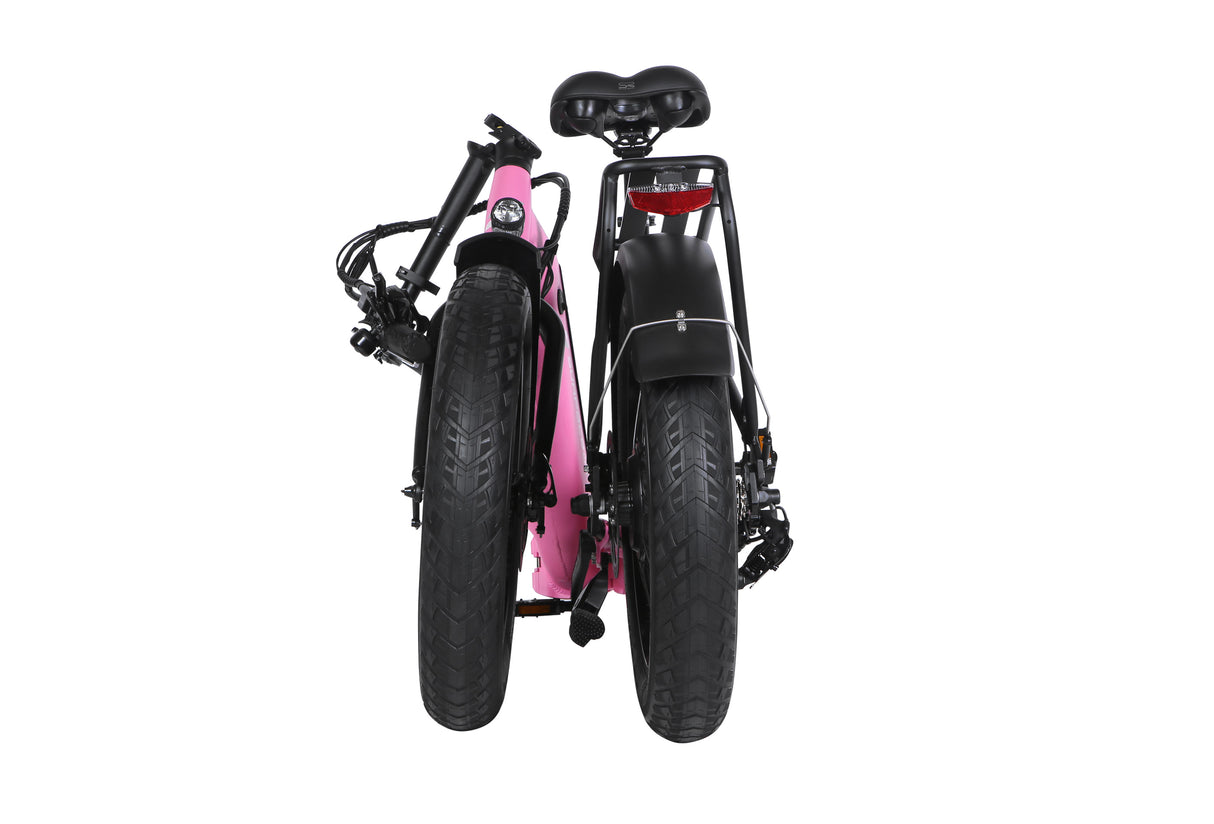

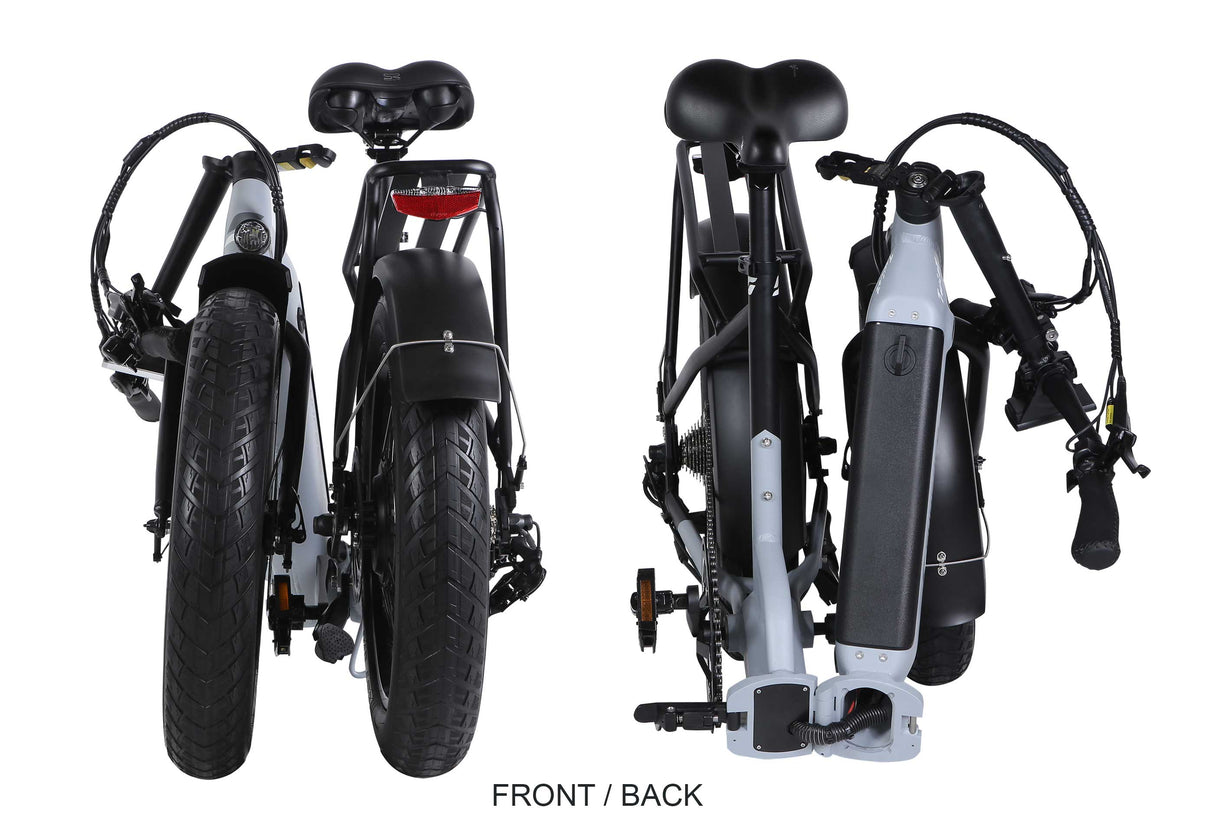

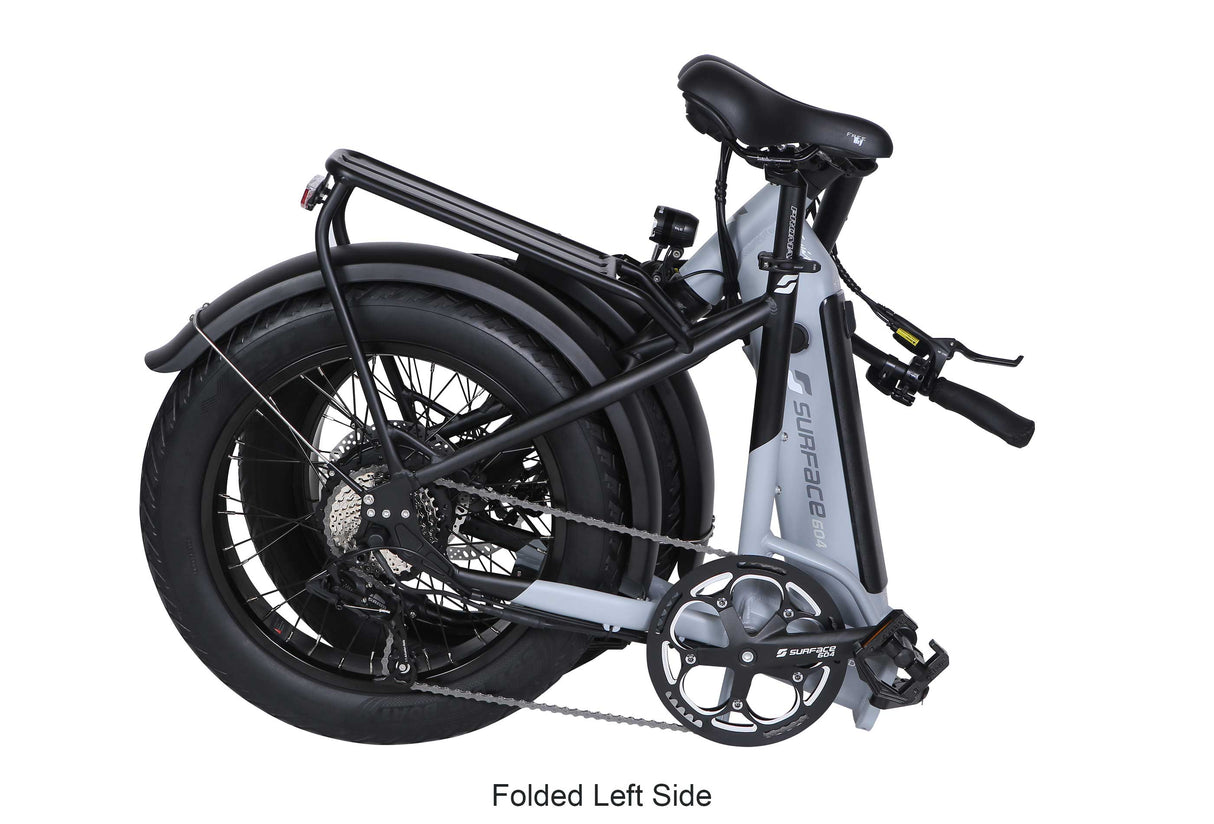

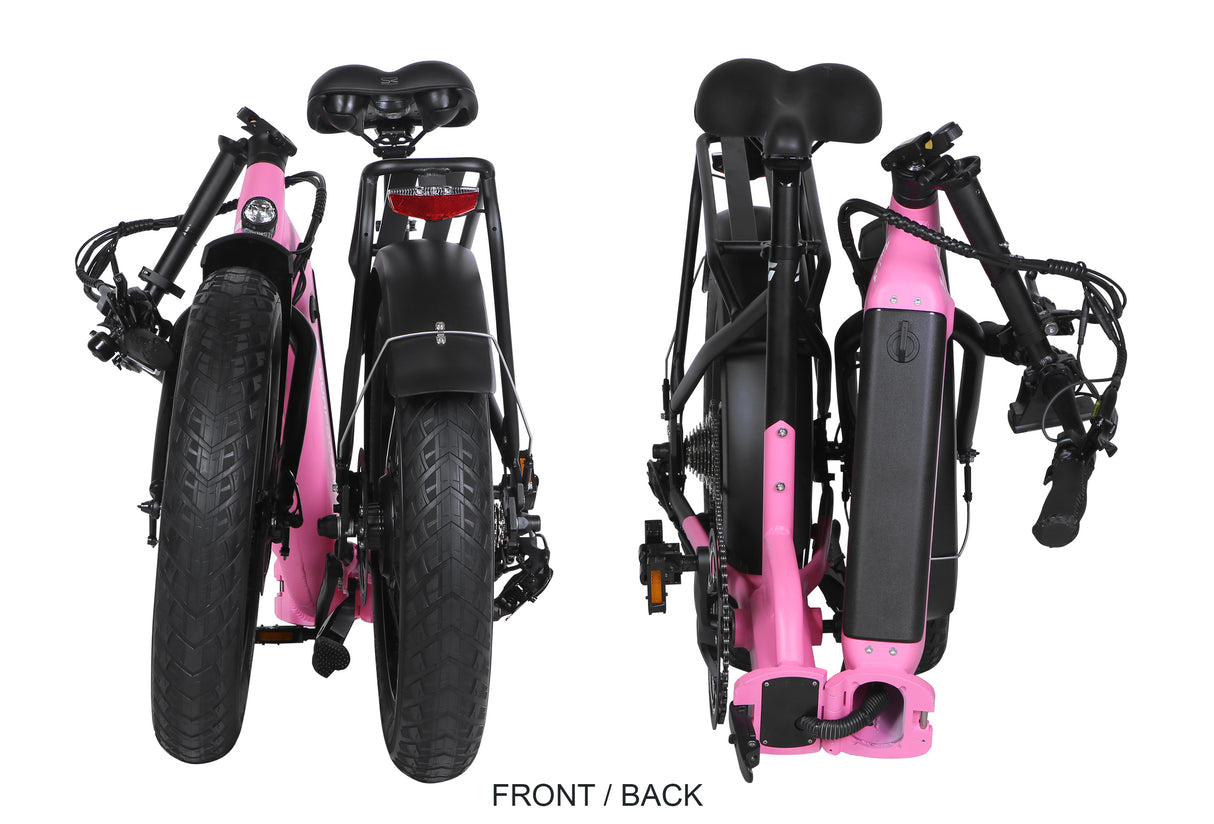

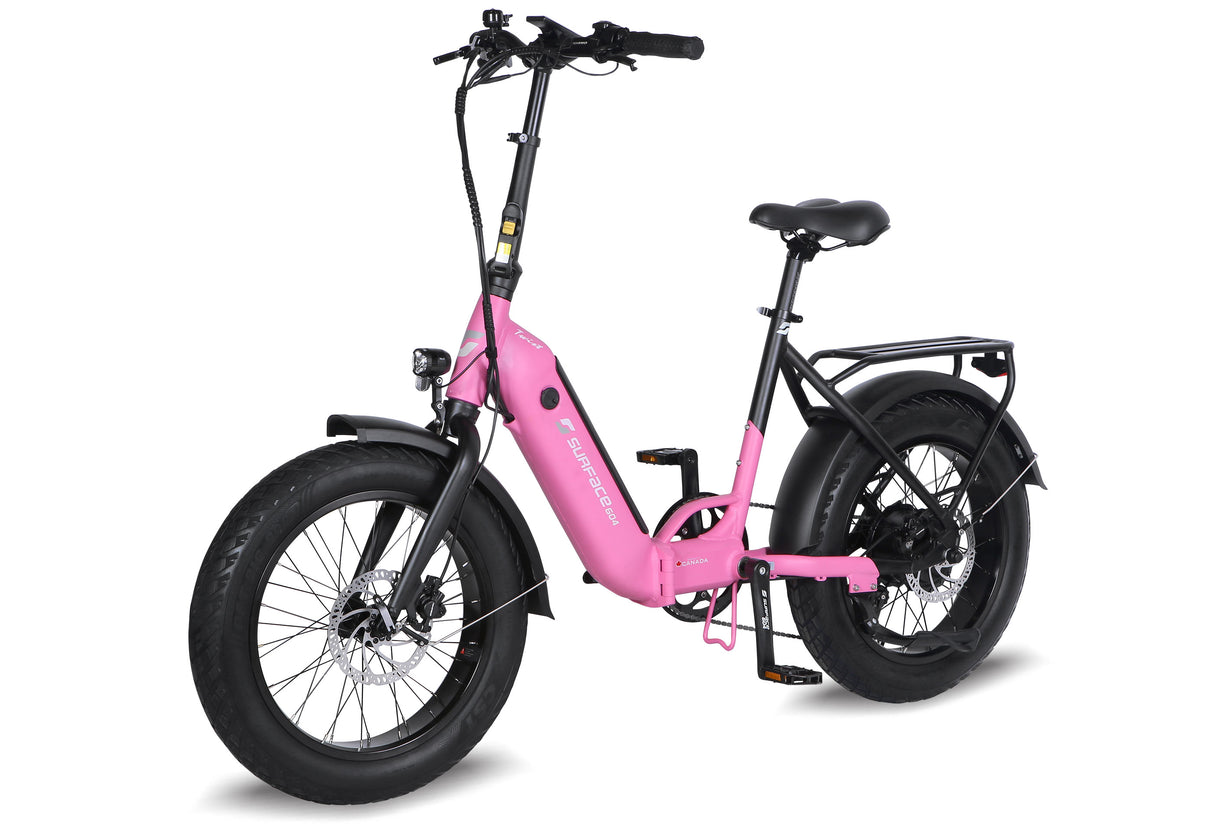

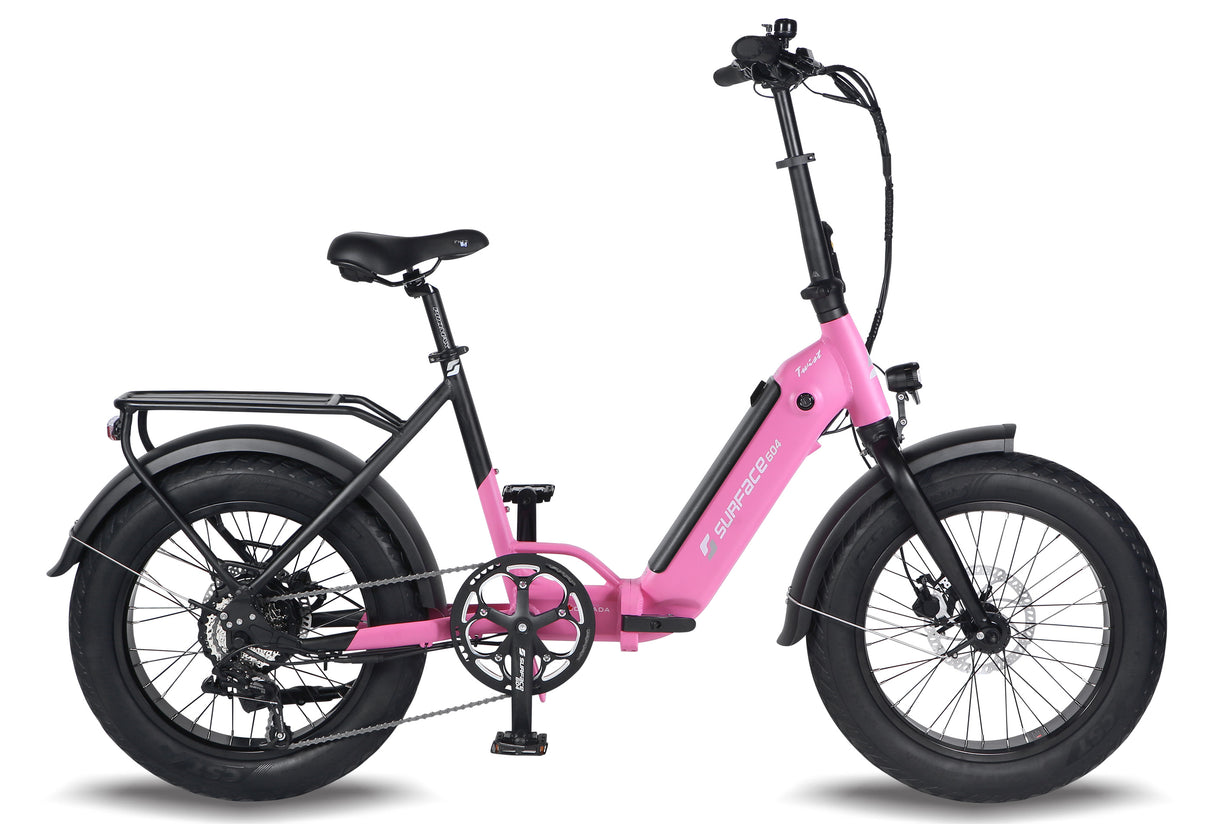

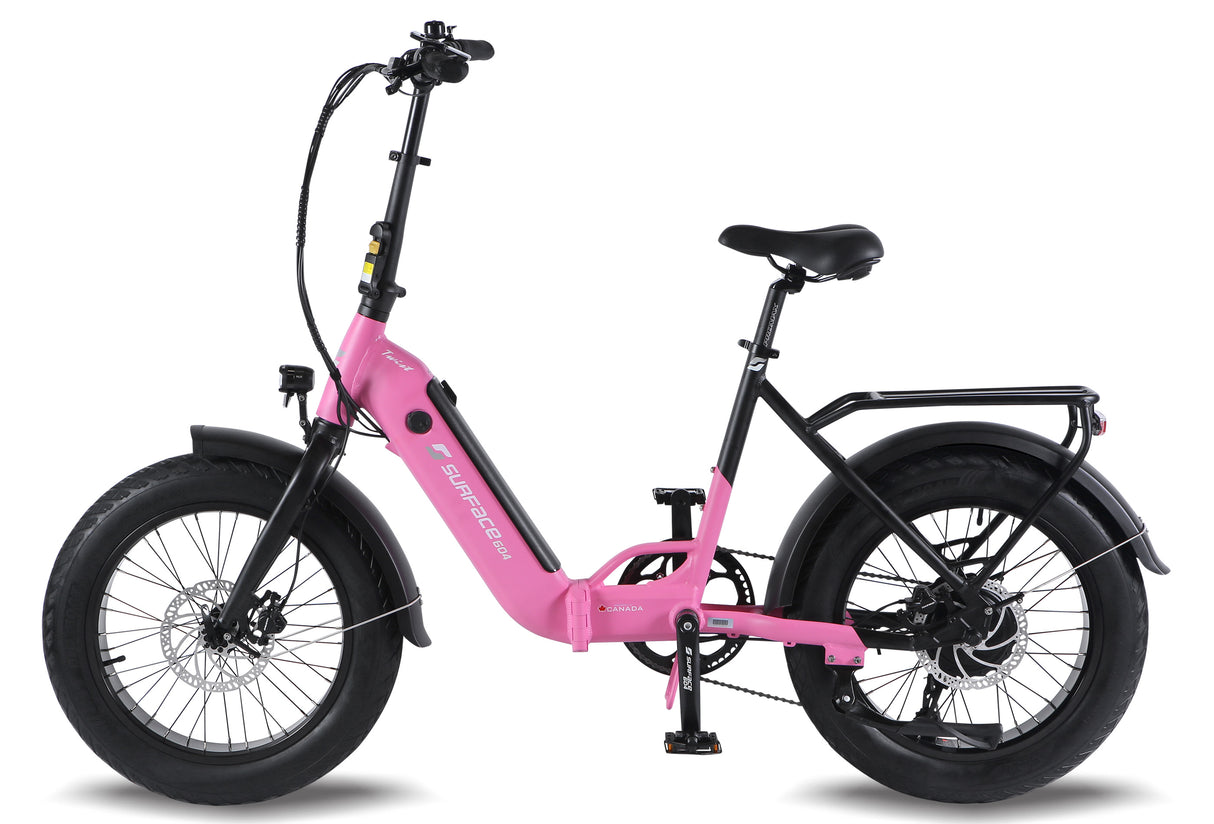

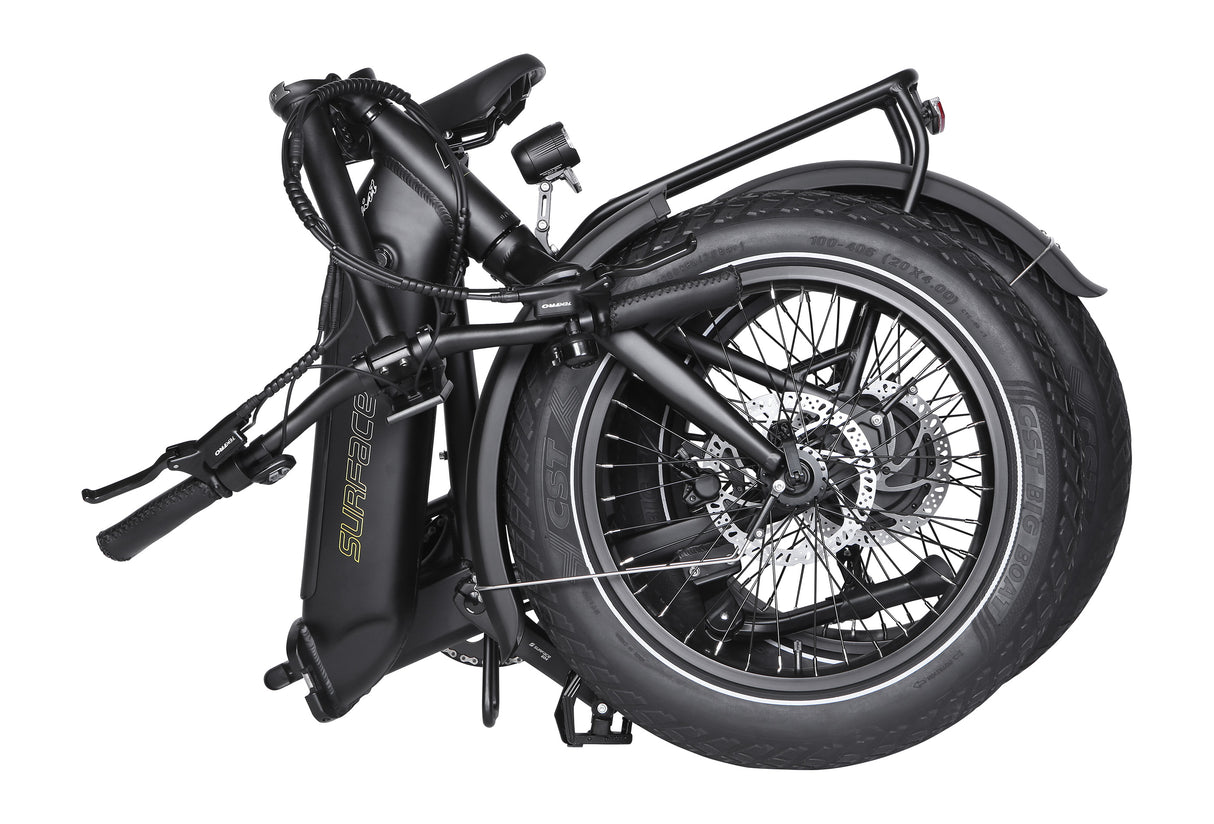

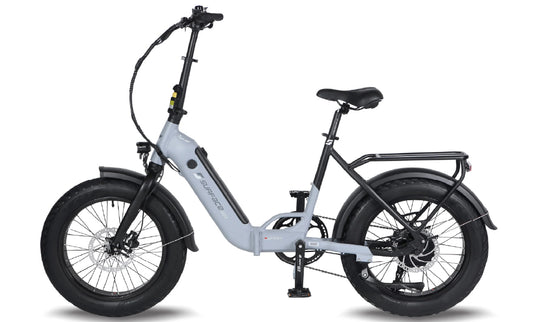

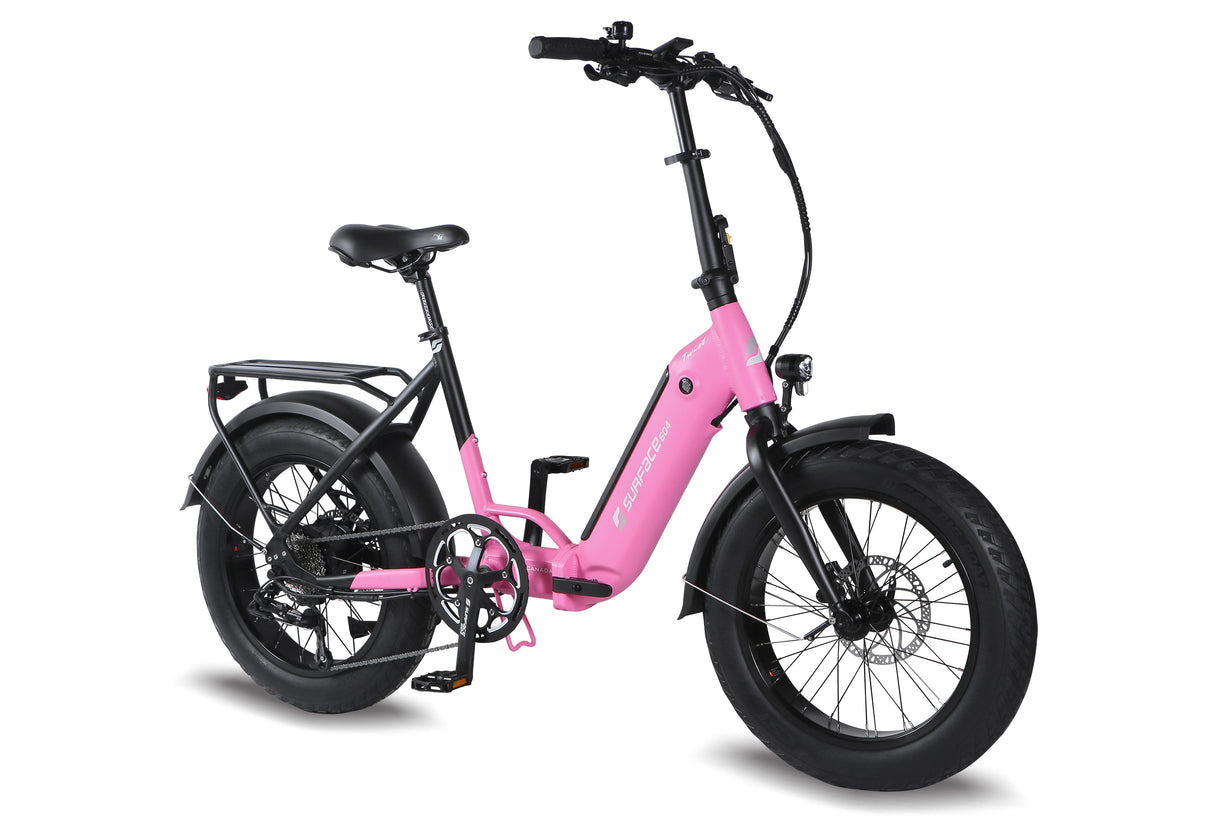

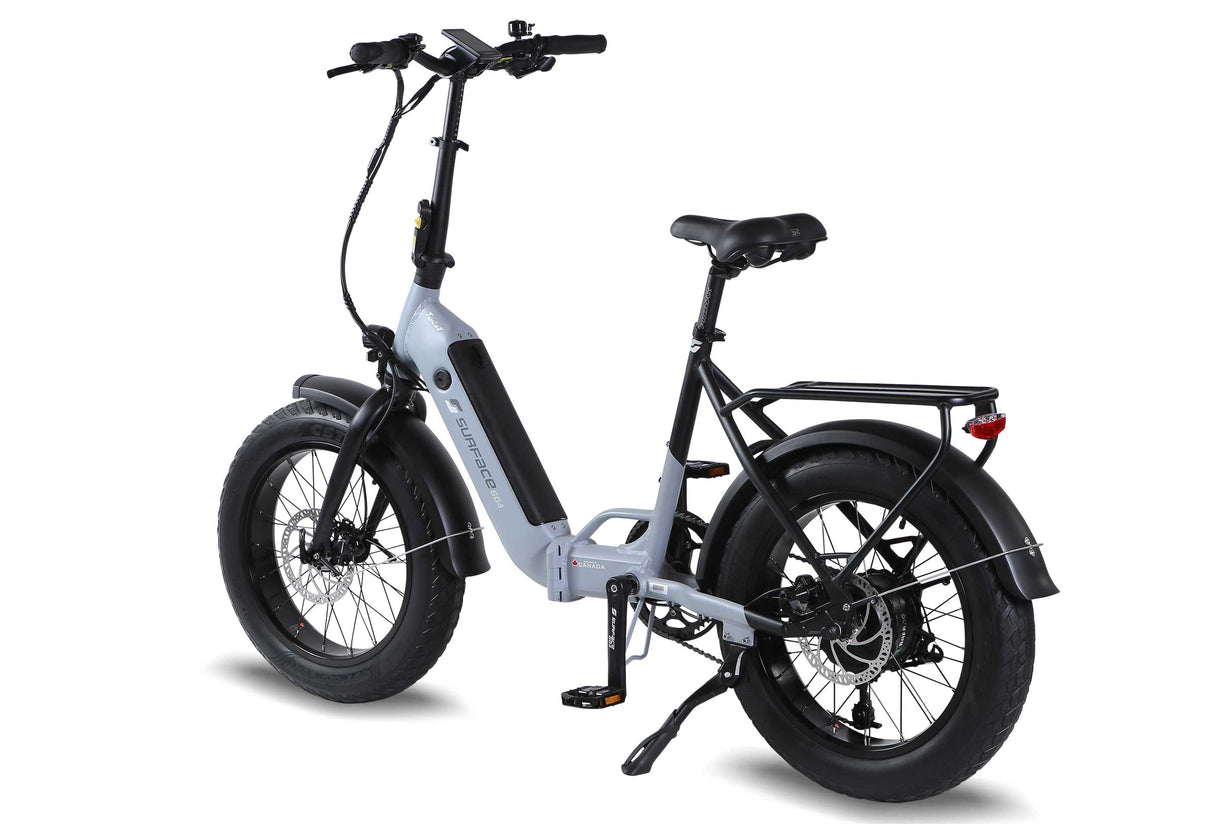

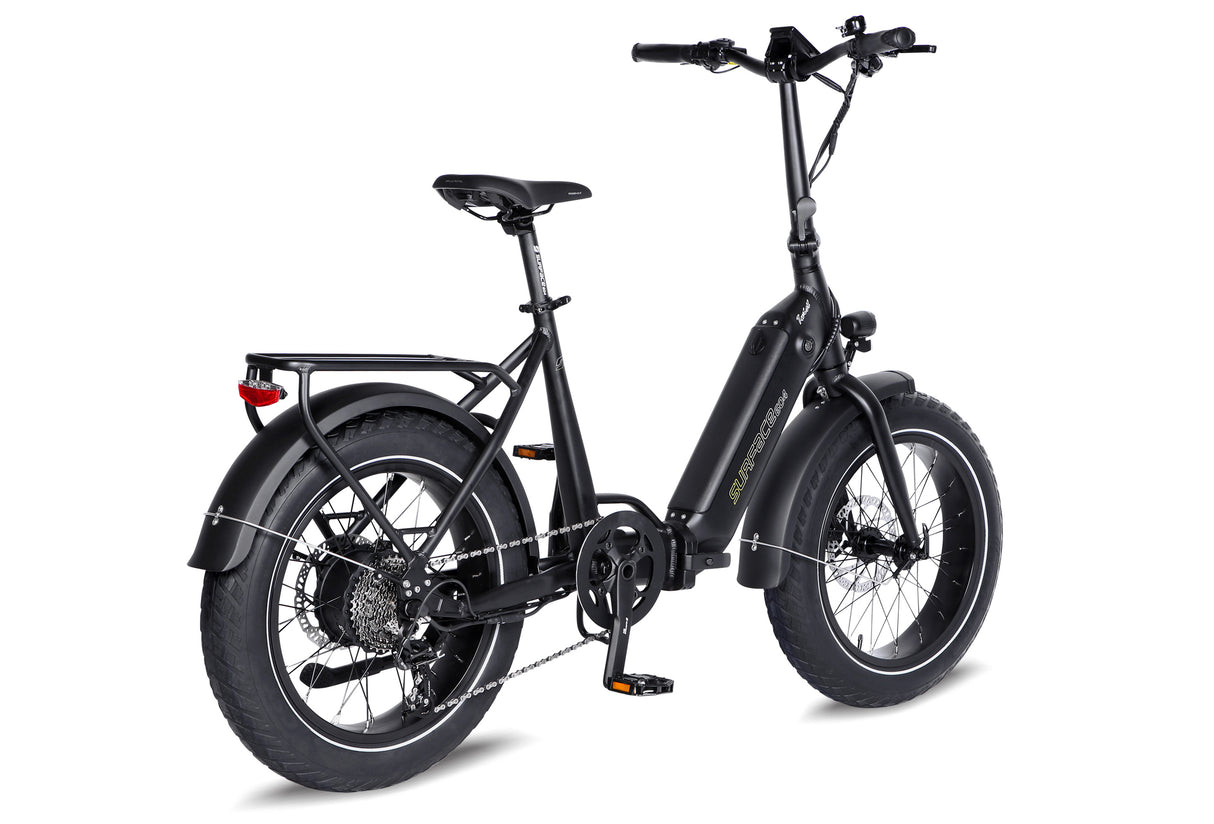

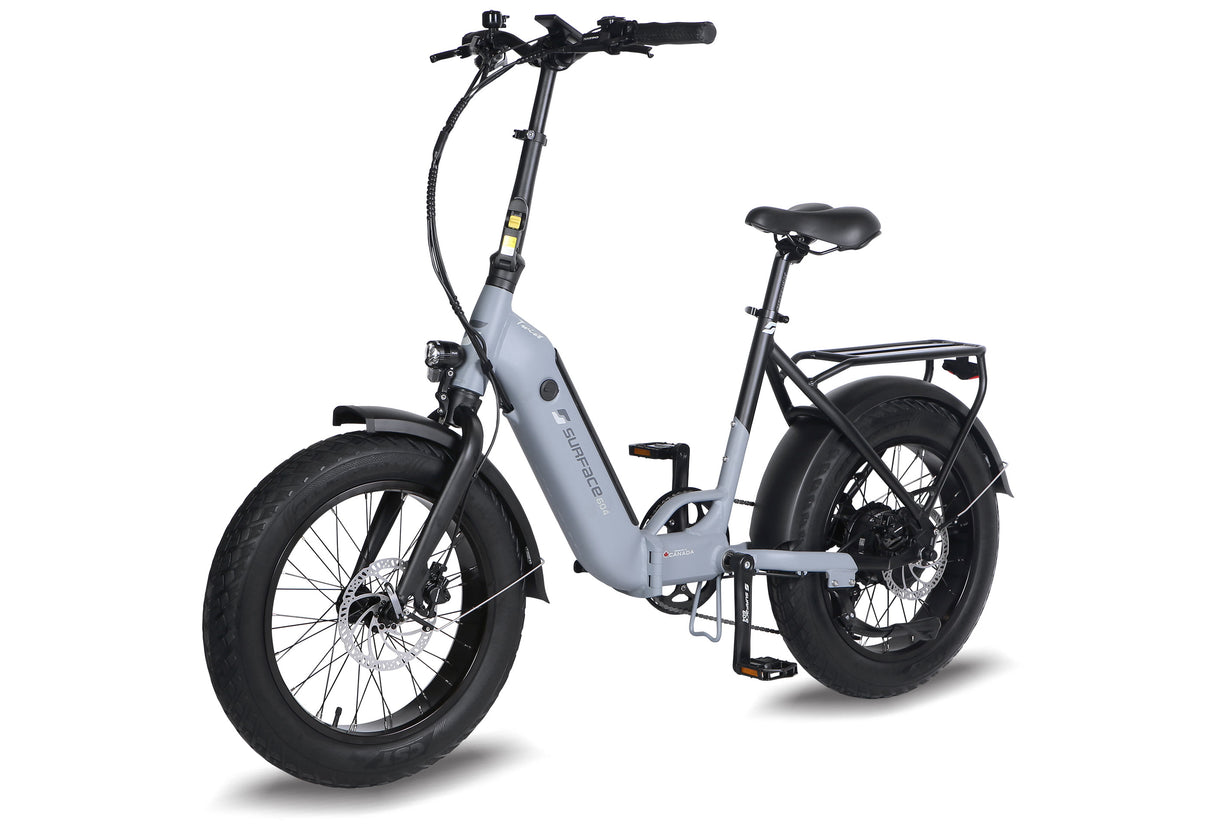

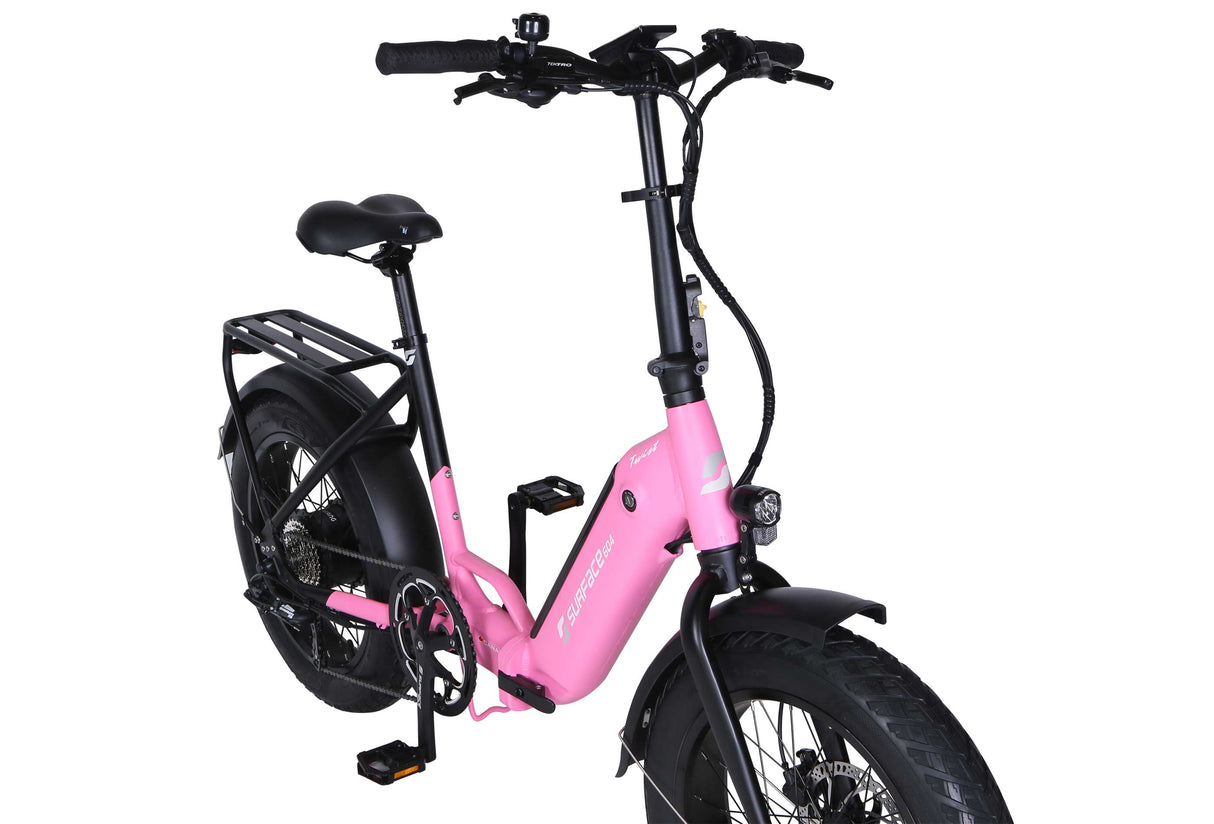

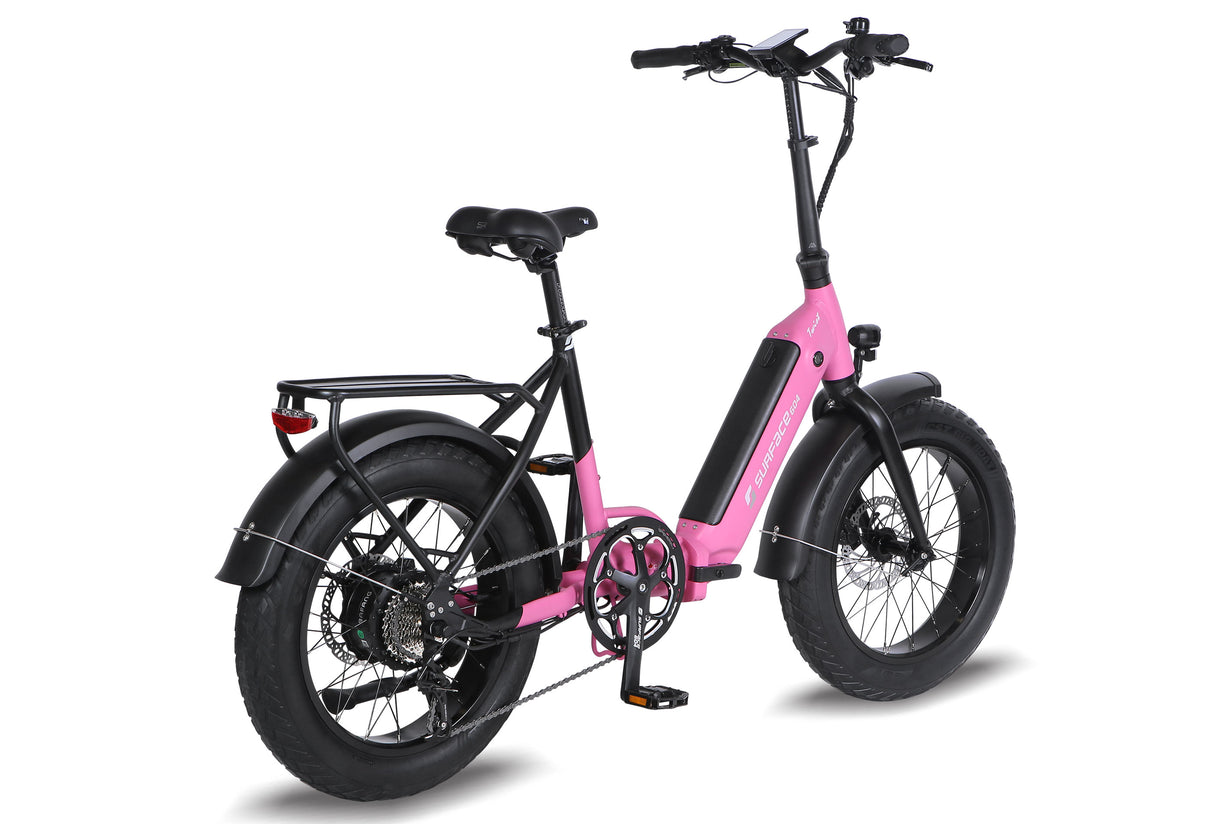

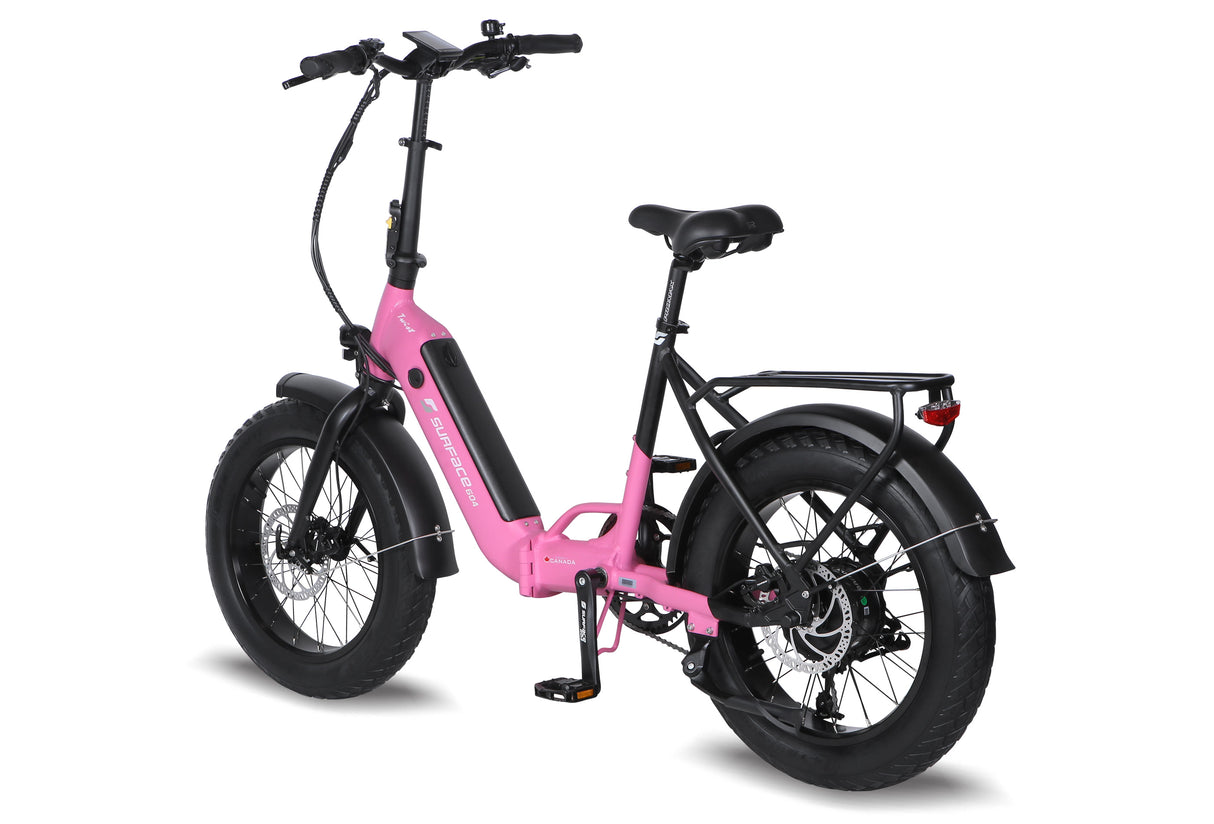

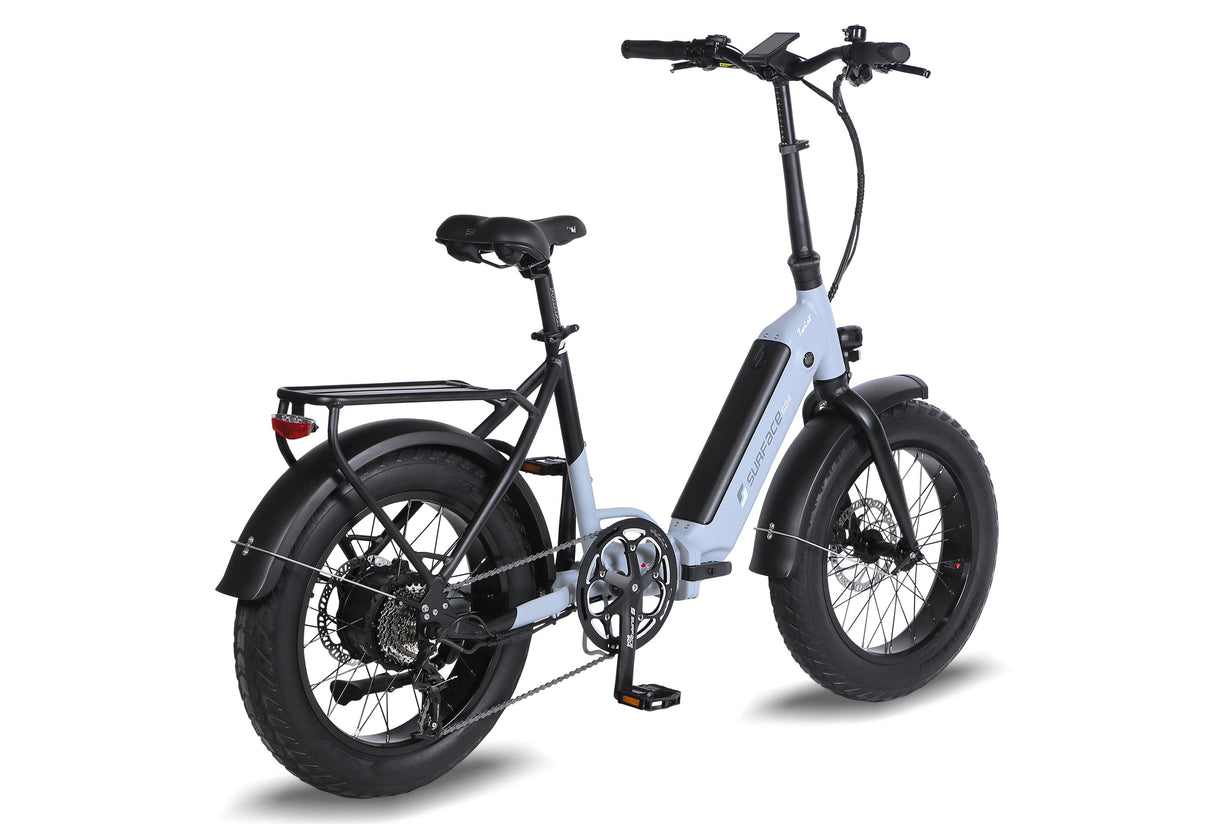

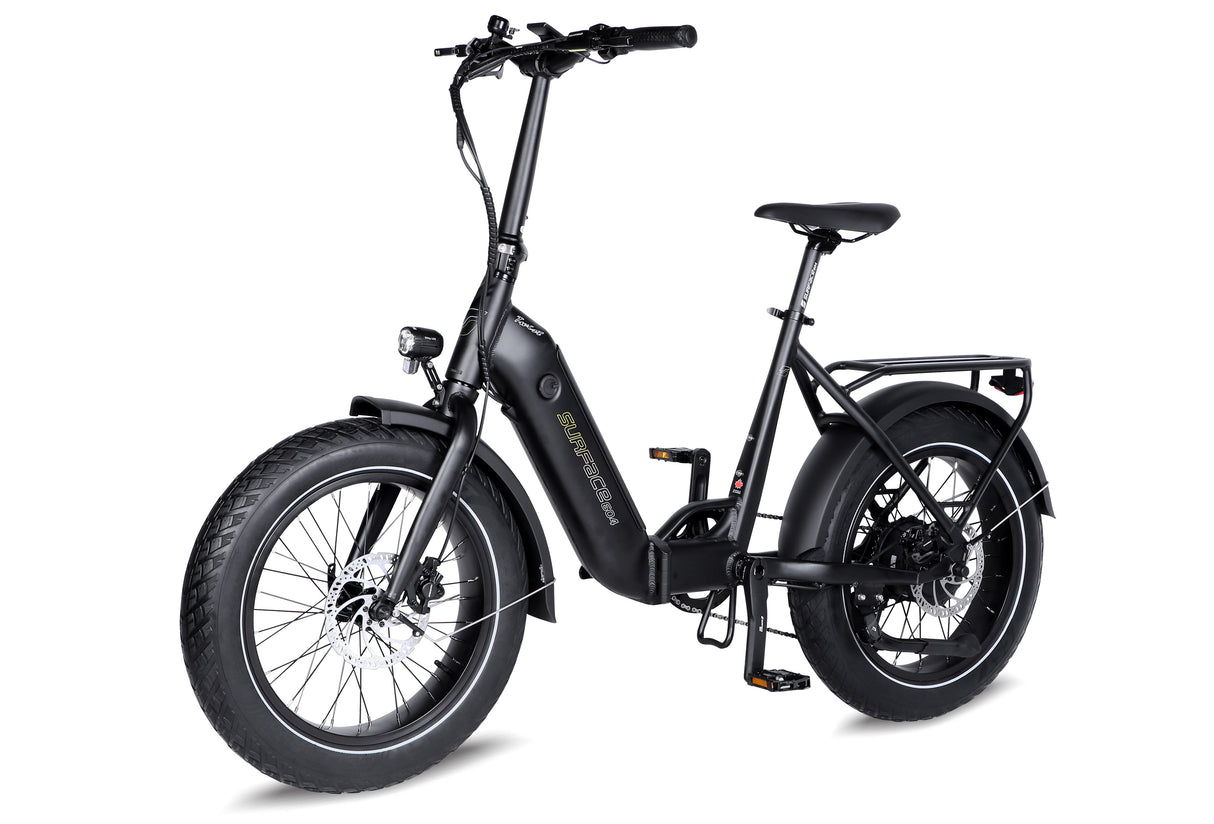

The Surface 604 Twist is a well-designed folding fat-tire e-bike that’s equally suited for city commutes and as it is quick adventures. With its low-step aluminum frame, the bike folds compactly for easy storage or transport.

A 500-watt Bafang hub motor (peaking at 750-watts) and Samsung 48V 14Ah battery deliver responsive power and up to 72 km (45 mi) of range. The fat 20″ × 4″ CST Big Boat tires and hydraulic disc brakes offer smooth handling and strong stopping power, while torque-sensing pedal assist with thumb throttle, a large color LCD, integrated lights, and thoughtful ergonomics ensure a confident, comfortable ride.

Video



Key Features

  • Motor & Battery: 500-watt (peaks ~750-watts) Bafang geared hub motor; 48V 14 Ah (672 Wh) Samsung lithium-ion battery
  • Top Speed & Range: Top speed around 32 km/h (20 mph); range up to ~72 km (45 mi) per charge

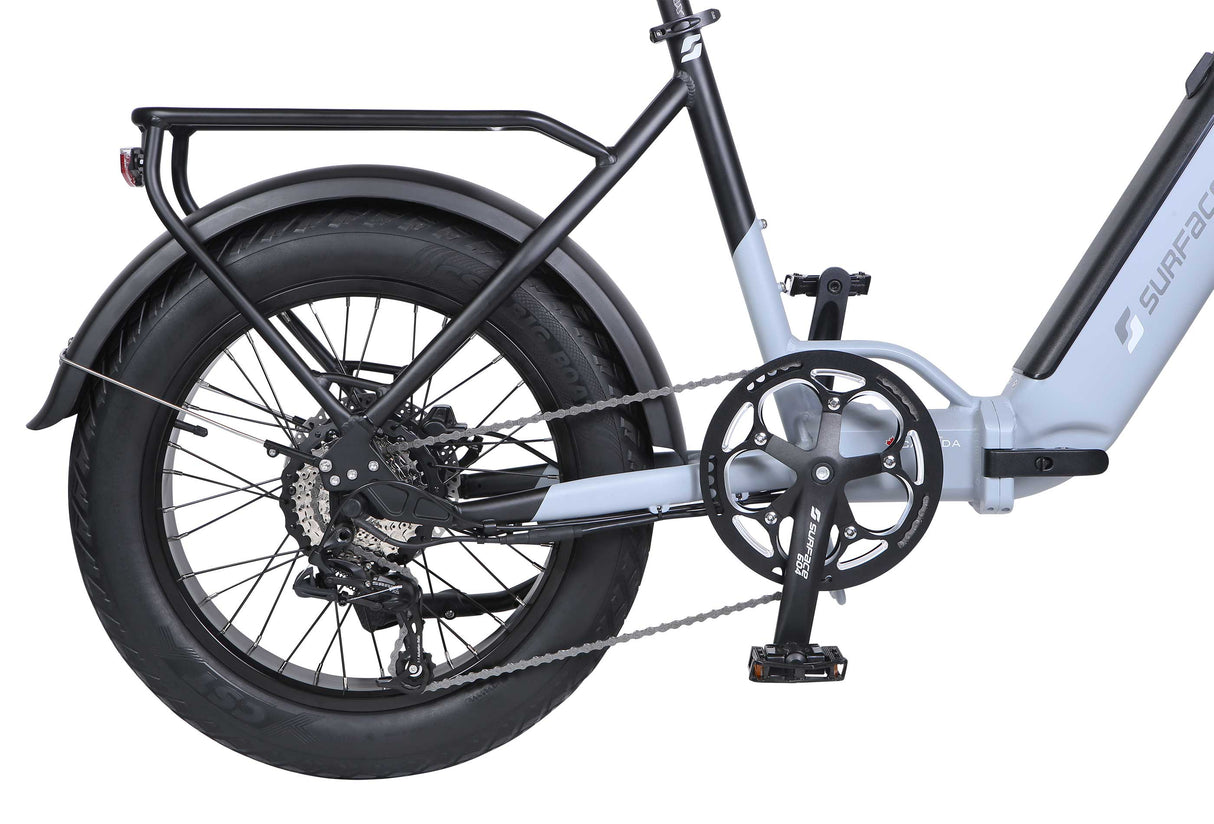

  • Braking & Gearing: Tektro Auriga hydraulic disc brakes with motor inhibitor; SRAM X5 9-speed drivetrain

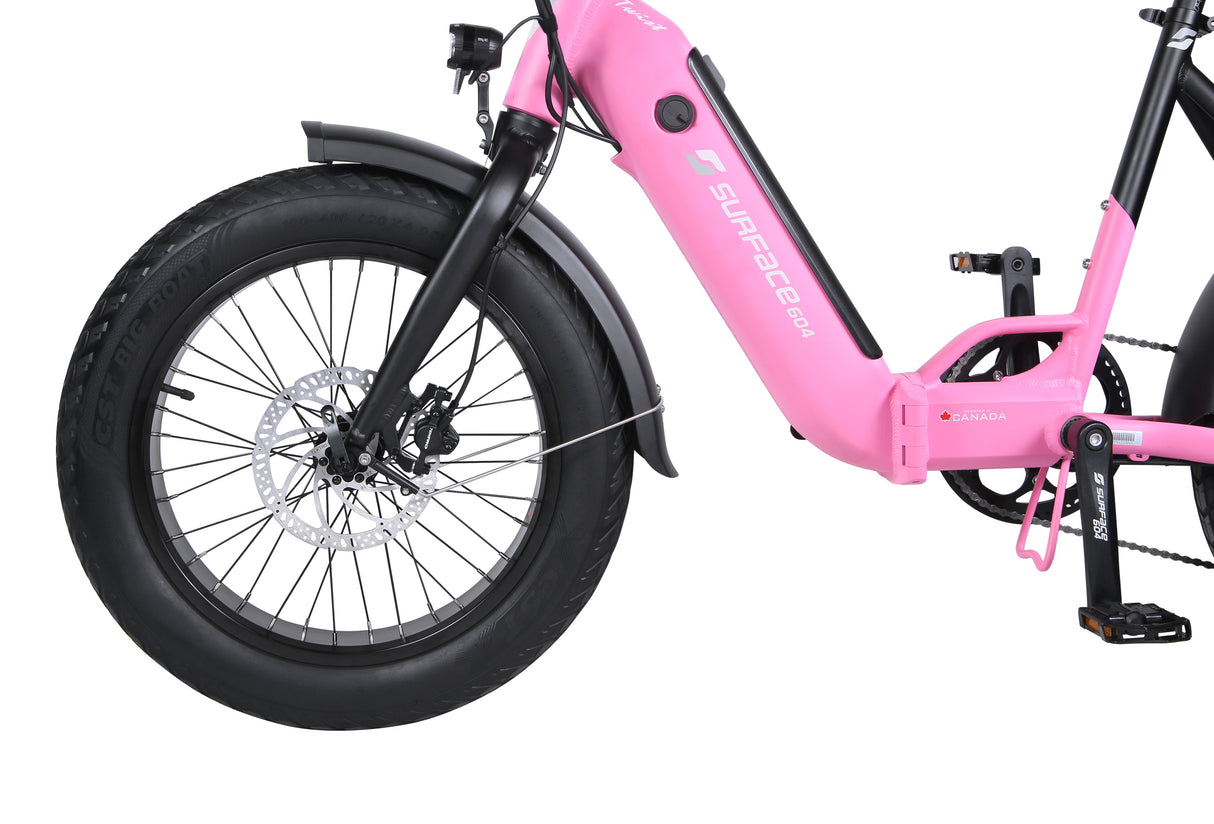

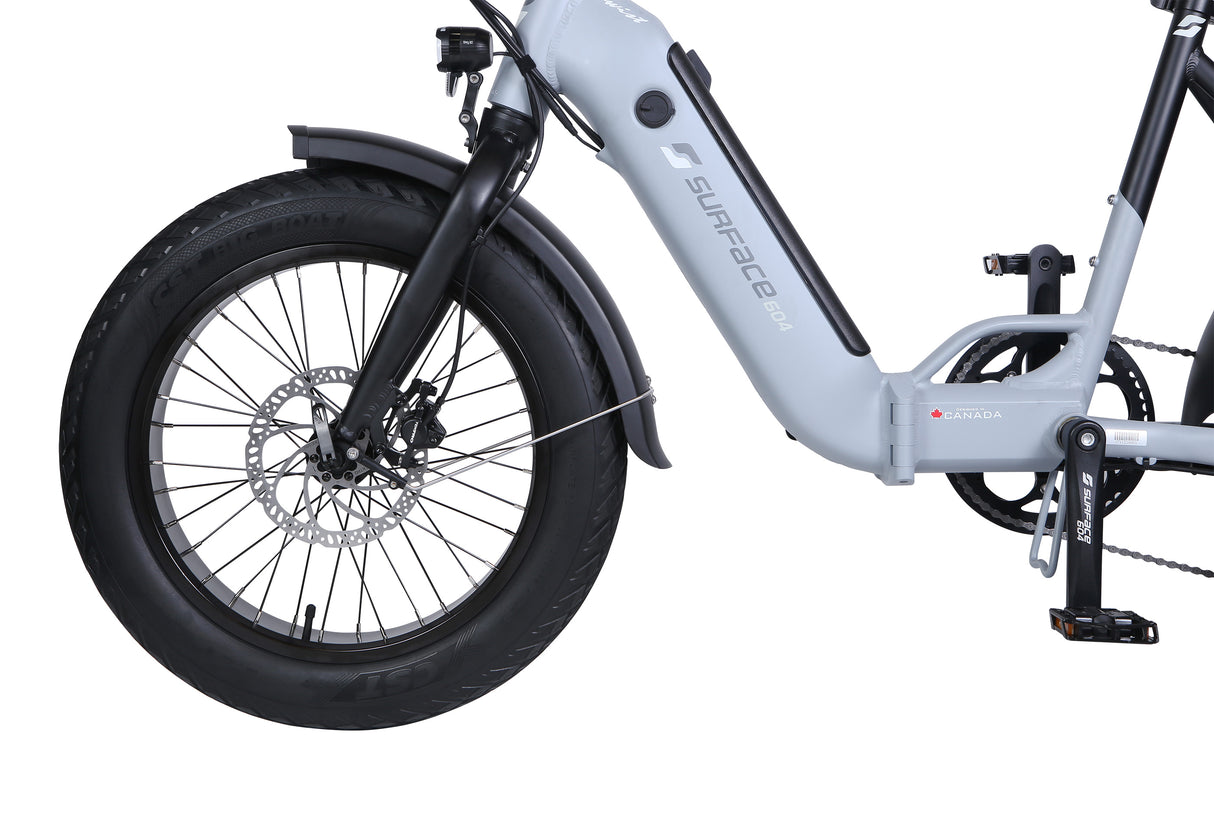

  • Comfort & Traction: CST Big Boat 20″ × 4″ fat tires for traction across varied terrain; compact folding low-step frame

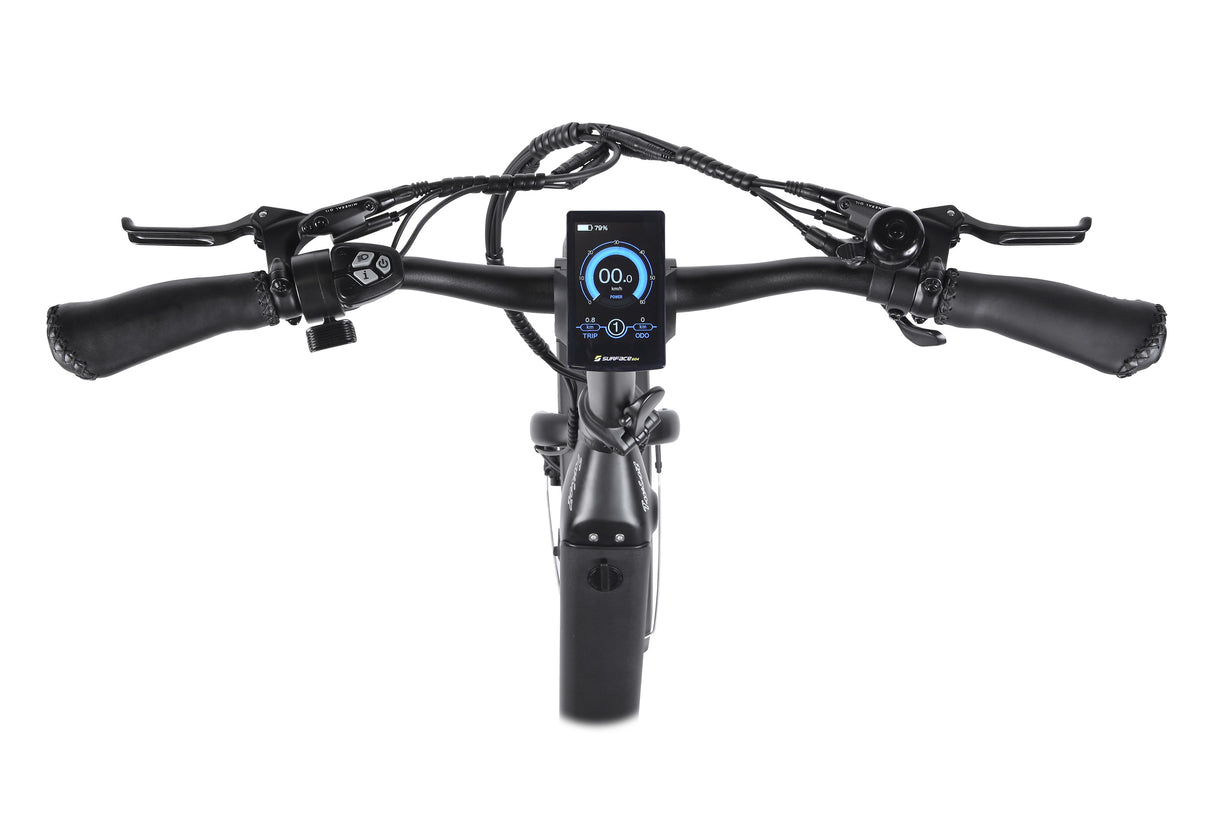

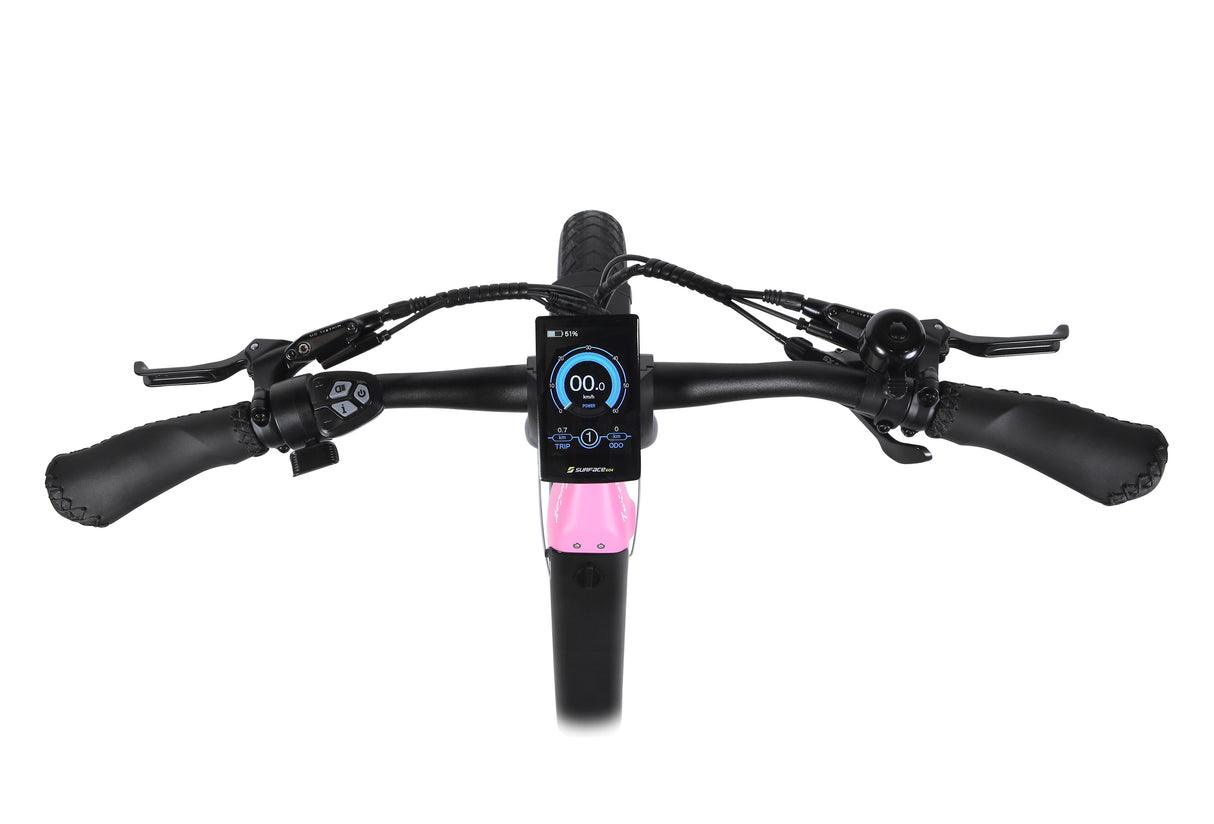

  • Controls & Display: Torque-sensing pedal assist with thumb throttle; large 3.5″ color LCD display with USB charging

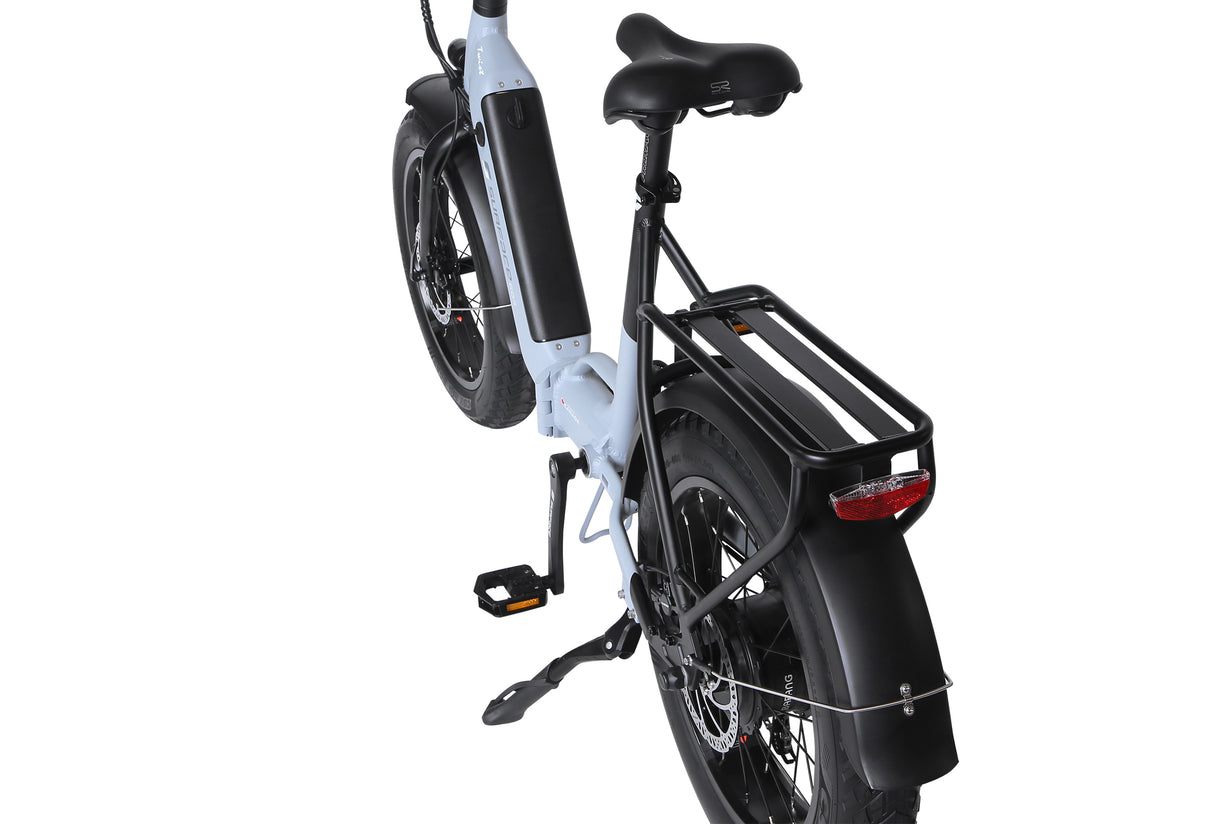

  • Extras for Everyday Ride: Integrated front and rear LED lights, sturdy folding rack, PU-leather grips, suspension seat post; weighs ~59 lb (26.8 kg)
  • Warranty & Build: Durable 6061 aluminum construction; 1-year warranty on parts and electronics, plus 3-year frame coverage

Let's Get Technical

Battery

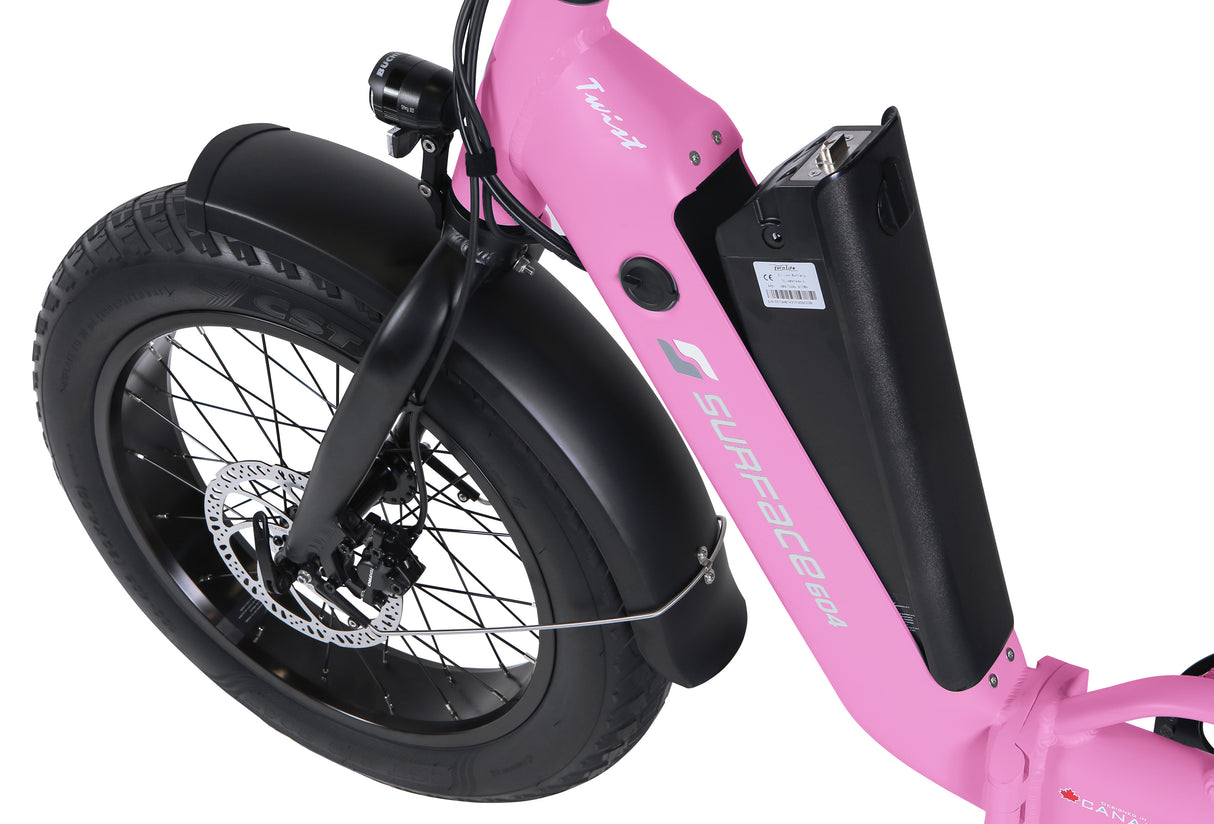

Included: 48V 14Ah / 672Wh, Samsung Lithium-Ion 18650 Cells - Integrated

Controller

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart

Display

SURFACE604 Color LCD Display with USB Jack, Bigger Display: 3.5" for 2022 vs. 3.2" for 2020

Charger

3-4 from empty

Throttle

Thumb Push Activated Throttle

Detailed Specs
Motor Details 500W (Peaks at 750W) Bafang Geared Rear Hub Brushless Motor
Brakes TEKTRO Auriga Hydraulic Disc Brakes, Post Mount, with Motor Inhibitors
Throttle Thumb Push Activated Throttle
Battery Included: 48V 14Ah / 672Wh, Samsung Lithium-Ion 18650 Cells - Integrated
Range Details Up to 45mi (72km) with a 48V14Ah Battery
Pedal Assist Drop Out Torque Sensing Pedal Assist with a Throttle

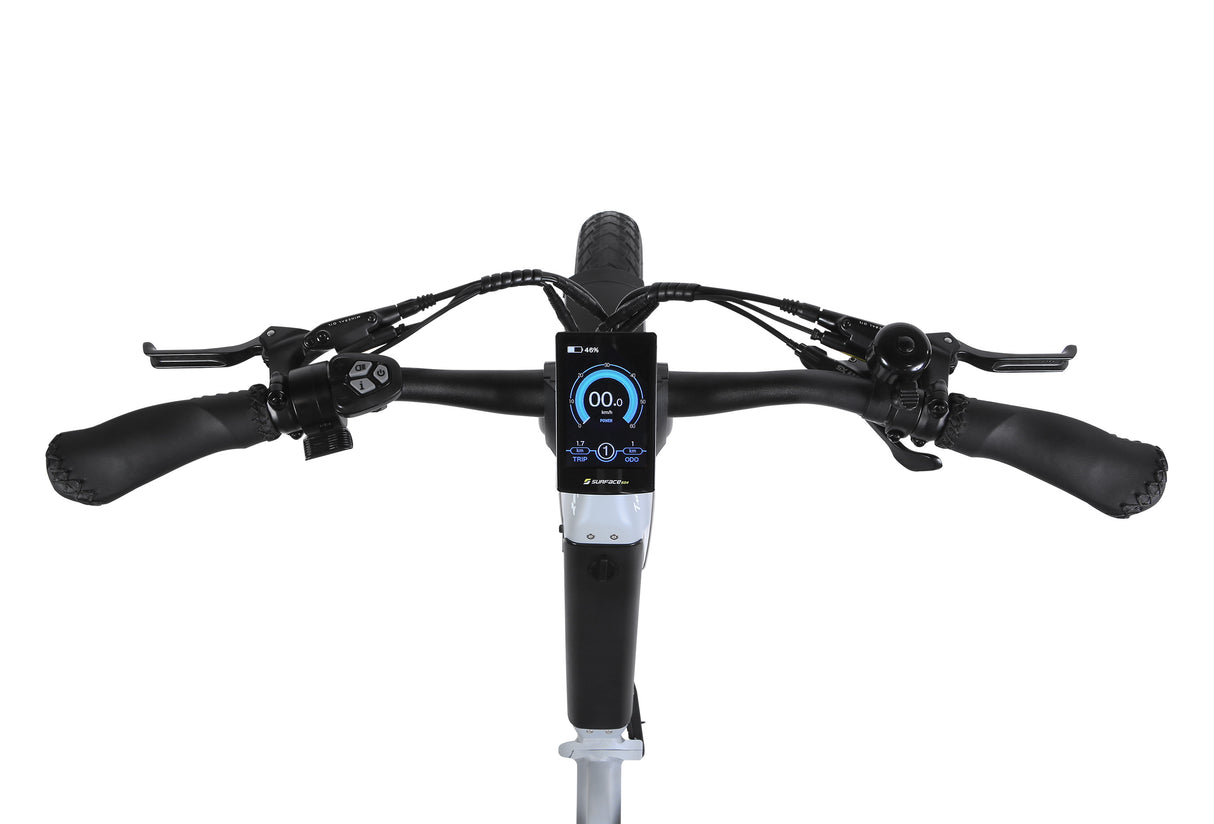

Display SURFACE604 Color LCD Display with USB Jack, Bigger Display: 3.5" for 2022 vs. 3.2" for 2020
Controller SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart
Charger 3-4 from empty
Cables Internal Cable Routing
Drive Type Hub Drive
Fork Rigid
Shift Levers SRAM X5 Trigger Shift
Rotors 180mm Front/Rear x 2.34mm thick
Pedals Wellgo Platform
Chain KMC 9-speed

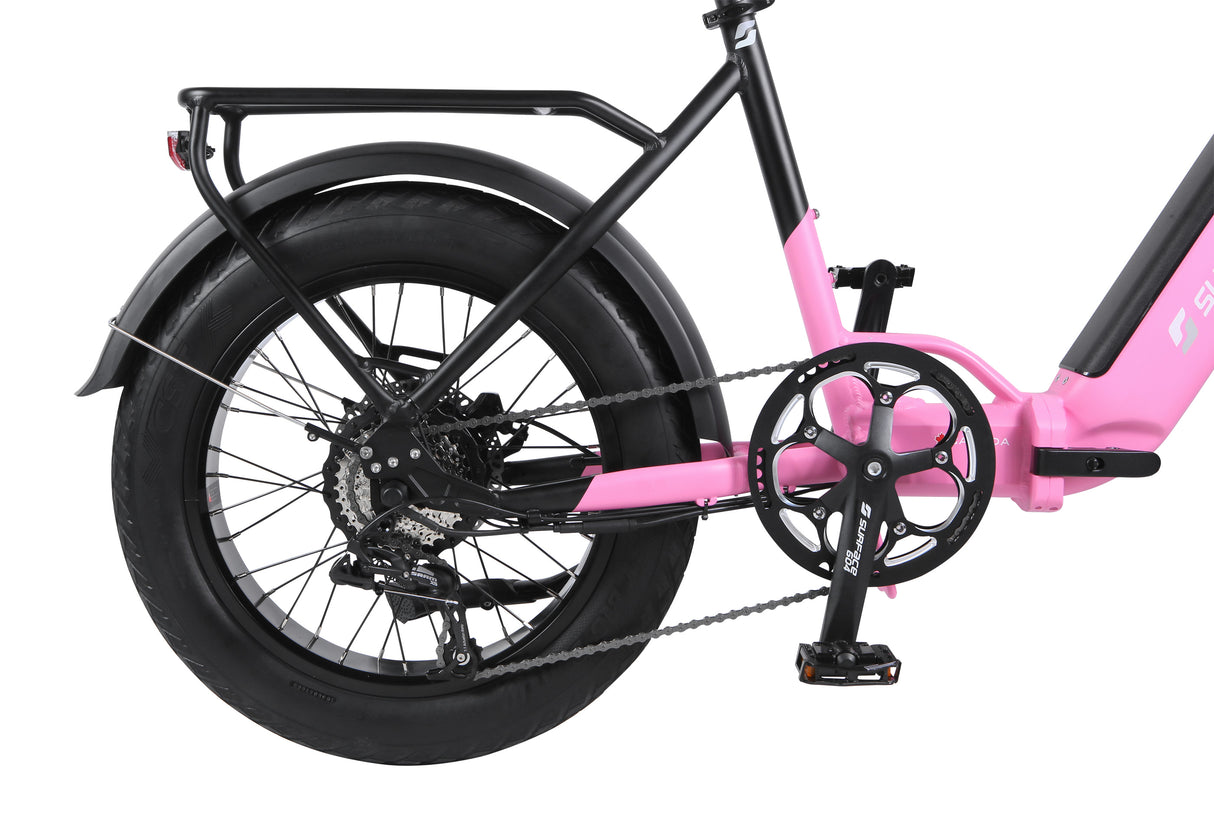

Derailleur Short Cage SRAM X5 Groupset - 9 Speed
Cassette X5 12-36T 44T Chainring
Grip PU Leather Wrapped, Full Length 145mm

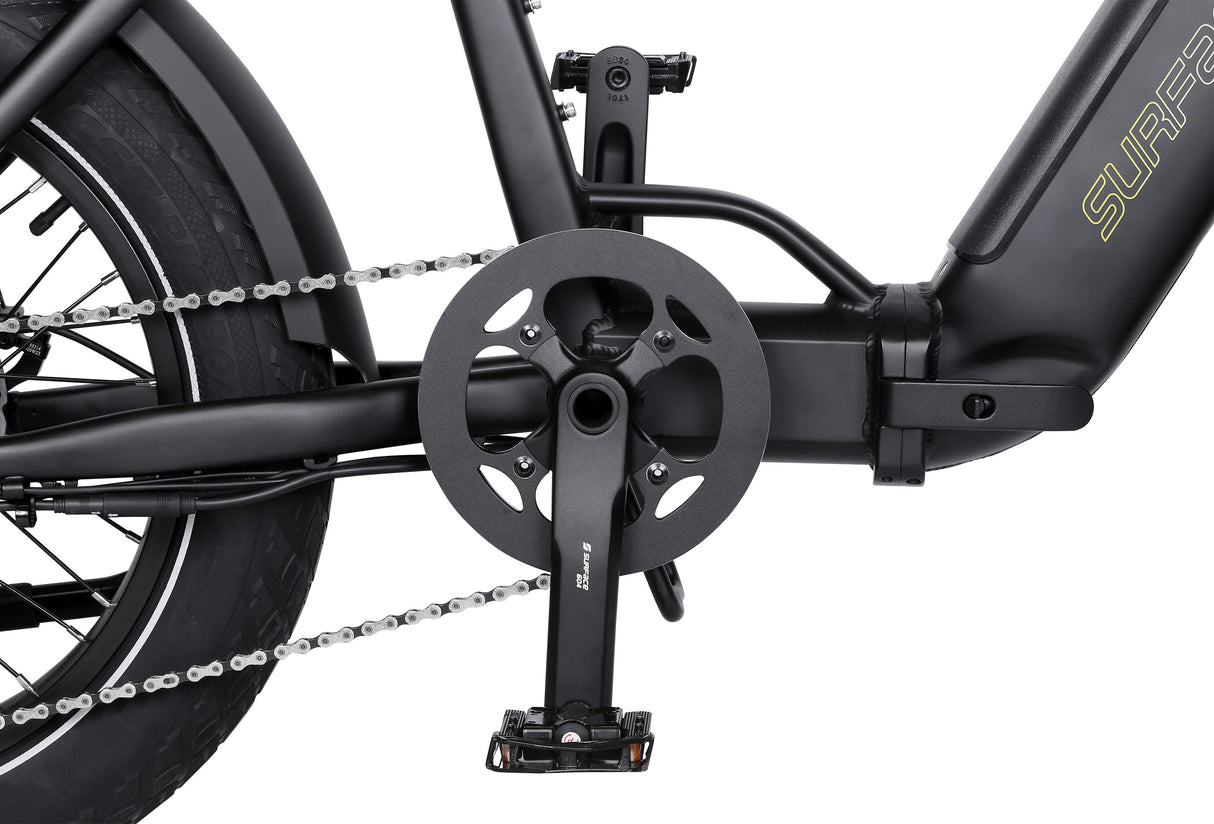

Crank Set SAMOX 38T Front Sprocket, 170mm Crank Arms
Seat Post Diameter: 30.4mm, Upgraded Featurs: CX Suspension Seat Post
Frame 6061 Aluminum Alloy
Tires CST BIG BOAT 20” X 4.00 Tires, All Purpose

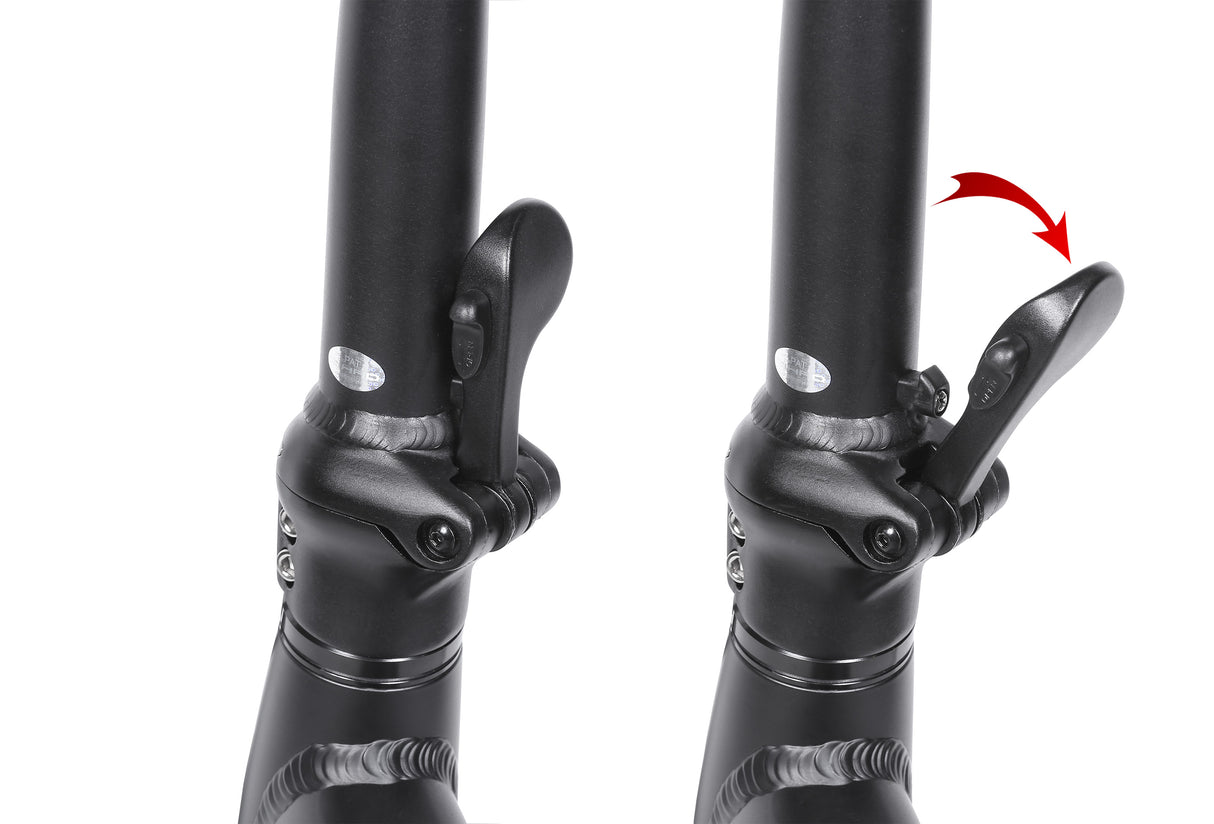

Handlebar Folding stem with handlebars
Sizes Adjustable to the Height of The Rider “One Size Fits All”

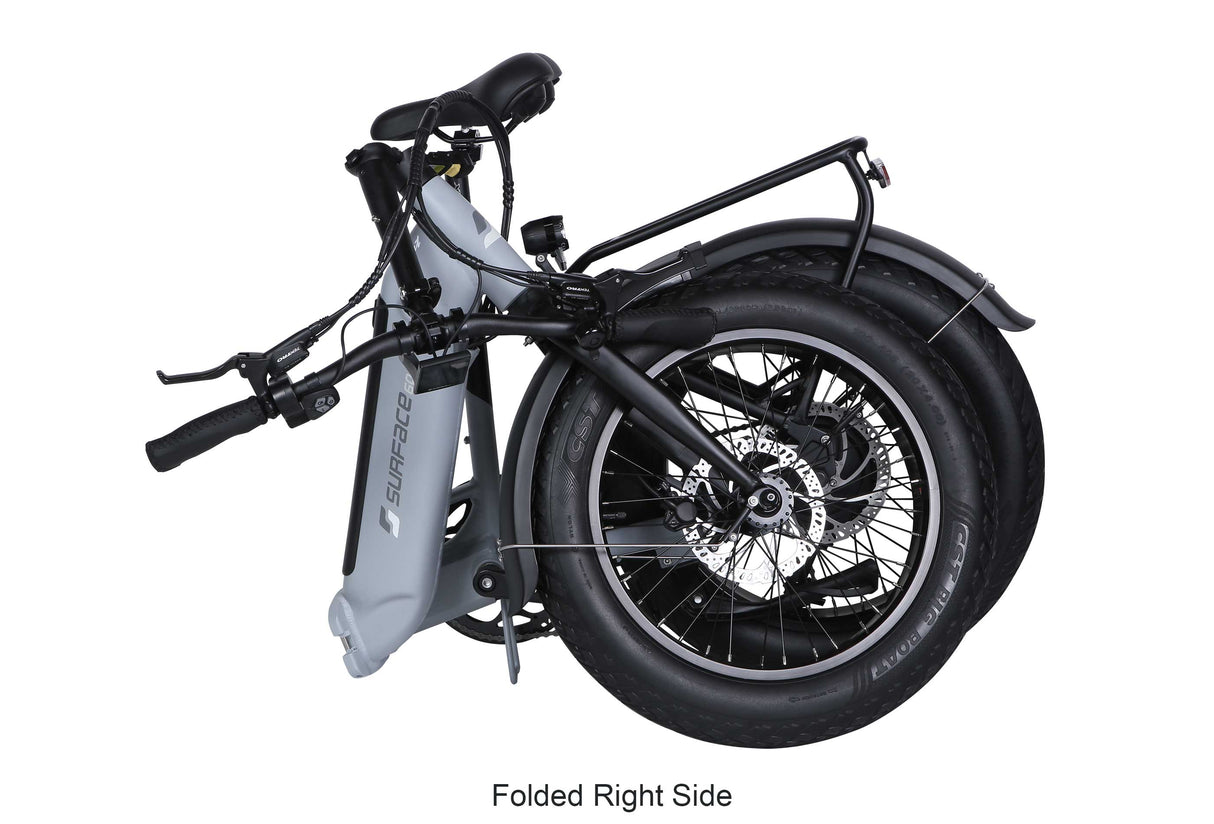

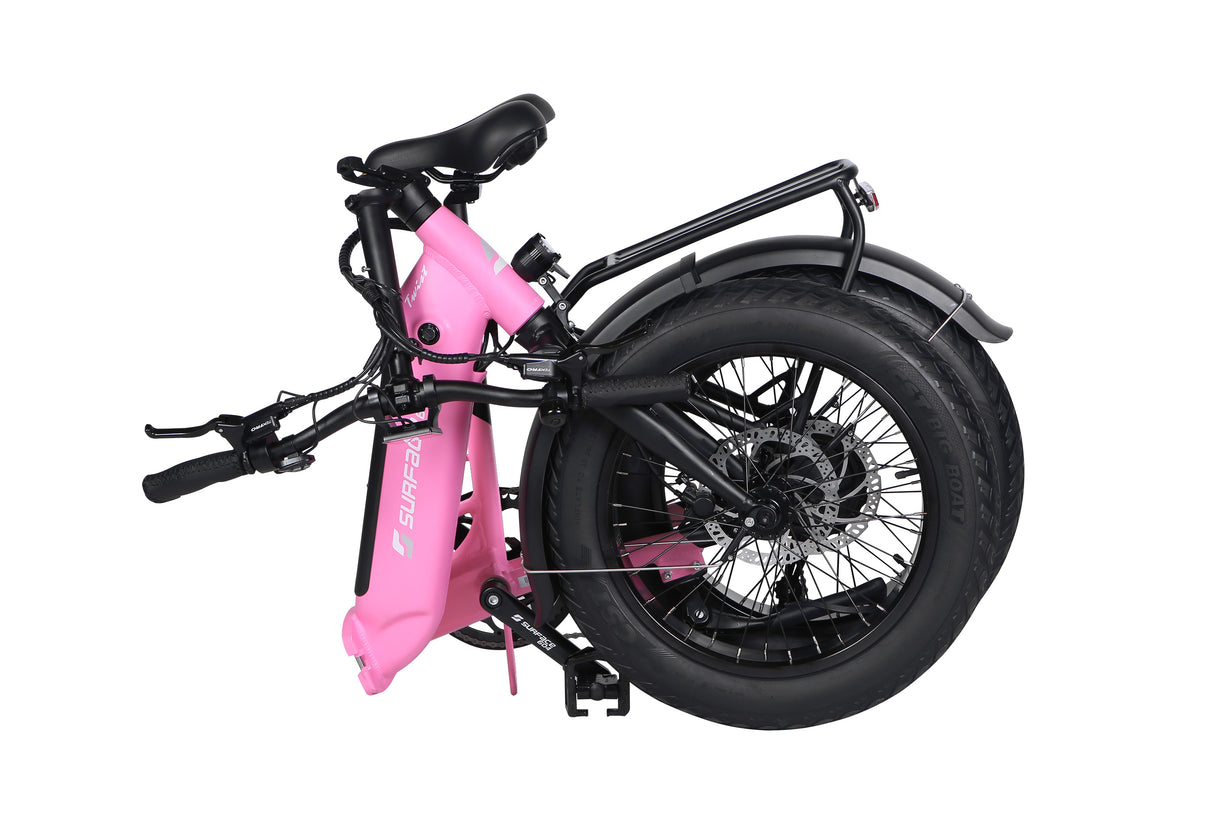

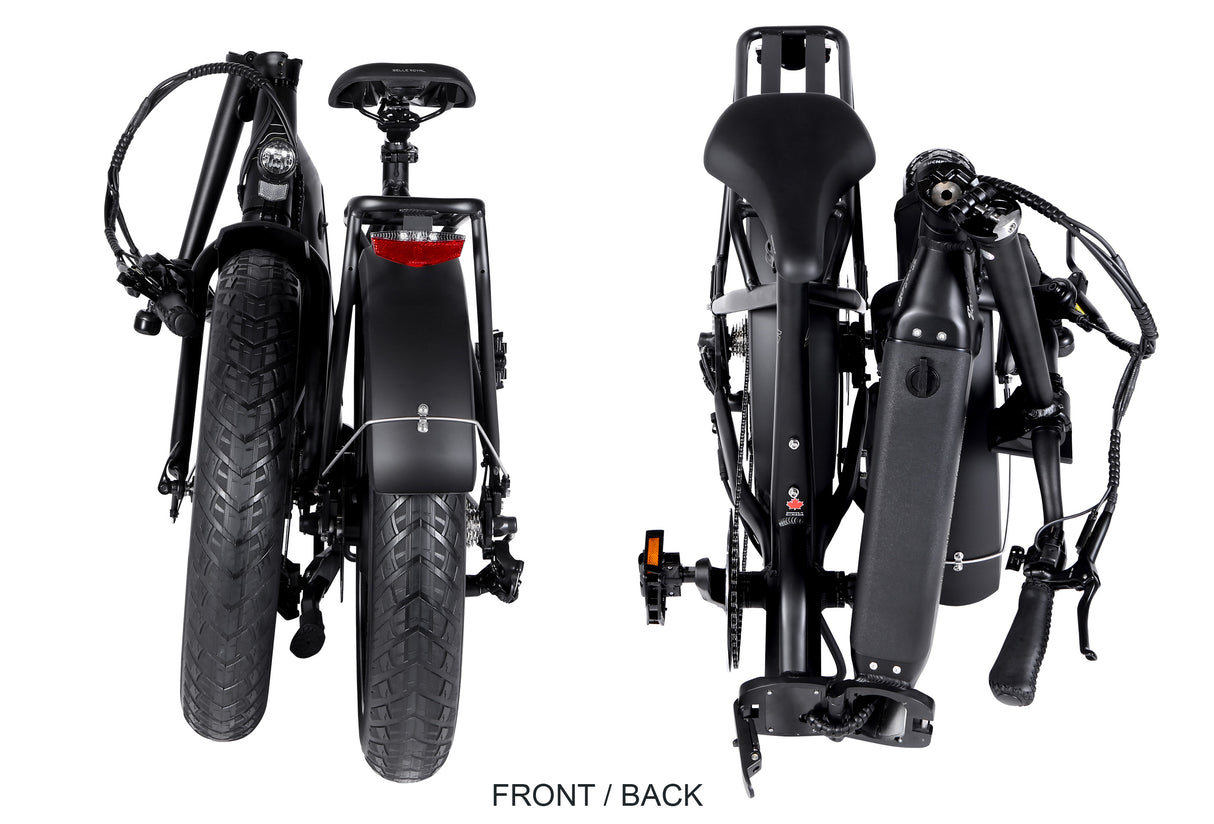

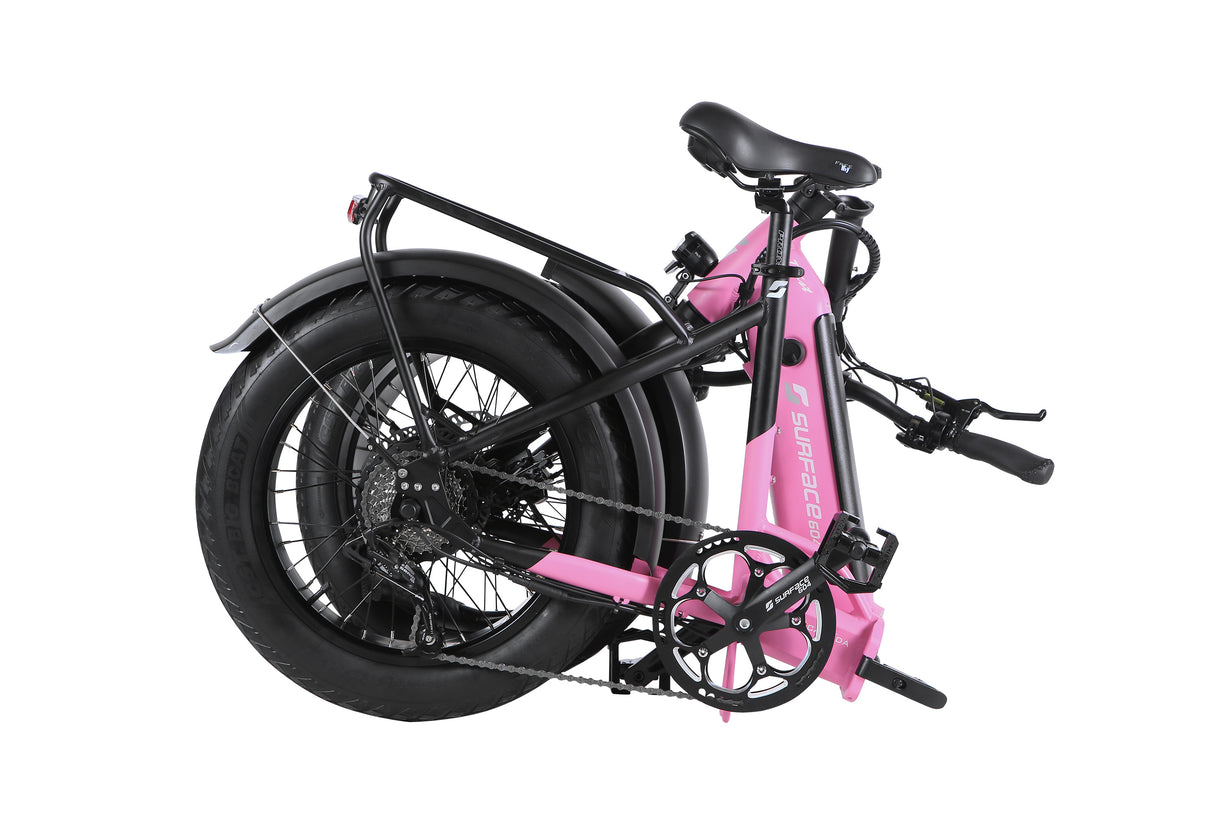

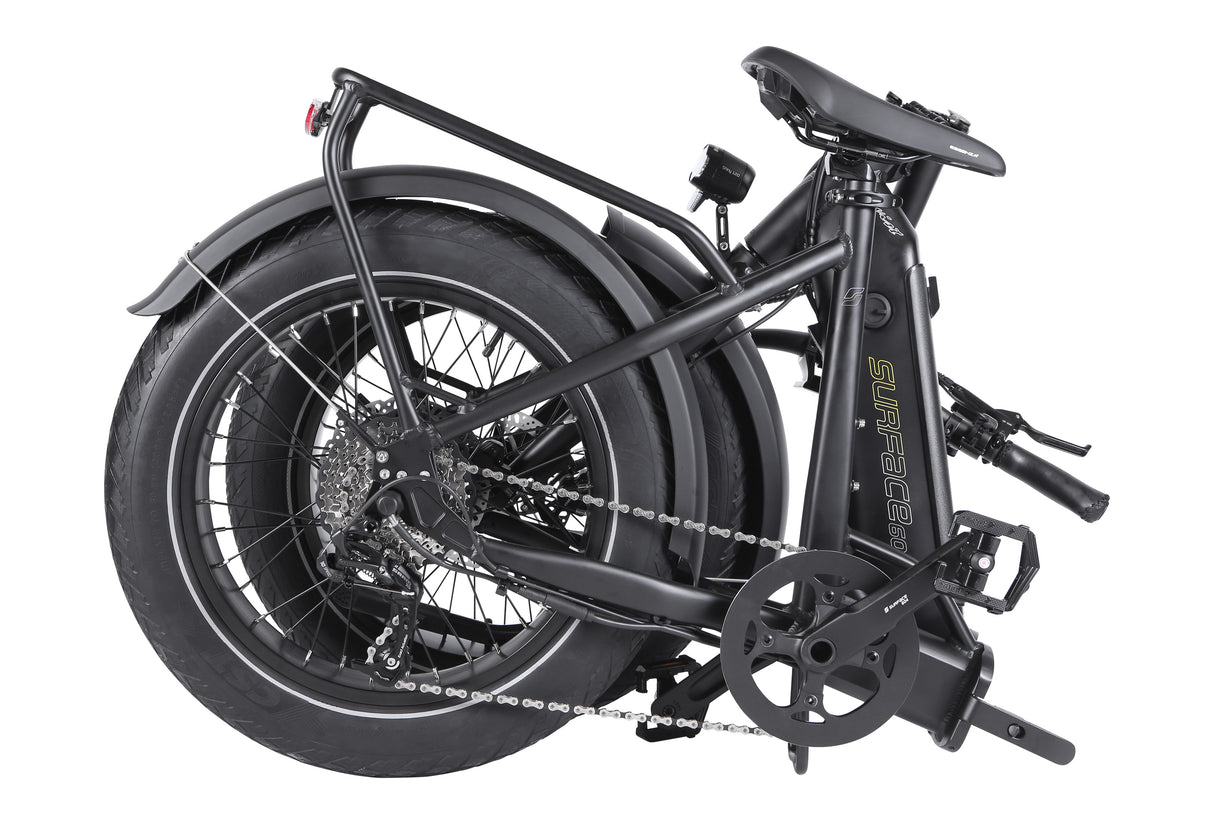

Dimensions Folded: L42 x H32 x W23 inches (106.68 x 81.28 x 58.42 cm)
Weight (Including Battery) 28.1 KG (62 LBS) and (Without Battery) 24.4 KG (53.8 LBS)
Max Capacity Details 250 lbs / 114 kg
Warranty & Shipping
Warranty

Product warranty depends on the brand that you are buying. Some brands offering substantial warranty periods. For example, Michael Blast, Surface604 will have 1 year warrarnty parts, battery and labour. T4B, SPAN offers 6months parts, battery and labour warrarnty.

We handle all warranty situations from our retail store location. To report warranty issue or simply schedule appointment with our tech please give us a call during our business hours.

Click here to read our return and exchange policy

Shipping

Every eBike and scooter minimum charge of $100 applied on shipping to major centers (like Vancouver, Calgary, Toronto, Montreal, Ottawa etc.) (unless picked up directly from the store). Beyond areas i.e. smaller cities - shipping charges will vary from $100-$500.

Bikes are shipped directly from our Calgary store via UPS, or Canada Post. Tracking number is available as soon as order is shipped. Large products such as electric scooters, anything over 150 LBS is shipped via LTL freight. Tracking is also available.

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

Applicable taxes will be charged i.e. BC 12%, AB 5%, SK 5%, MB 5%, ON 13%, QC 5%, NB 14%, NS 14%, NL 14%, PEI 14%.

eBikes Calgary DOES NOT ship to USA and Internationally. If you are from the US and looking to purchase T4B or Michael Blast eBikes please order from michaelblast.com web site.
