Surface604  |  SKU: 25-S604SHREDXS4814

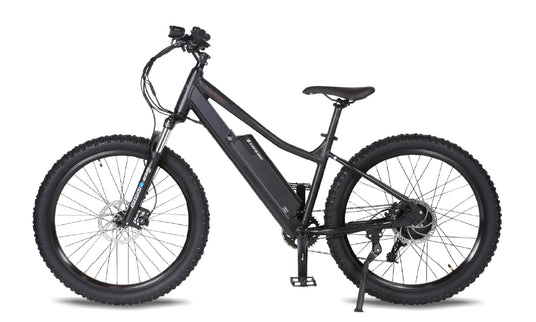

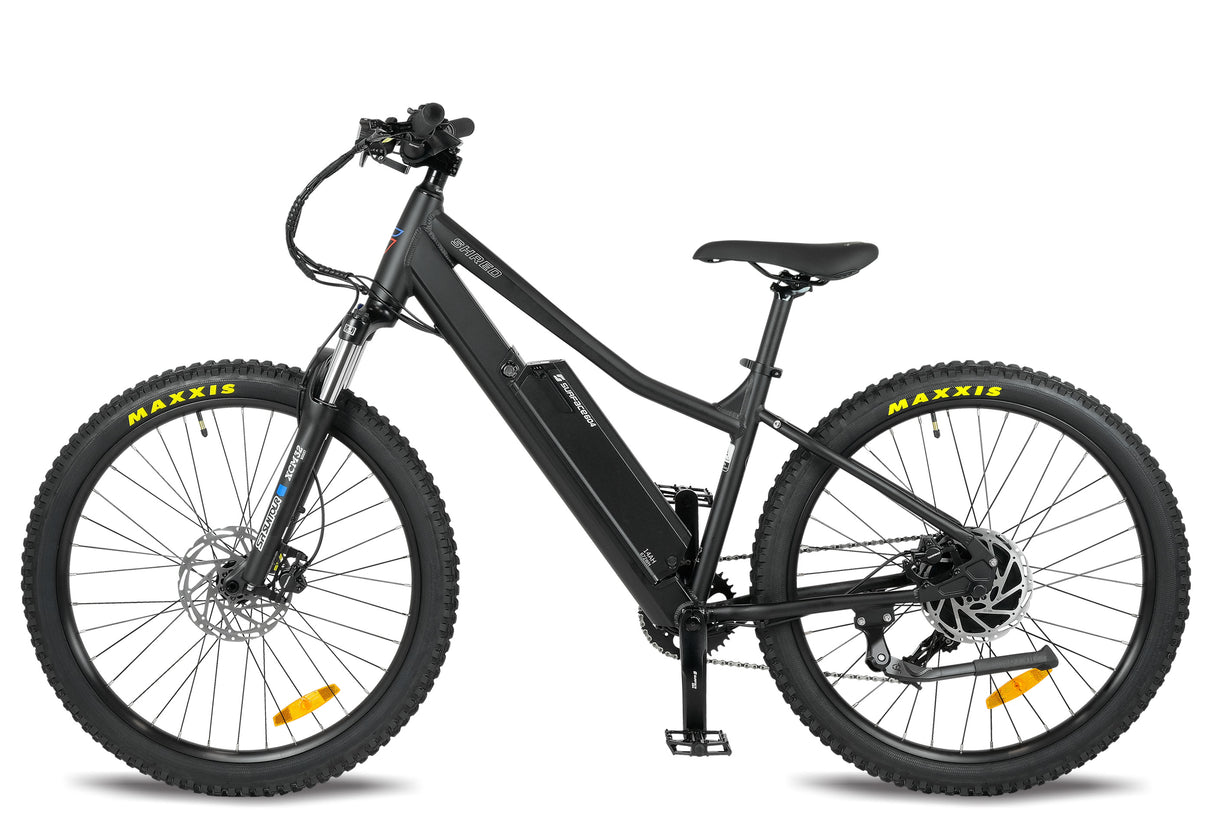

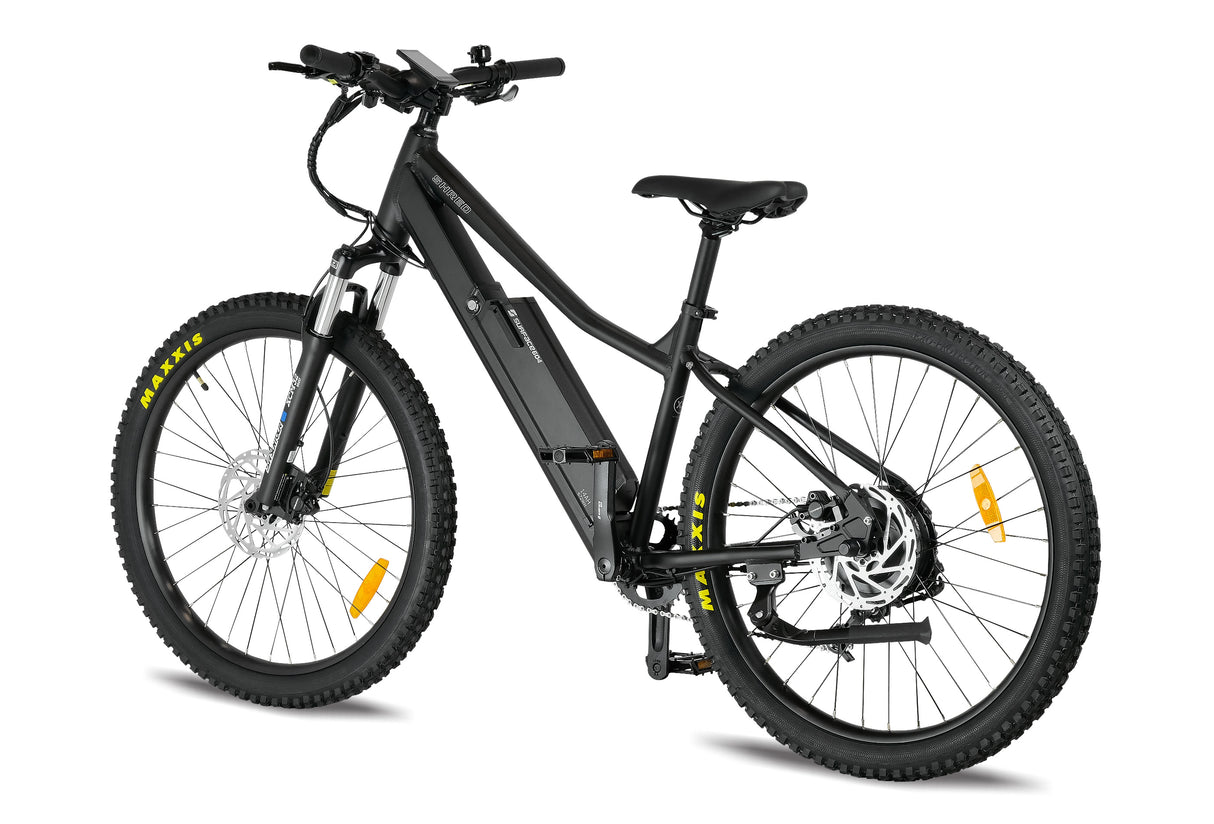

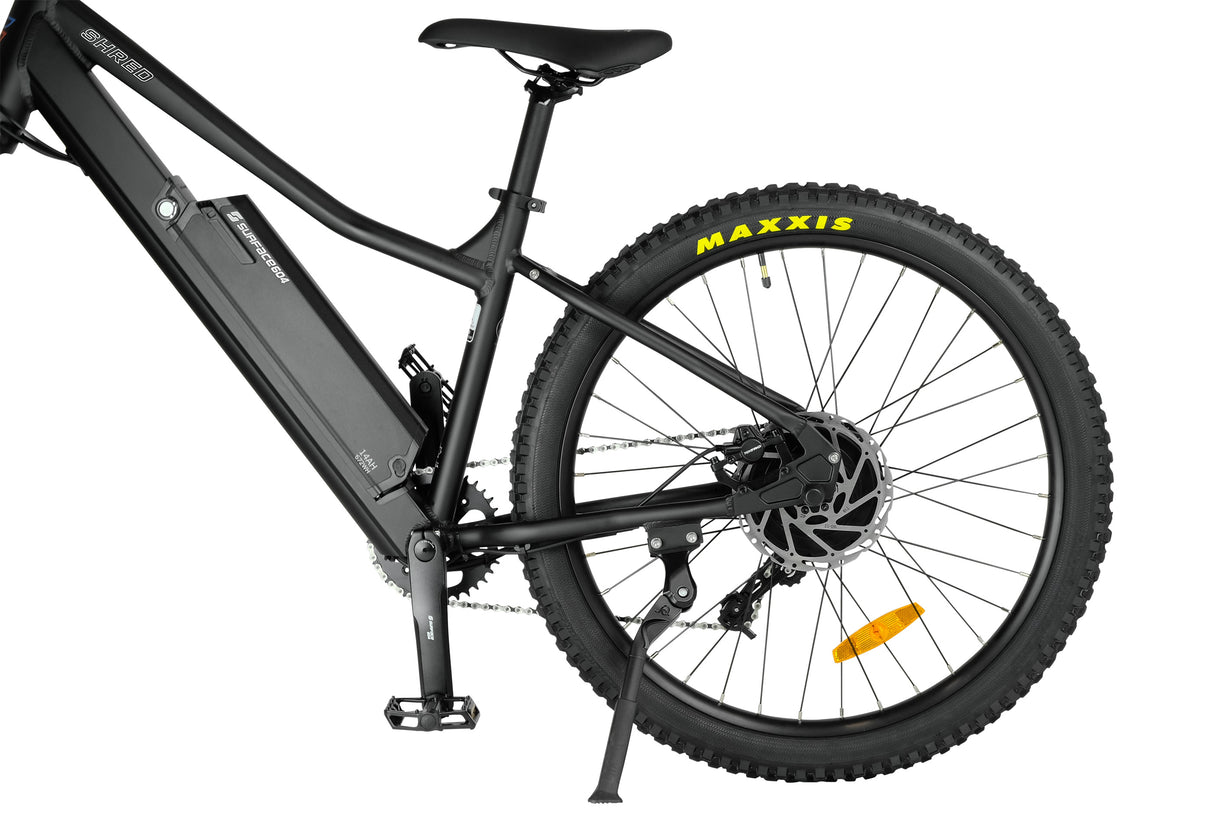

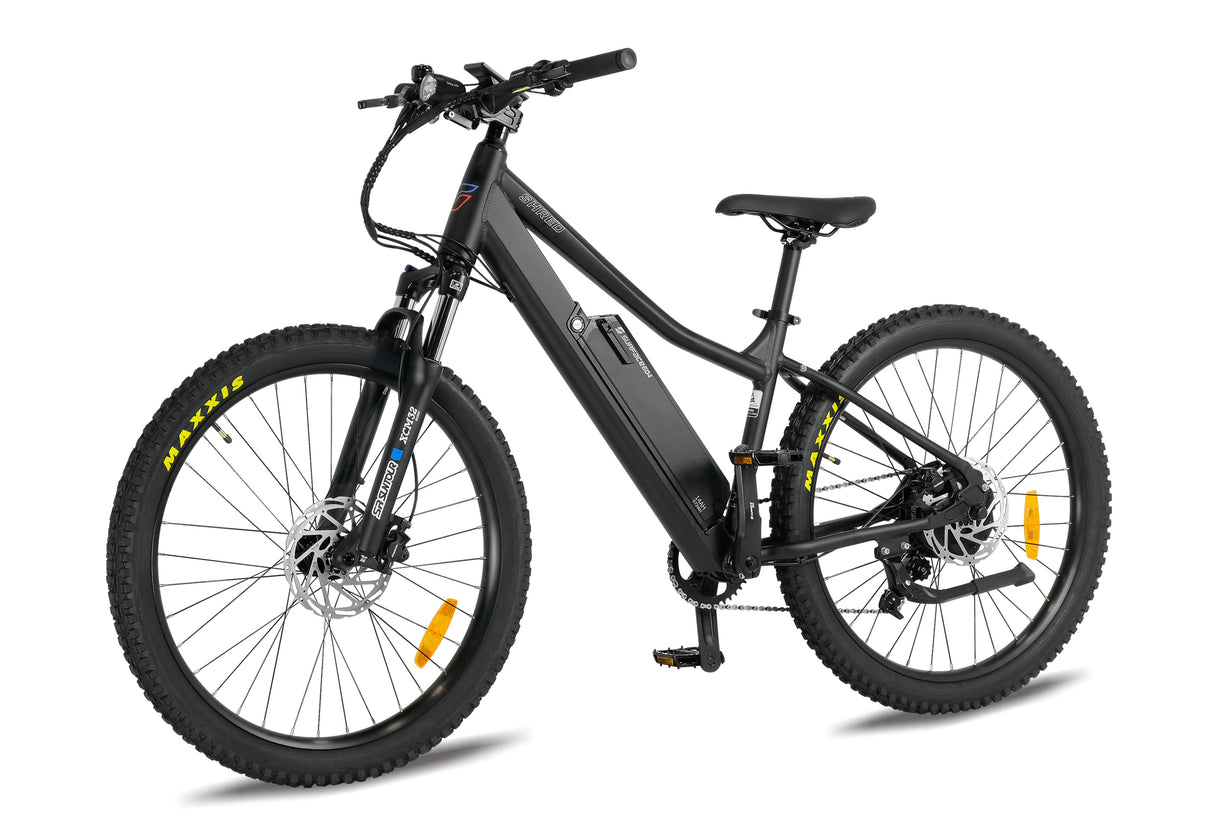

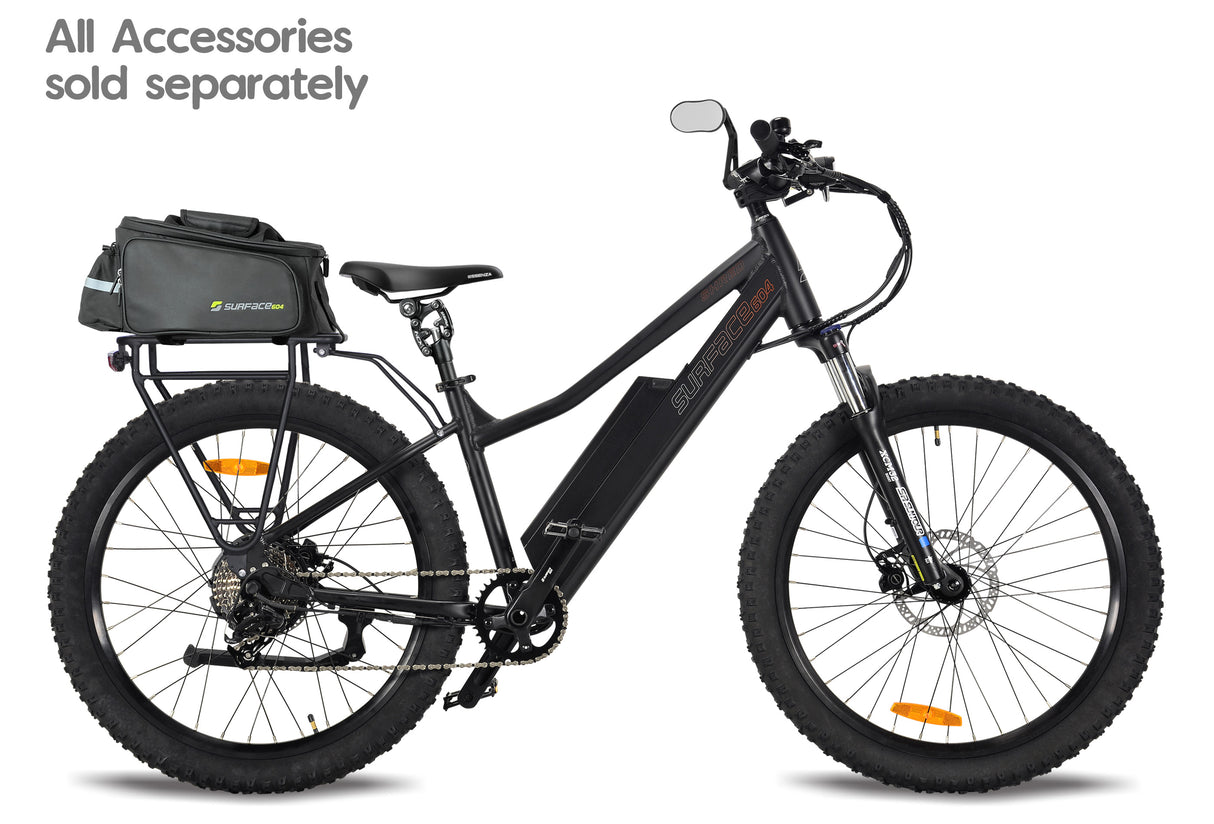

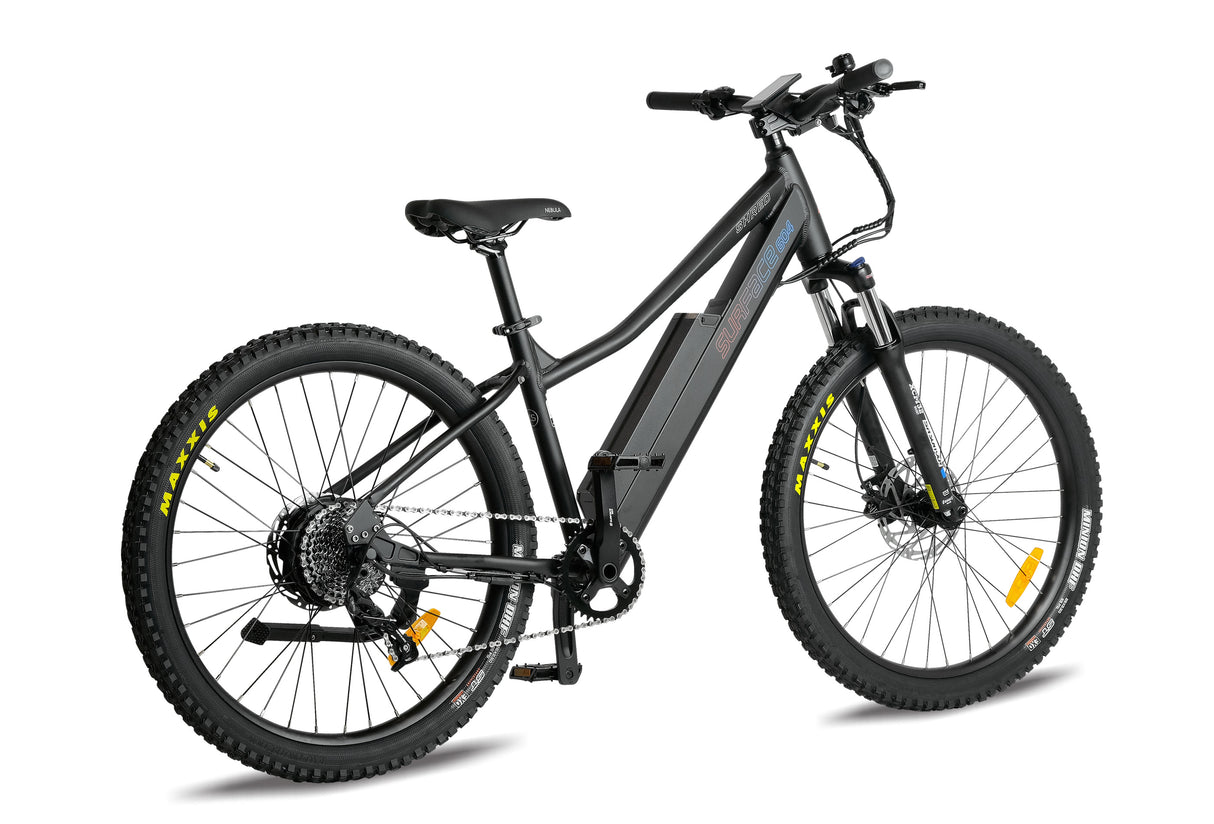

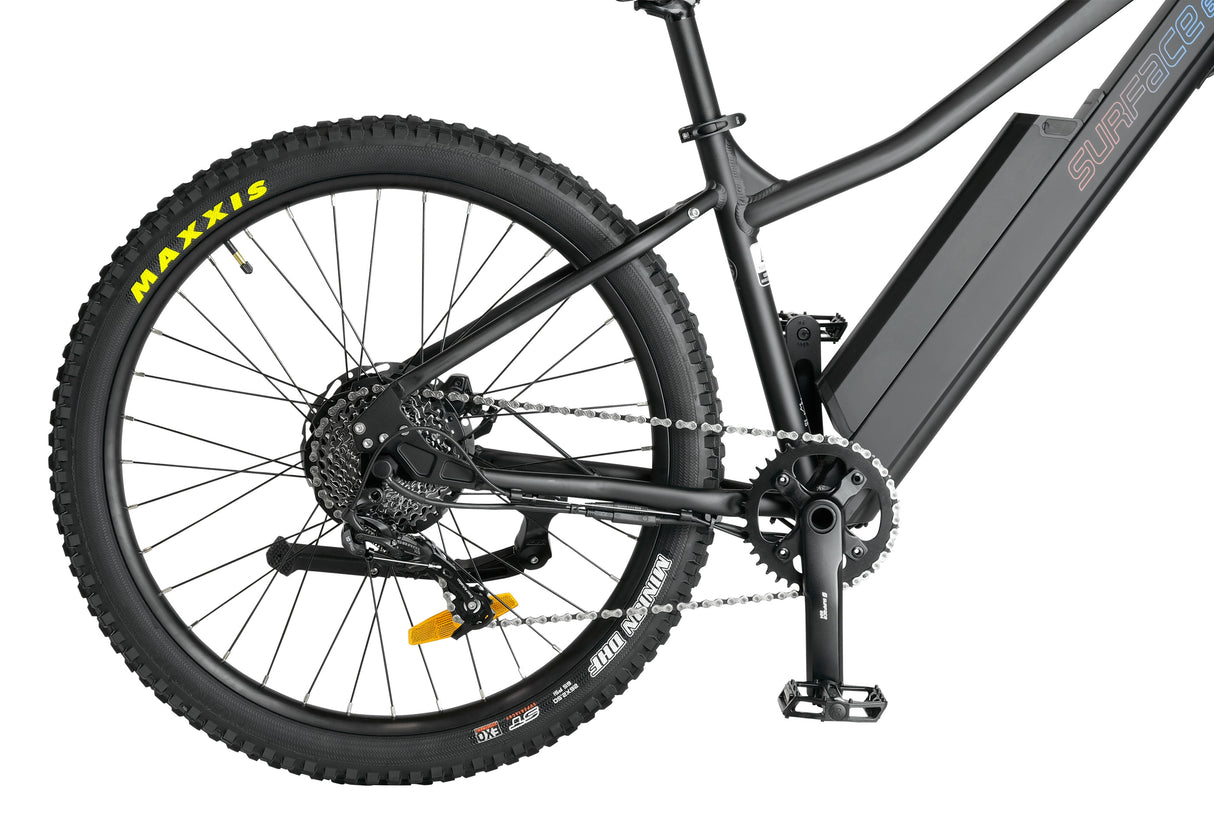

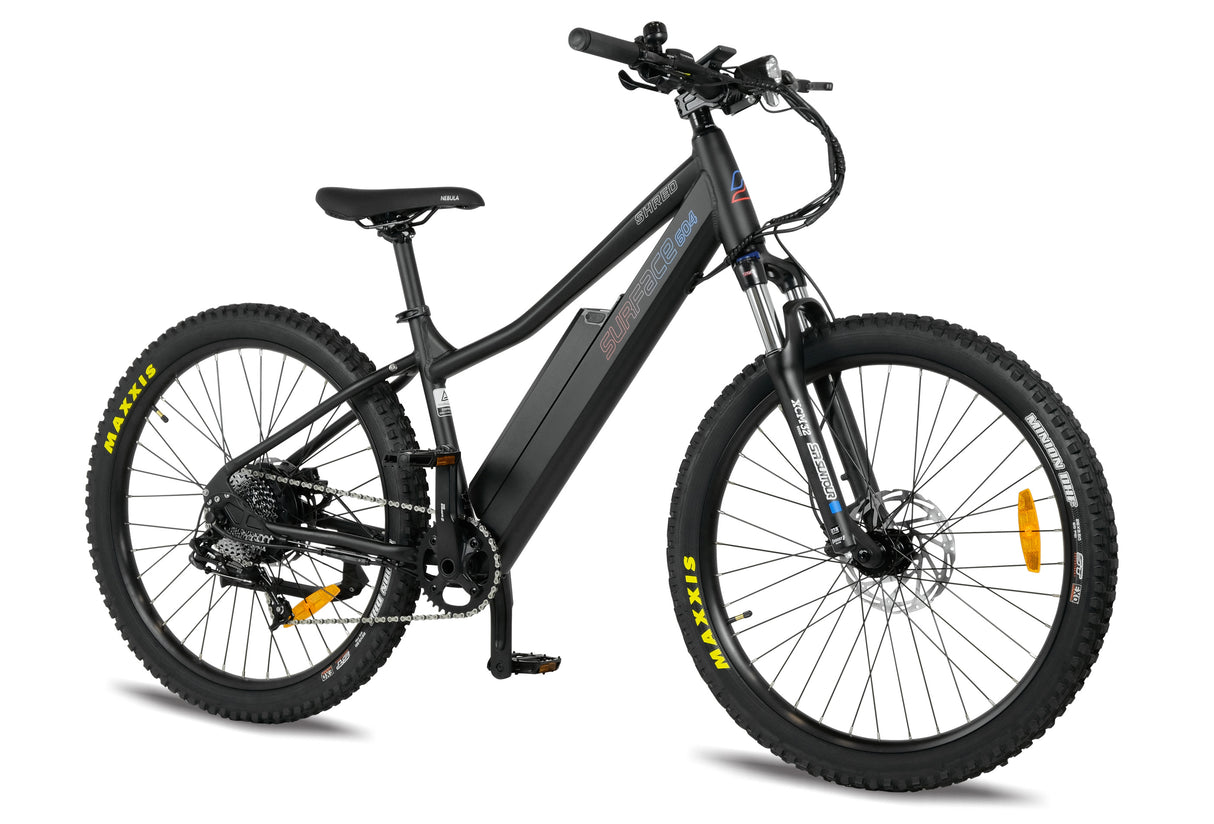

Surface 604 Baby Shred Hardtail eMTB

Available at our Calgary Location
$2,899.00 $3,499.00
Battery

Delivery and Shipping

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

32*
KM/H
TOP SPEED
72-105
KM
RANGE
285
LBS
CAPACITY

The Surface 604 Shred XS is a compact, trail-savvy hardtail designed for younger riders or those needeing a smaller fit. Its nimble 26″-wheeled frame is powered by a robust 500-watt (peaks at 750-watts) Bafang hub motor and a 48V battery (14Ah standard, 20Ah optional), offering around 72 km to 105 km of range depending on battery choice.

With torque-sensing pedal assist, hydraulic disc brakes, and responsive suspension, the Shred XS brings mountain bike performance in a more accessible, lightweight package.

Video



Key Features

  • Motor & Battery: 500-watt (peaks at 750-watts) Bafang geared hub motor with torque-sensing pedal assist and thumb throttle; 48V 14Ah (672 Wh) Samsung battery (upgradeable to 48V 20Ah / 960Wh)
  • Top Speed & Range: Up to ~32 km/h (20 mph); range from ~72 km (45 mi) to ~105 km (65 mi) depending on battery
  • Braking & Gearing: Tektro hydraulic disc brakes with motor inhibitors; SRAM X5 10-speed drivetrain

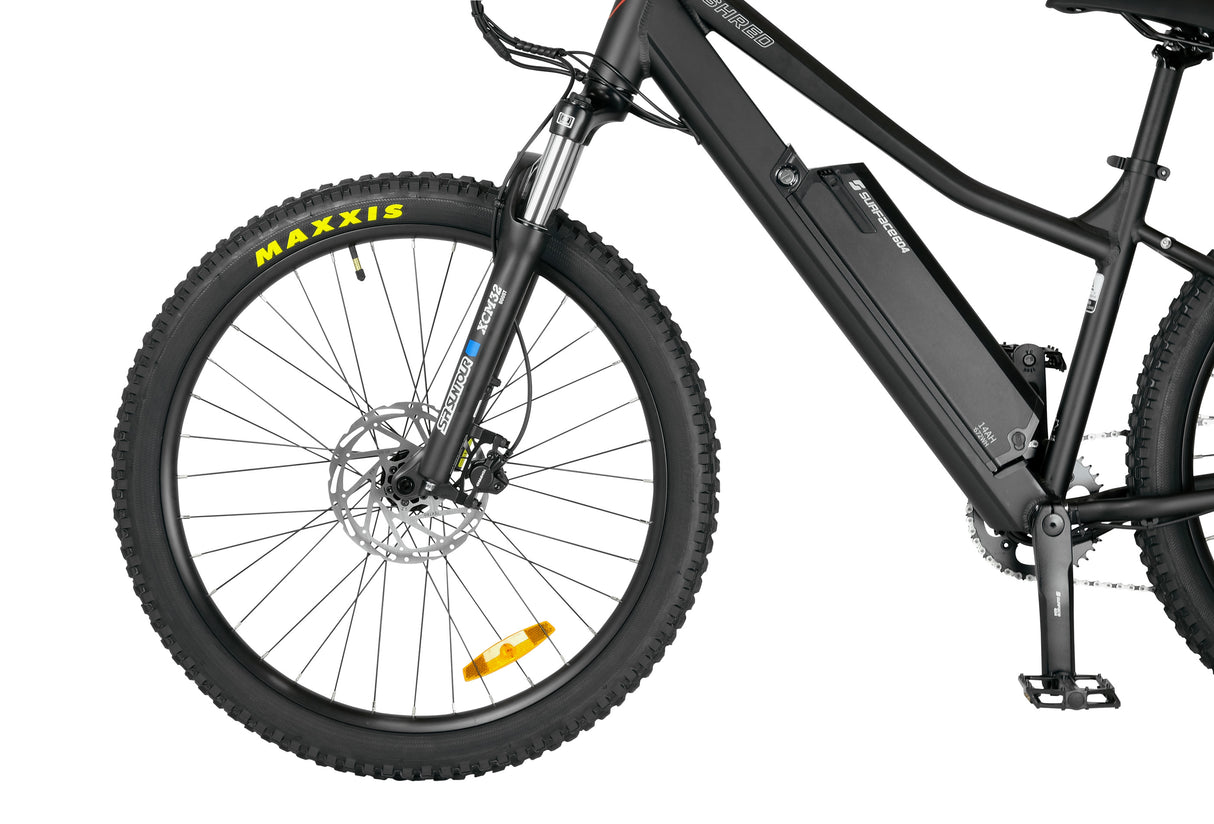

  • Comfort & Traction: Maxxis Minion DHF 26″ × 2.5″ tires with EXO casing; SR Suntour XCM32 spring suspension fork (~110 mm travel)

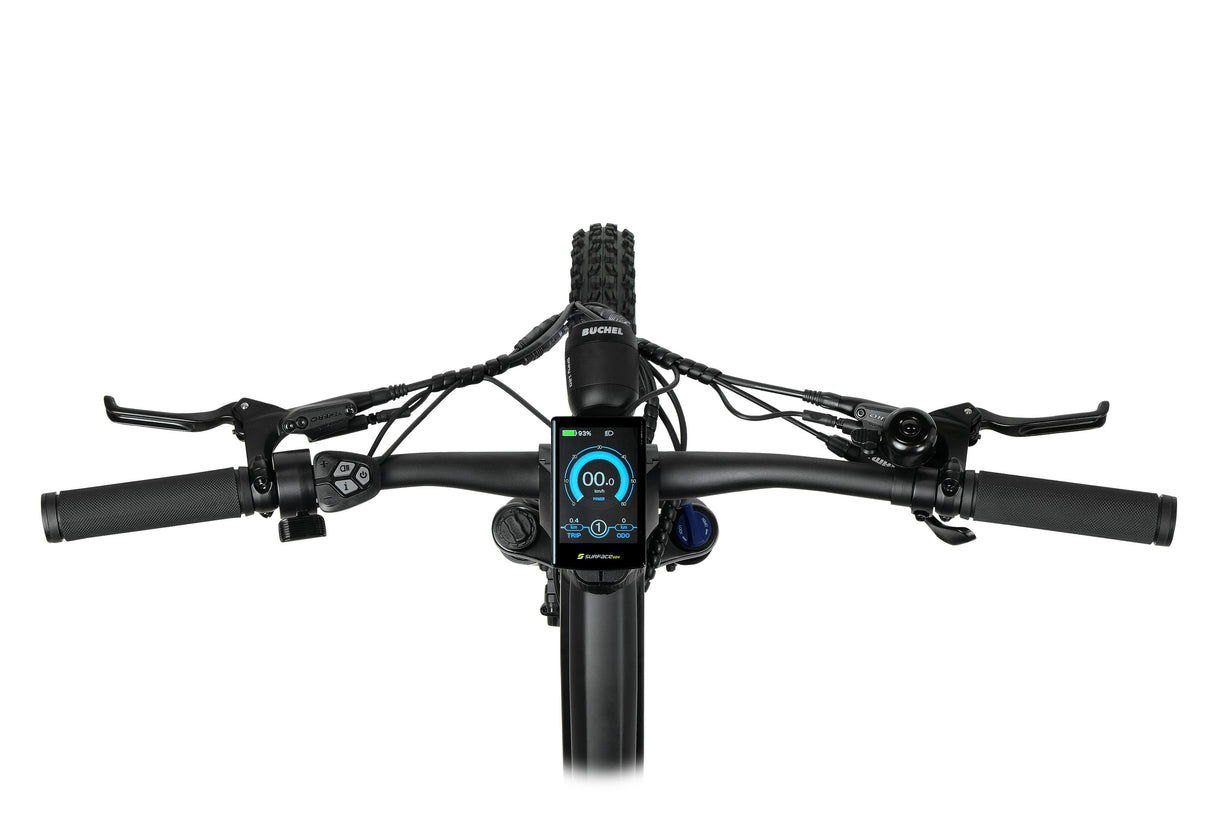

  • Controls & Display: 3.5″ Surface 604 color LCD display with USB port; torque-sensing assist and thumb-activated throttle; pre-wired for rear brake light
  • Extras for Everyday Ride: Lightweight aluminum frame (~59.5 lb with 20 Ah battery); boost hub spacing and thru-axle front for sturdier handling; adjustable kickstand and internal cable routing
  • Warranty & Build: Strong 6061 aluminum construction; carries a 1-year warranty on parts and electronics and a 3-year warranty on the frame

Let's Get Technical

Battery

Included: 48V 14Ah / 672W, Samsung lithium-ion 18650 cells, Upgrade option: 48V 20Ah / 960Wh, Samsung lithium-ion 21700 cells

Controller

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

Display

SURFACE604 Color LCD Display with USB Jack, Bigger display: 3.5" for 2025

Charger

3-4 Hours for a Full Charge from Empty

Throttle

Thumb Push Activated Throttle

Lights

BÜCHEL "SHINY" 120 LED Headlight, Pre-Wired To Connect Rear Stop Light

Detailed Specs
Motor Details eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
Brakes TEKTRO E500, MTB Specific Hydraulic Disc Brakes, Post Mount, with Motor Inhibitors
Throttle Thumb Push Activated Throttle
Battery Included: 48V 14Ah / 672W, Samsung lithium-ion 18650 cells, Upgrade option: 48V 20Ah / 960Wh, Samsung lithium-ion 21700 cells
Range Details Up to 45mi (72km) with a 48V14Ah Battery, Up to 65mi (105km) with a 48V20Ah Battery
Pedal Assist Drop Out Torque Sensing Pedal Assist with a Throttle
Lights BÜCHEL "SHINY" 120 LED Headlight, Pre-Wired To Connect Rear Stop Light
Display SURFACE604 Color LCD Display with USB Jack, Bigger display: 3.5" for 2025
Controller SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Charger 3-4 Hours for a Full Charge from Empty
Cables Internal Cable Routing
Drive Type Hub Drive
Fork SR Suntour XCM32, Suspension Air Fork (110mm Axle Thru Hub)
Shift Levers SRAM X5 Trigger Shift
Rotors 180mm Front/Rear x 2.34mm Thick
Pedals WELLGO Platform, with Die Casting Body
Chain KMC 10-Speed
Derailleur SRAM X5 10-Speed 1-Piece Forged CNC with 2 Sealed Bearings
Cassette SRAM 11-34T
Crank Set SAMOX 38T Front Sprocket, 170mm Crank Arms
Seat Selle Royal Gel Saddle "Essenza Plus", with elastomer (Relaxed), suitable for City/Tour use. FLEXITE shell features a unique indented structure, adding superb flexibility and shock absorption. Adjustable up to 9 degrees. SEAT POST DIAMETER: 30.4mm
Rims Aluminum Alloy Double Wall Rim, 26"x13Gx36H
Frame 6061 Aluminum Alloy
Tires Maxxis Minion DHF 26" x 2.50 ST Supertacky EXO Protection
Handlebar PROMAX Aluminum, 30mm Rise With 9° Backsweep, 720mm Wide
Sizes XS 16”
Weight 27 KG/59.5 lbs (20AH), 22 KG/48.5 lbs without battery
