Surface604  |  SKU: 24-S604TRIK-GRY

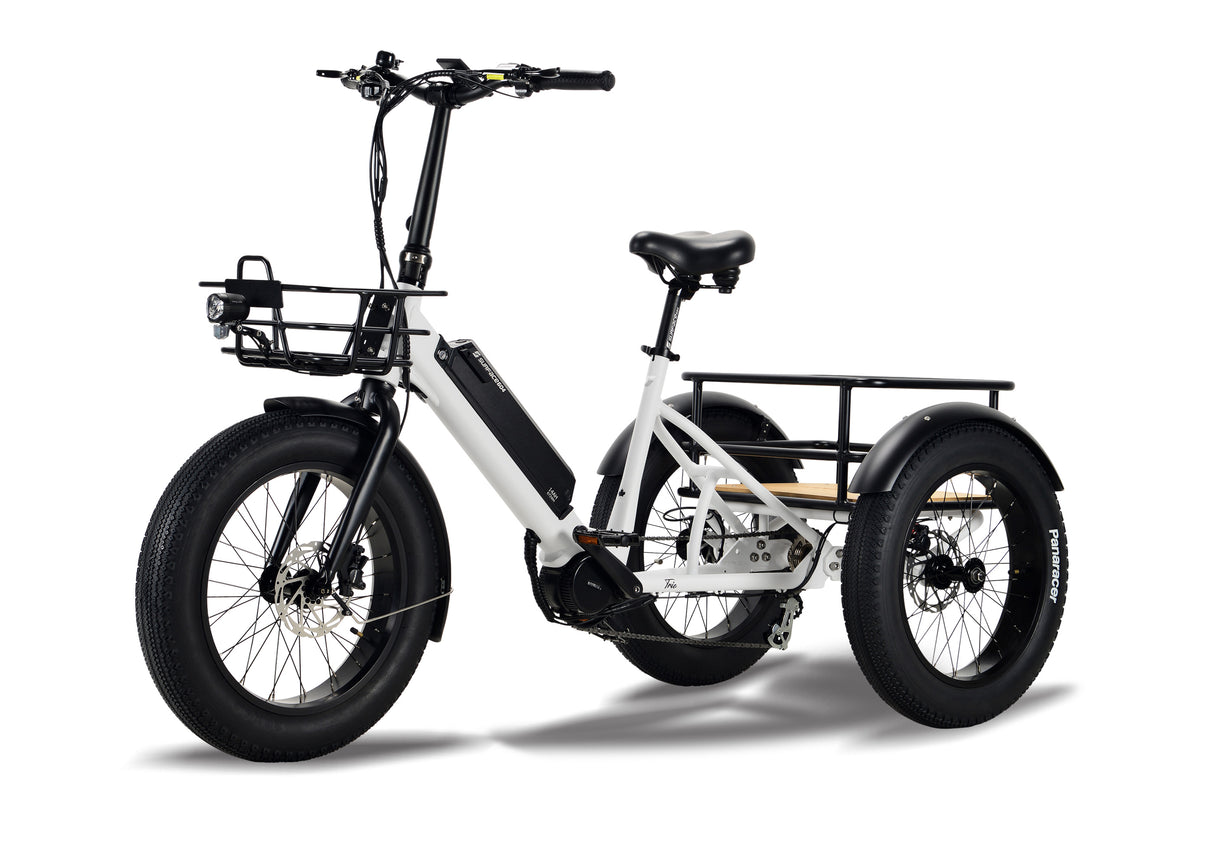

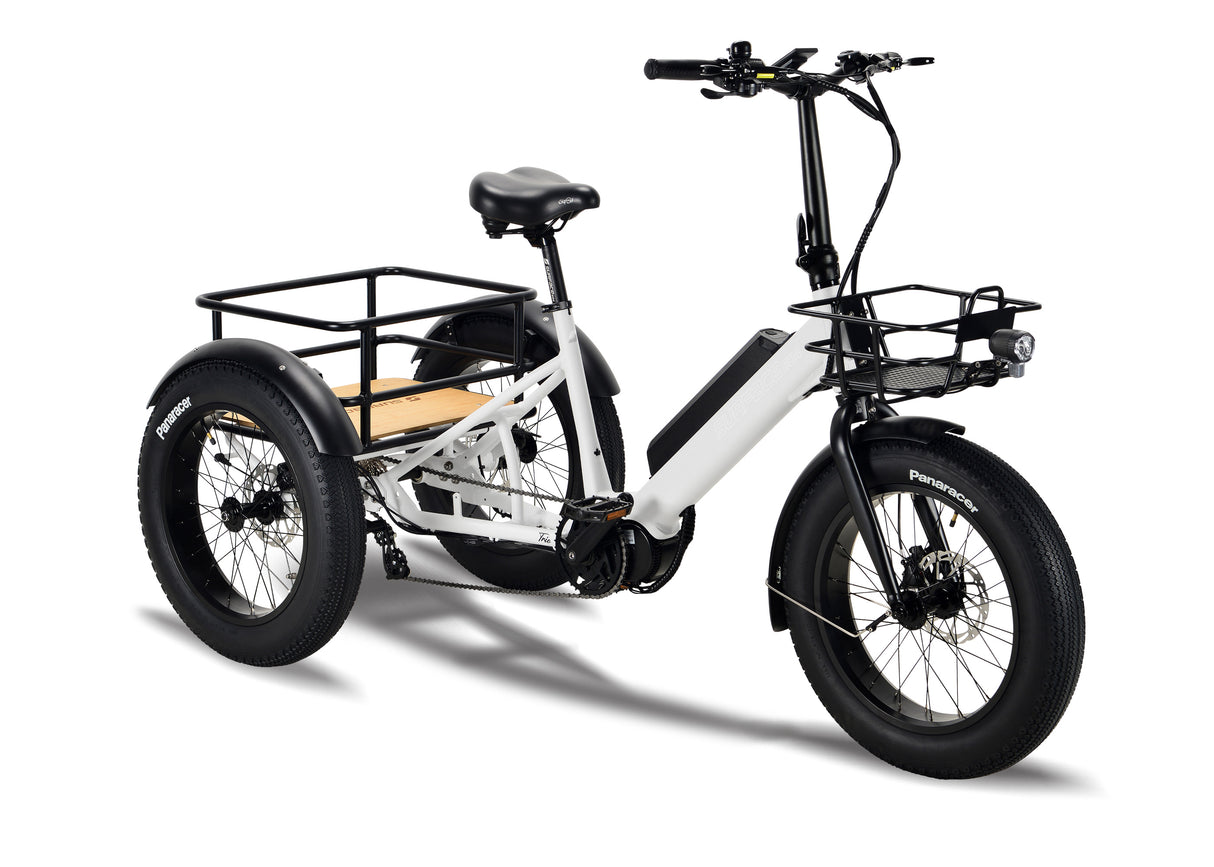

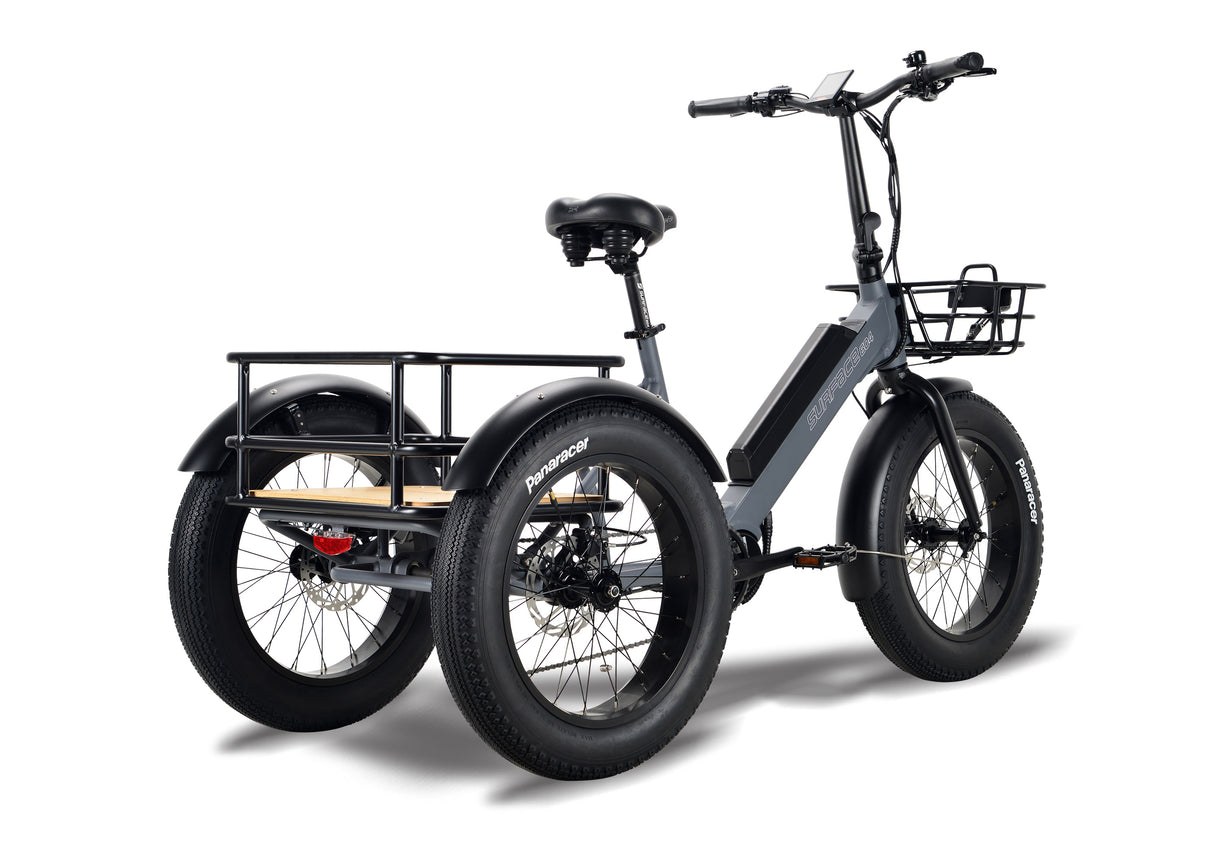

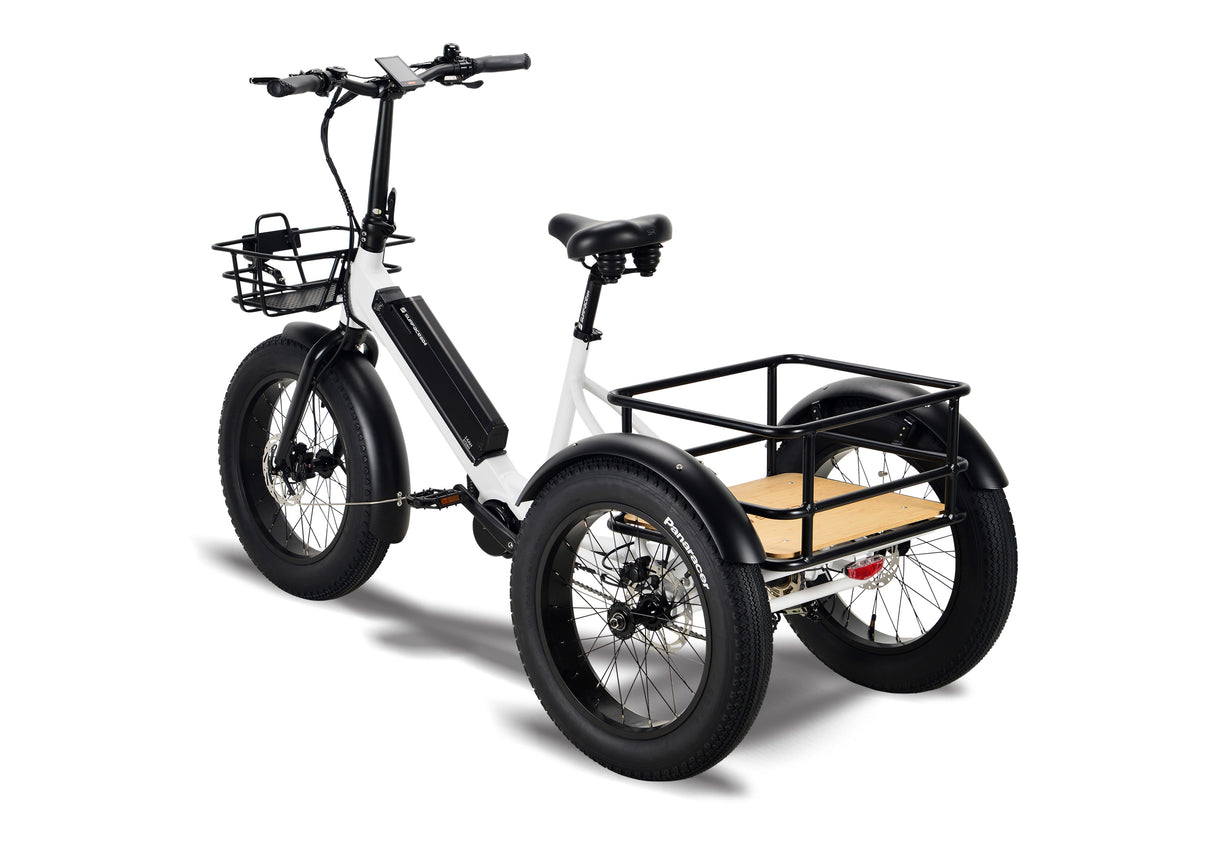

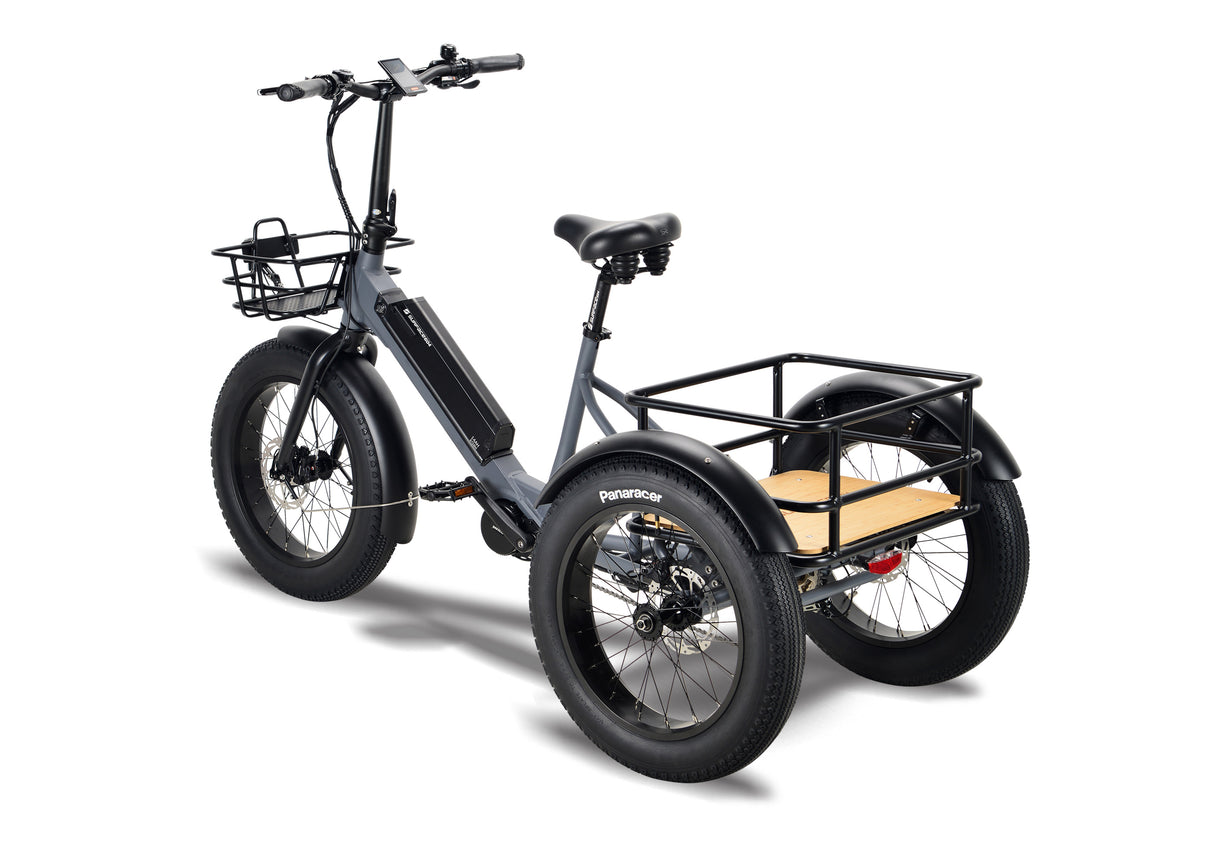

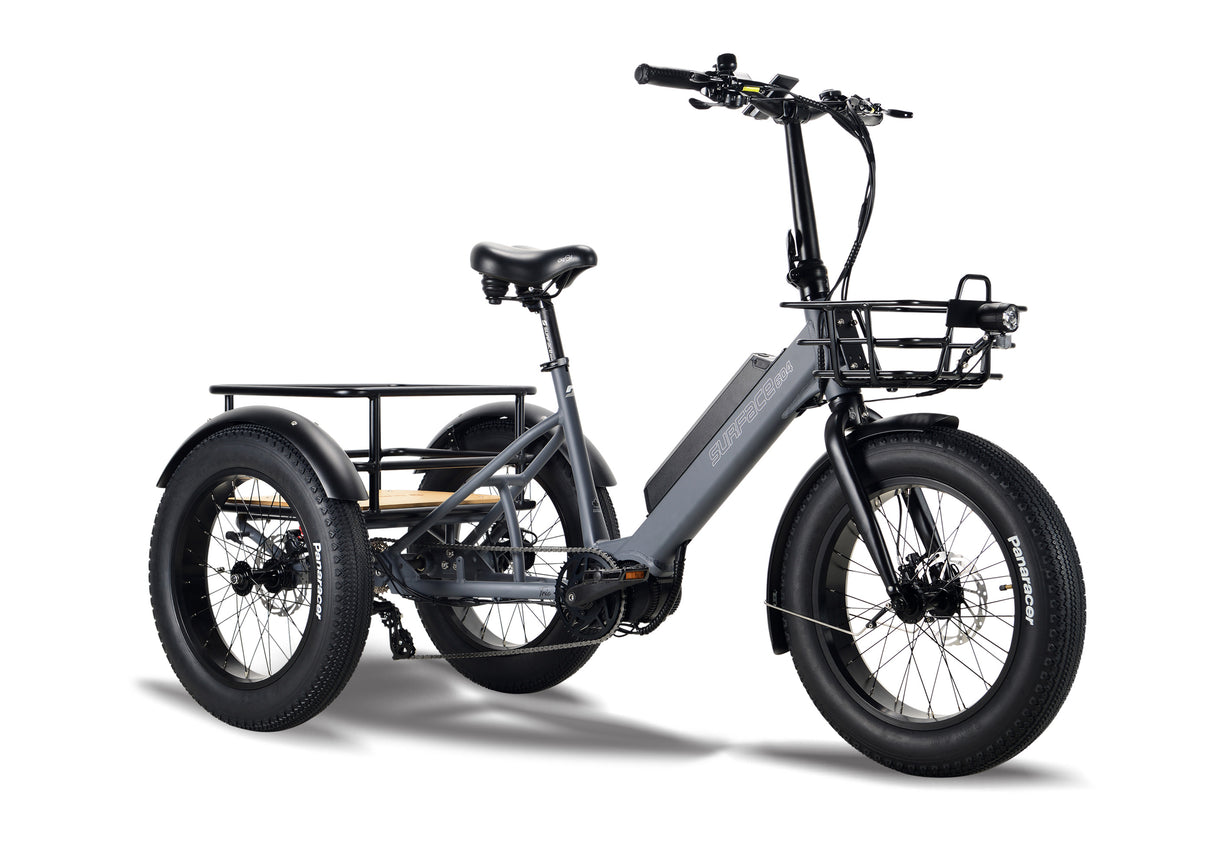

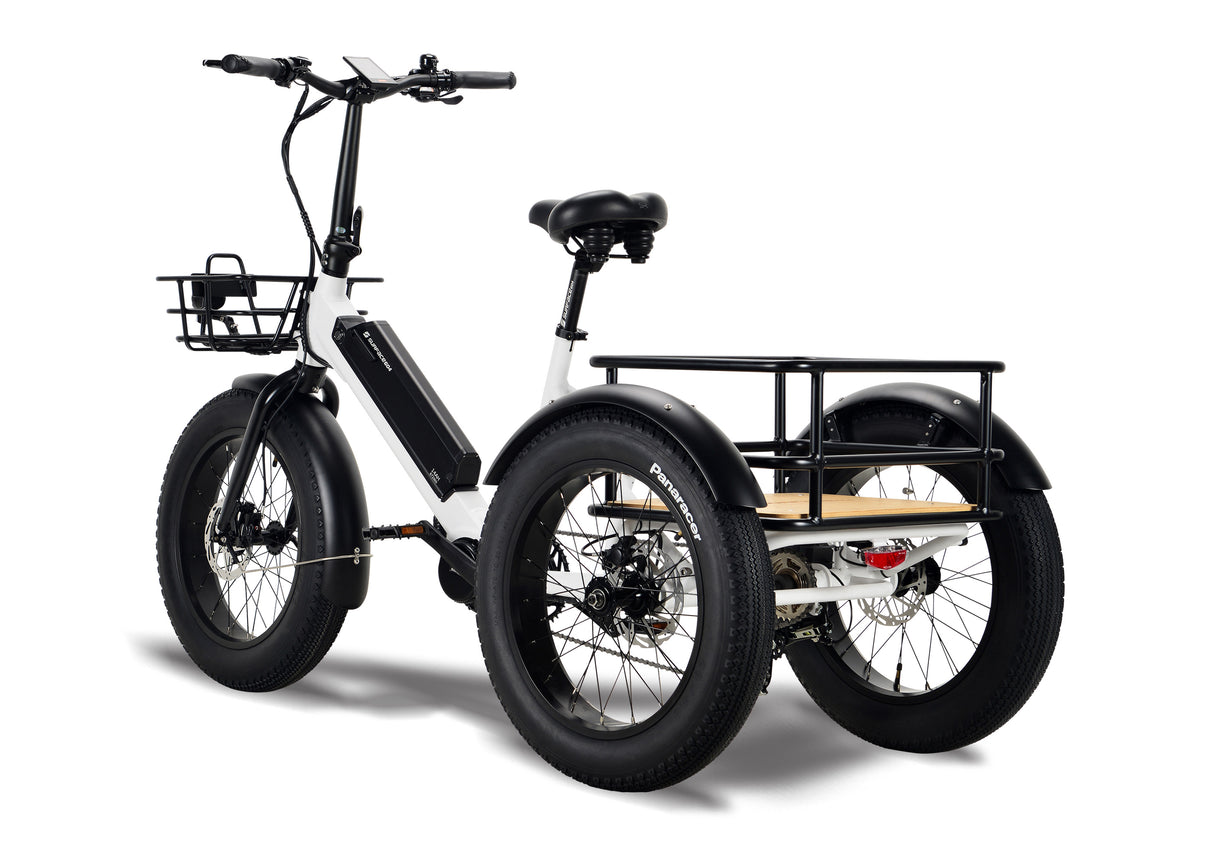

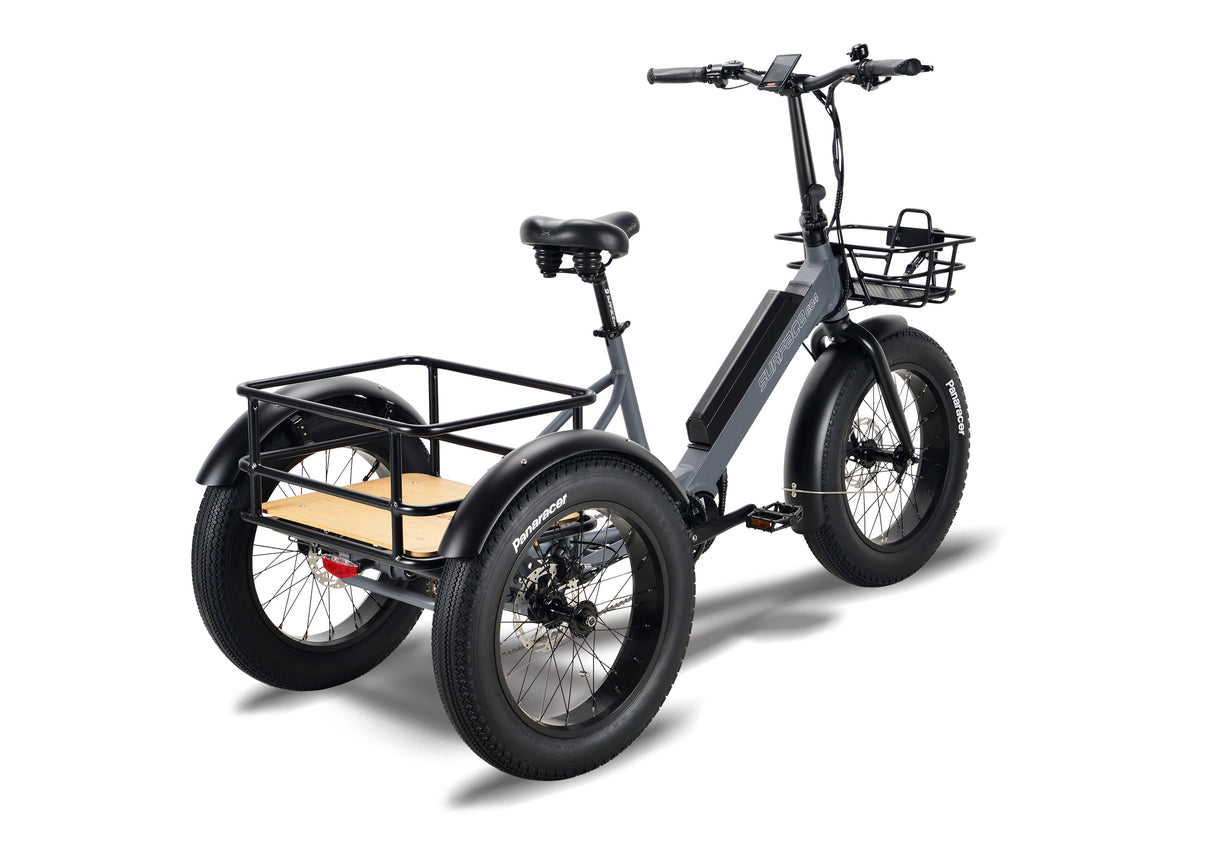

Surface 604 Trio Folding eTrike w/ 500-Watt Mid-Drive

Available at our Calgary Location
$4,499.00
Color: grey2

Delivery and Shipping

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

32
KM/H
TOP SPEED
105
KM
RANGE
450
LBS
CAPACITY

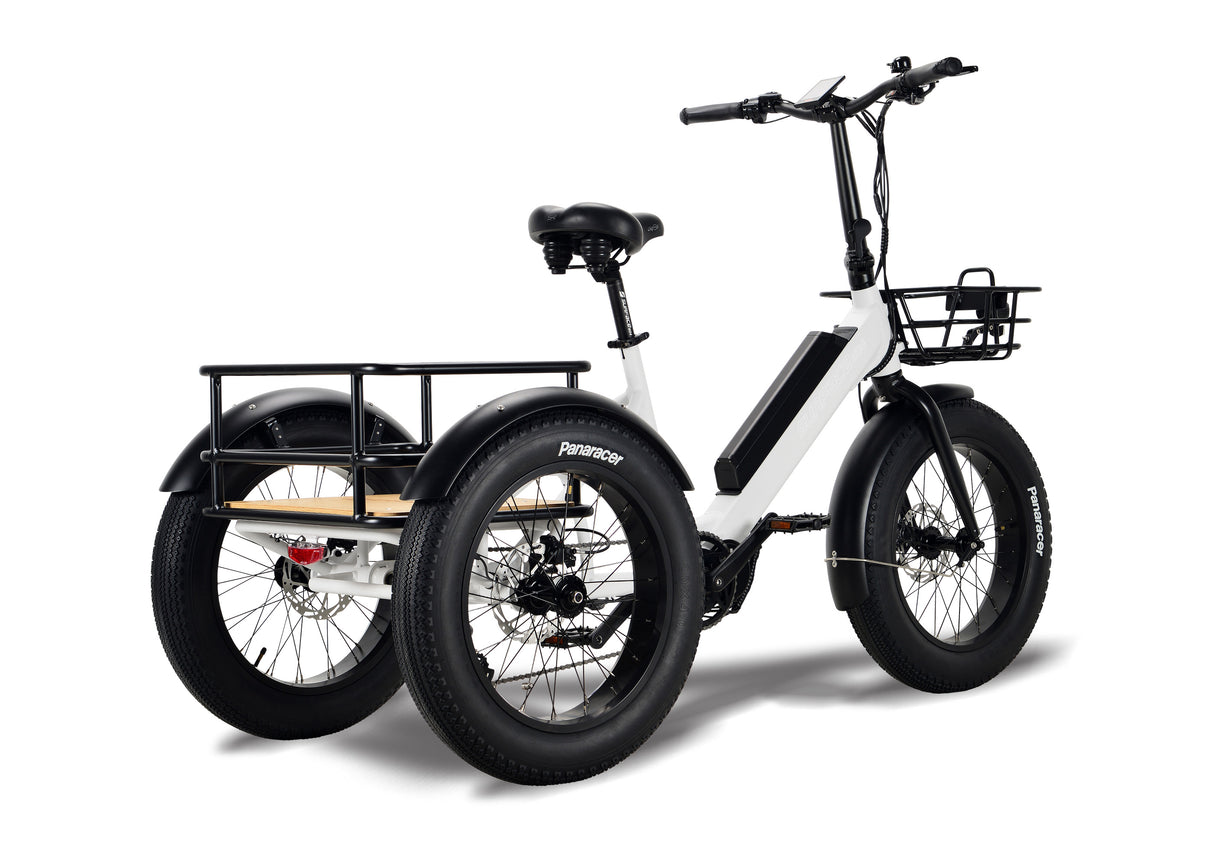

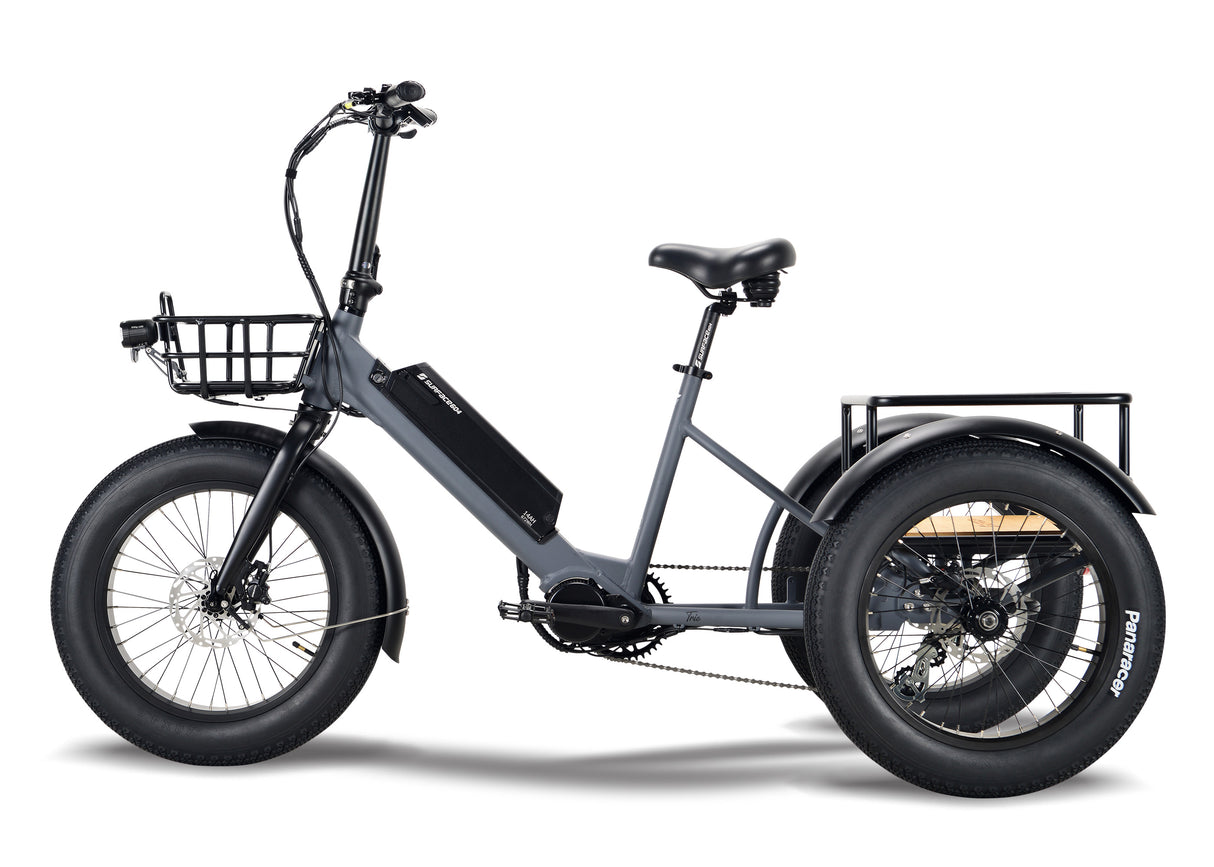

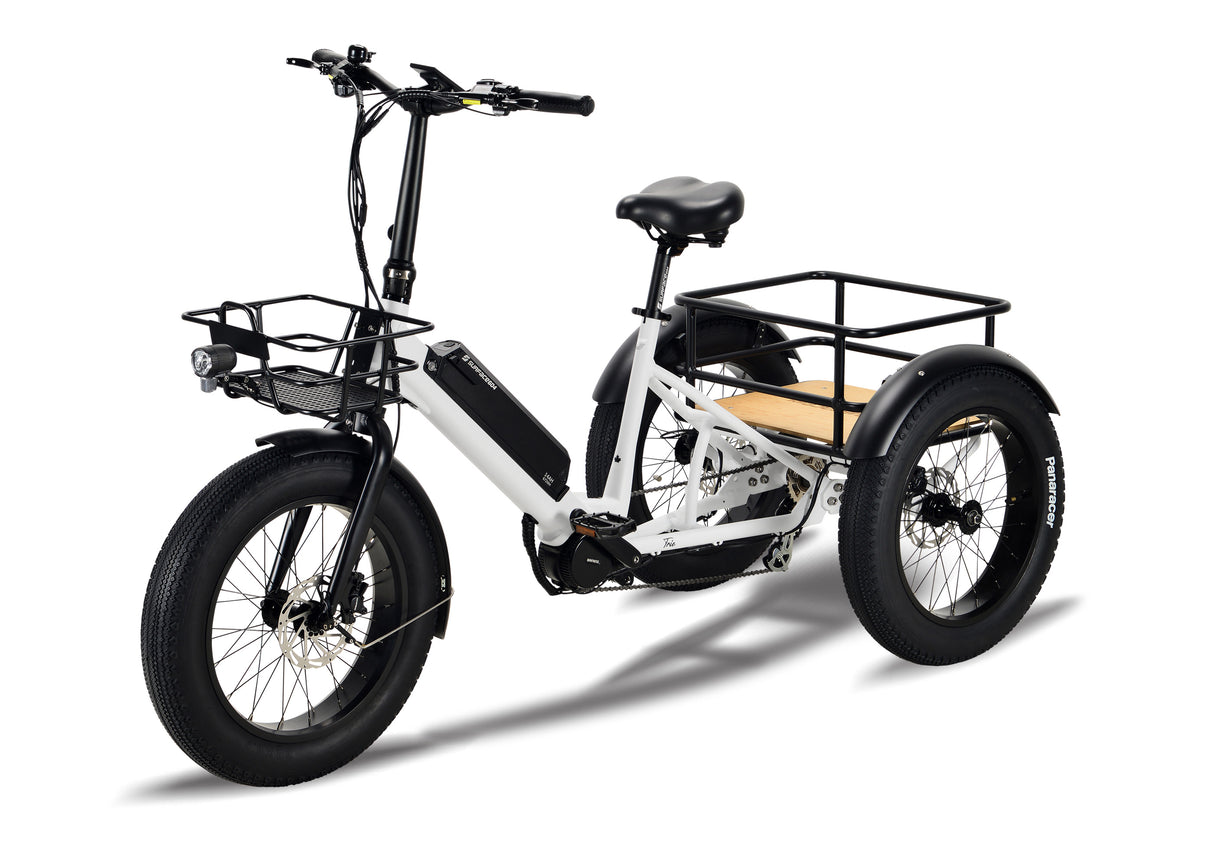

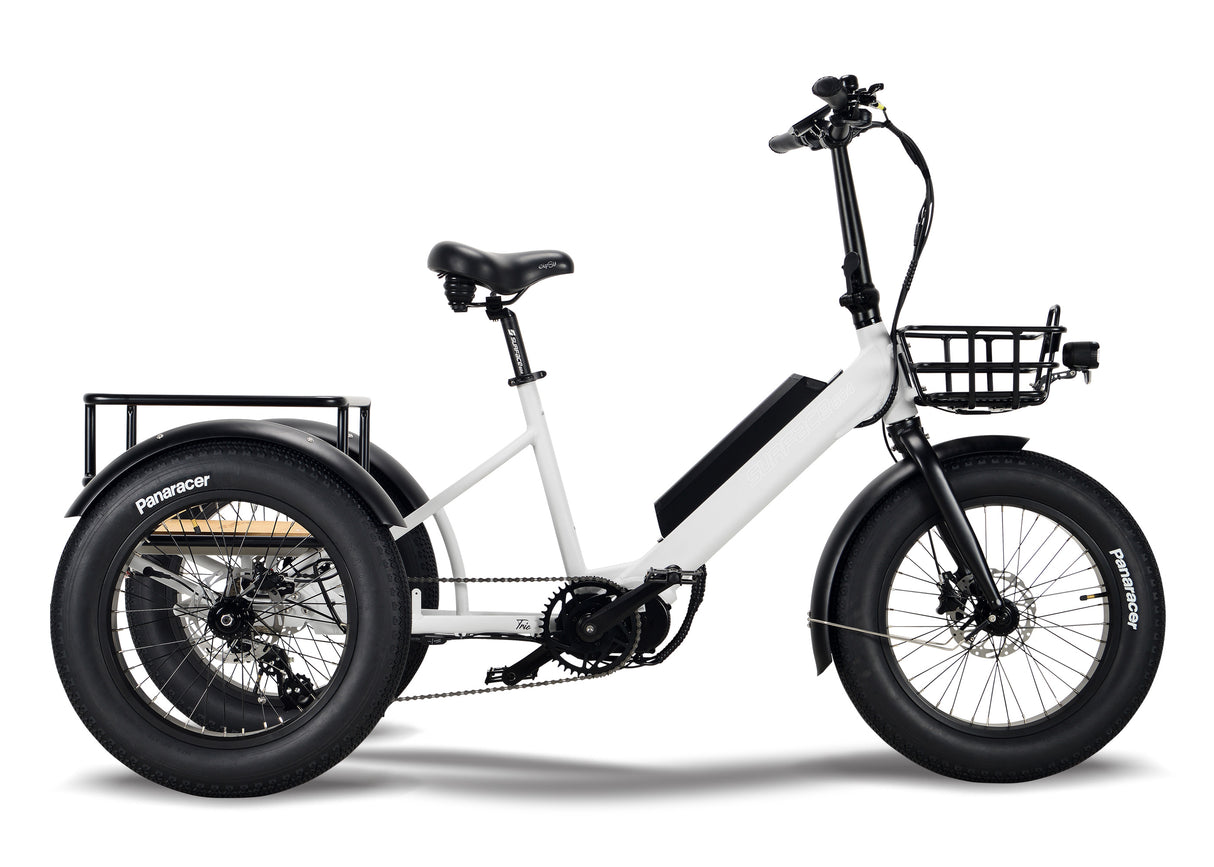

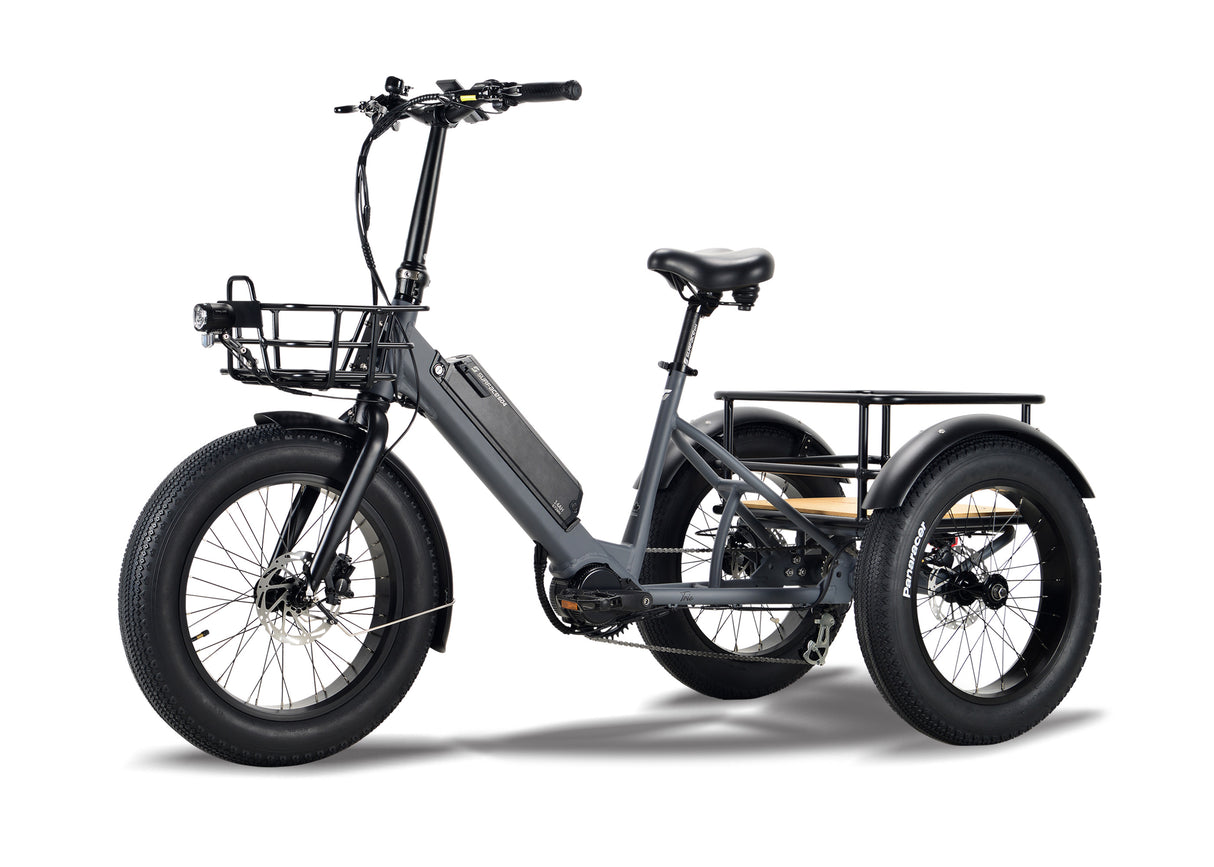

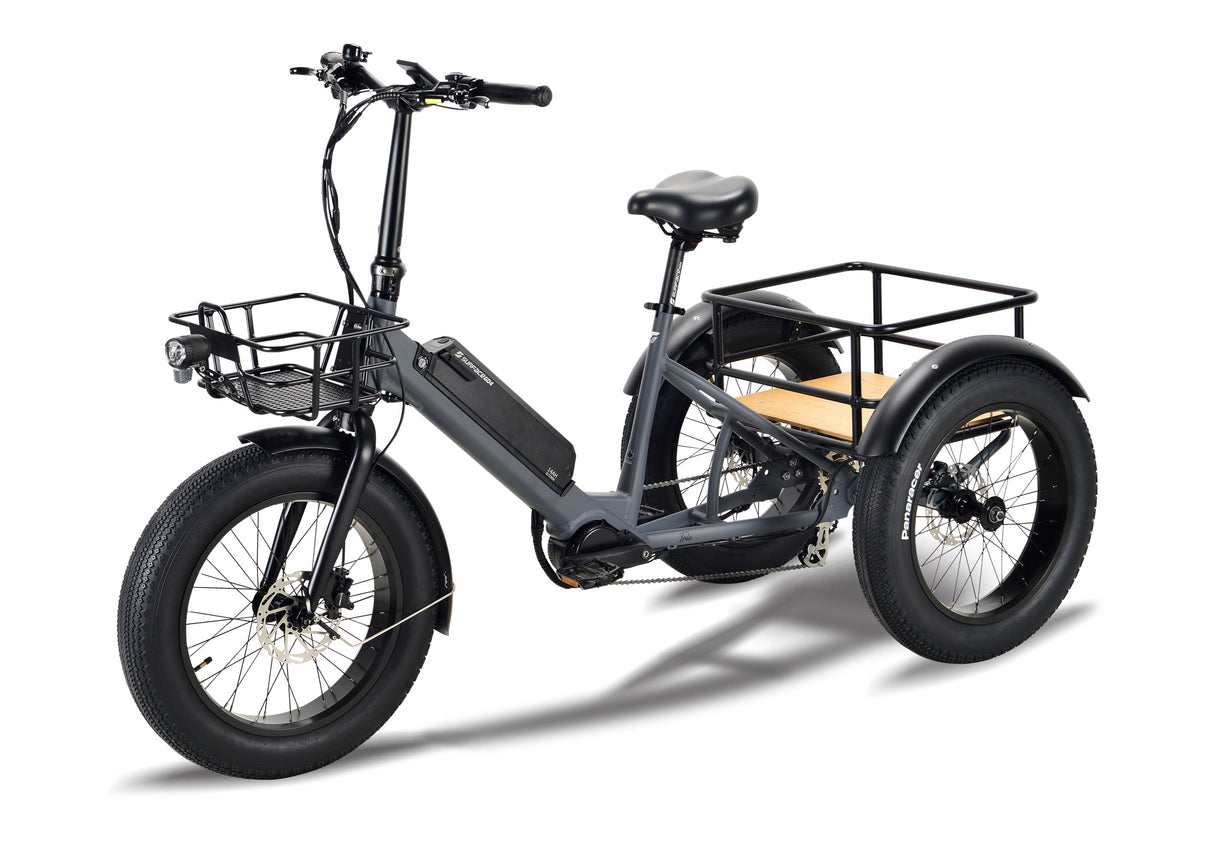

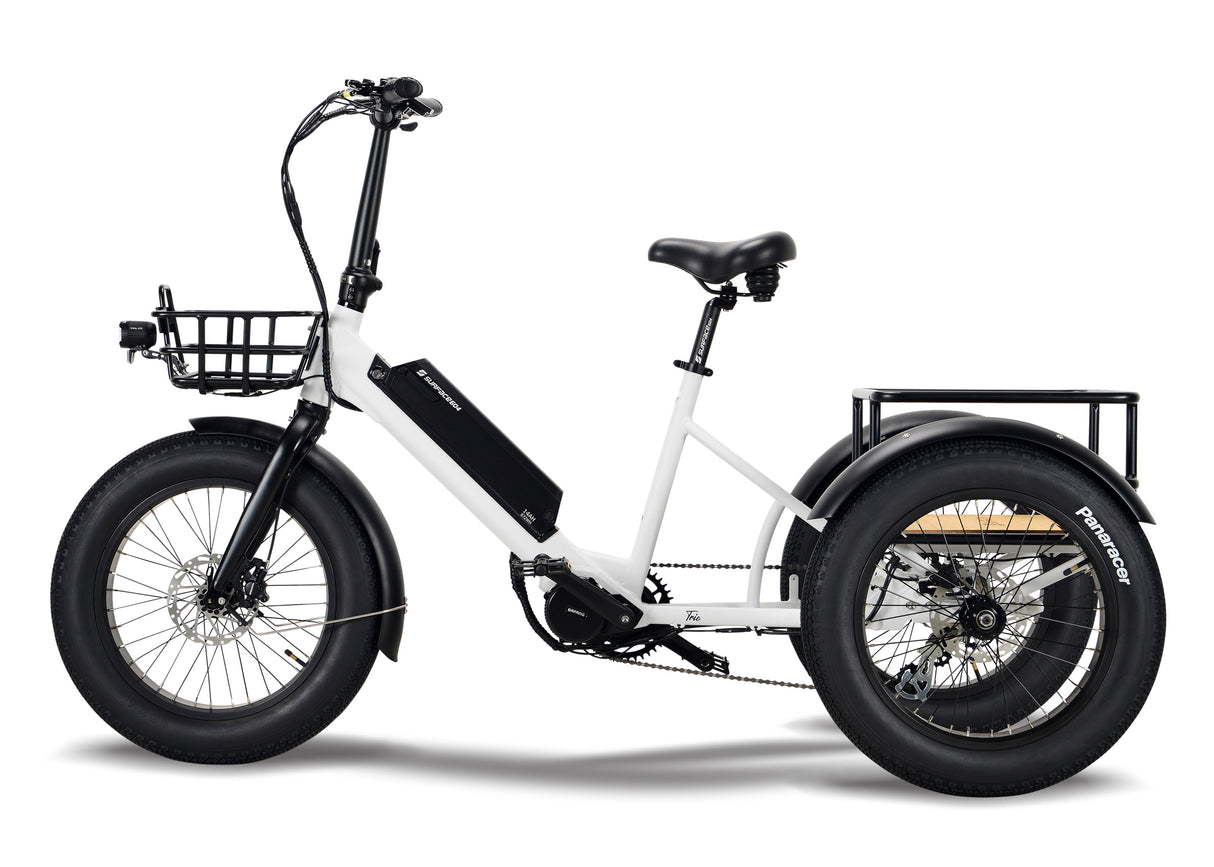

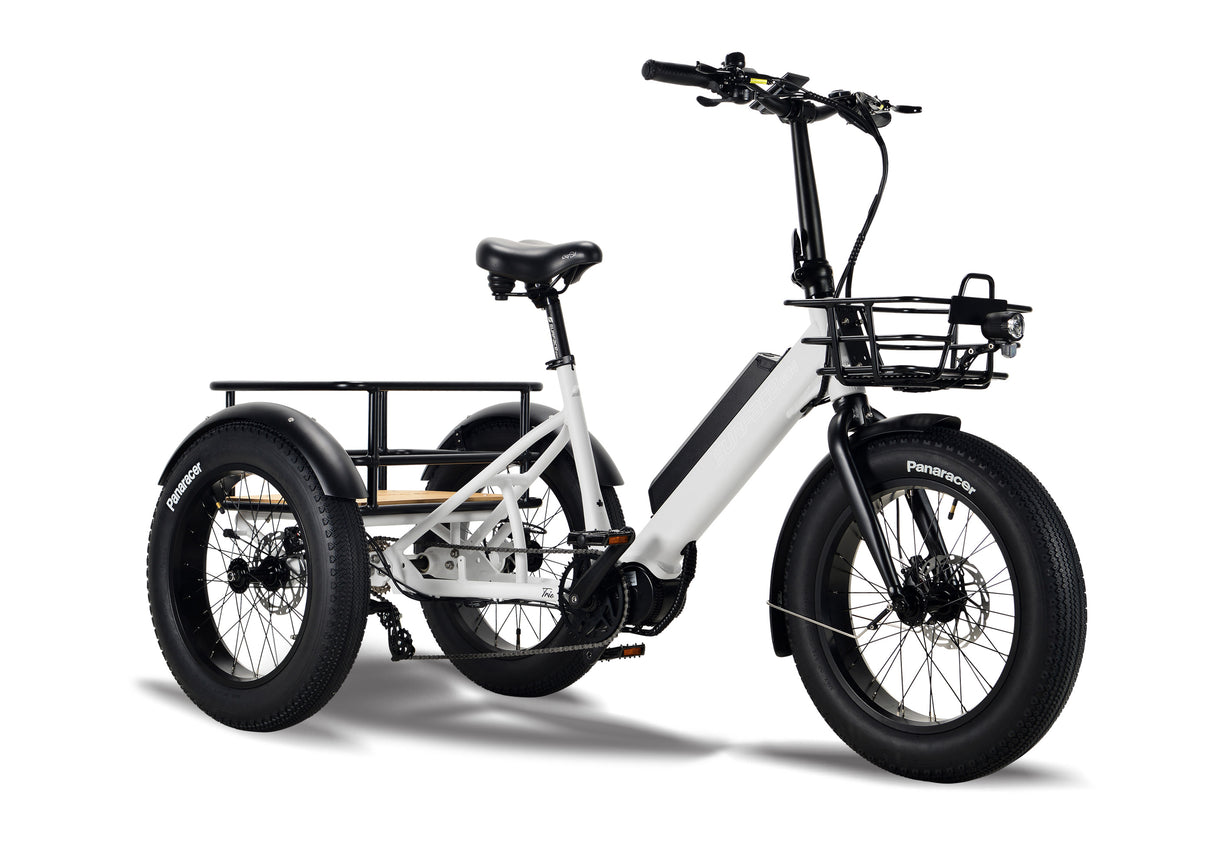

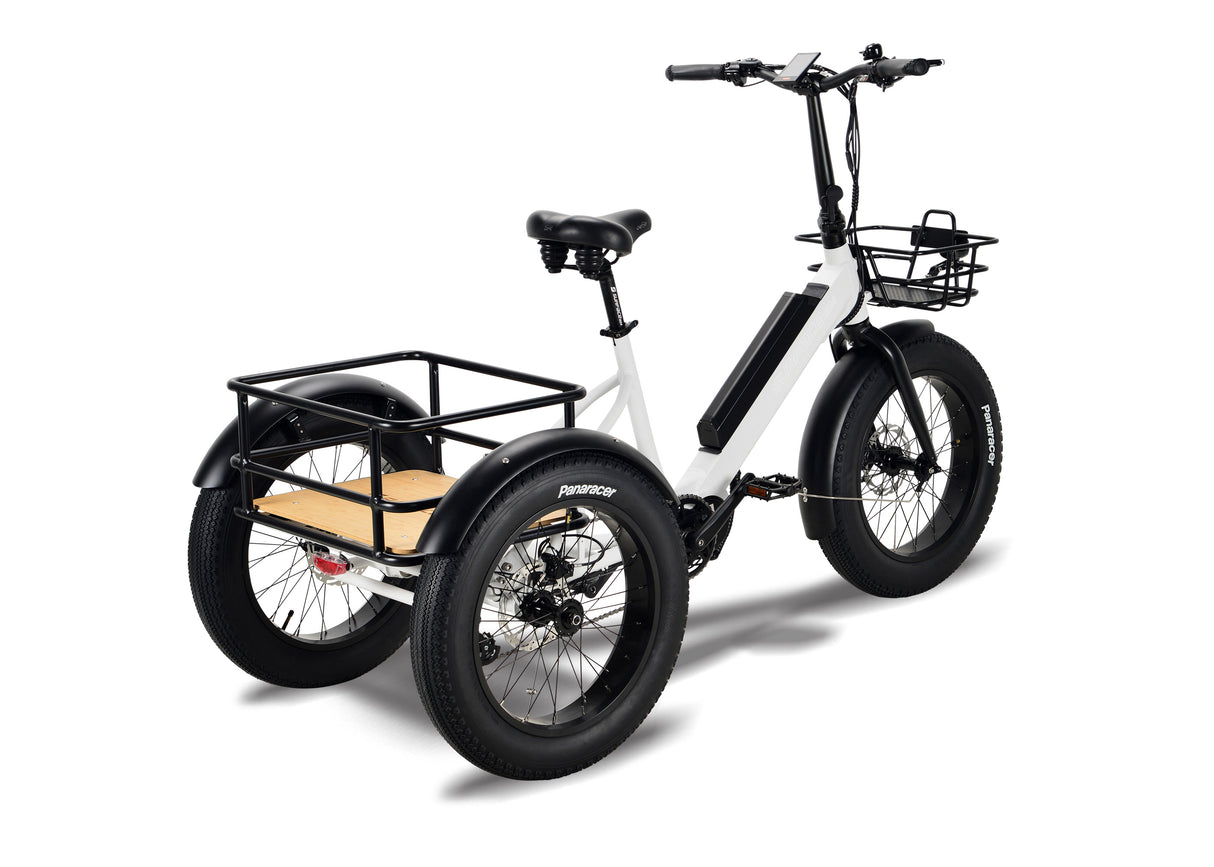

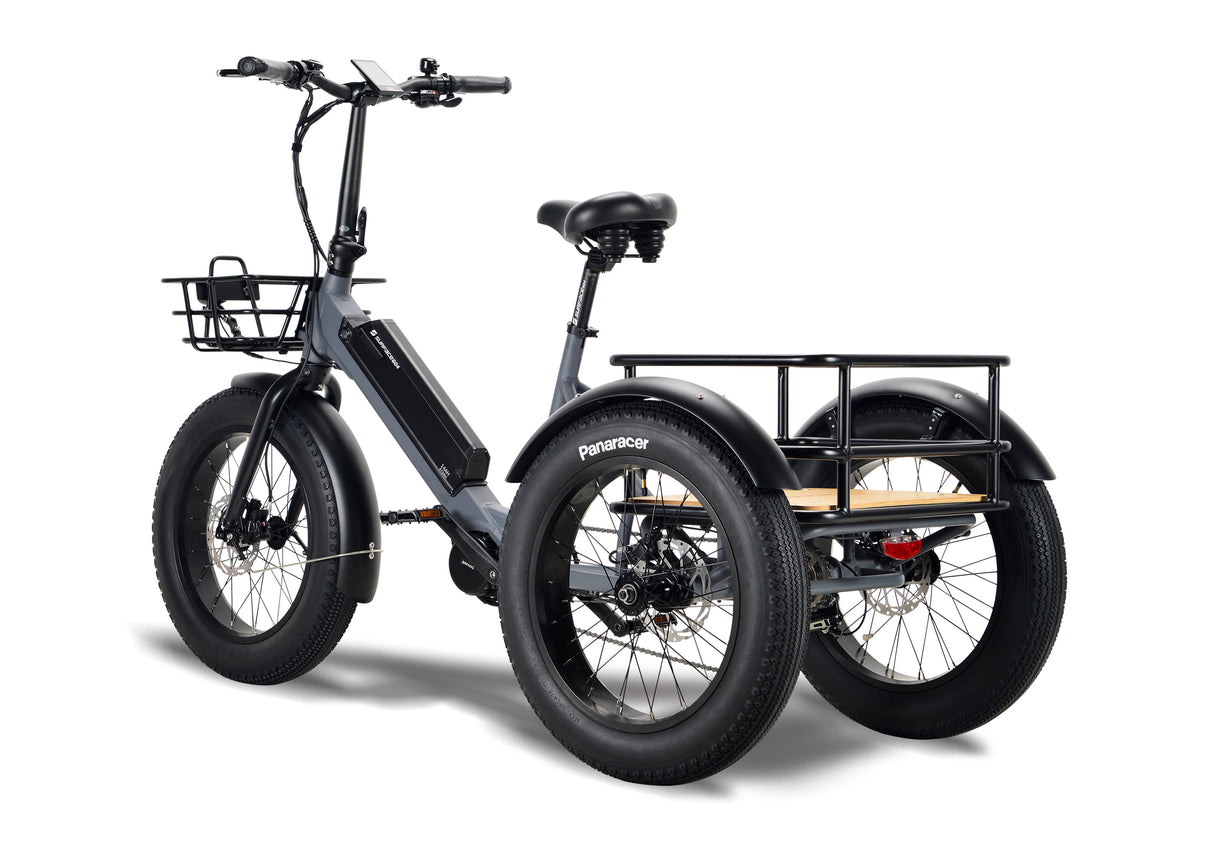

The Surface 604 Trio Mid-Drive Folding Trike is a stable, heavy-duty three-wheeler engineered for effortless riding and hauling. It features a low-step aluminium frame with a foldable stem for compact storage and transport.

Driven by a 500 W (peaks at 750 W) Bafang mid-drive motor paired with a 48 V 20 Ah Samsung battery, it delivers smooth, responsive power and a range of up to 105 km per charge. With fat 20″ tires, hydraulic disc brakes, a wide cargo platform, and a comfort-oriented design including a gel saddle and roomy baskets, this trike brings confidence and capability to urban errands and longer rides alike.

Video



Key Features

  • Motor & Battery: 500-watt Bafang mid-drive motor (peaks at 750 watts) with torque sensing and thumb throttle; 48V 20Ah (960 Wh) Samsung lithium-ion battery
  • Top Speed & Range: Up to 32 km/h (20 mph) typical; range up to ~105 km (65 mi) per charge
  • Braking & Gearing: Hydraulic Tektro Auriga (Twin HD-T525) disc brakes with parking function; Shimano Altus 7-speed drivetrain
  • Comfort & Traction: Custom Panaracer 20″ × 4.0″ fat tires; low-step folding frame with supportive geometry

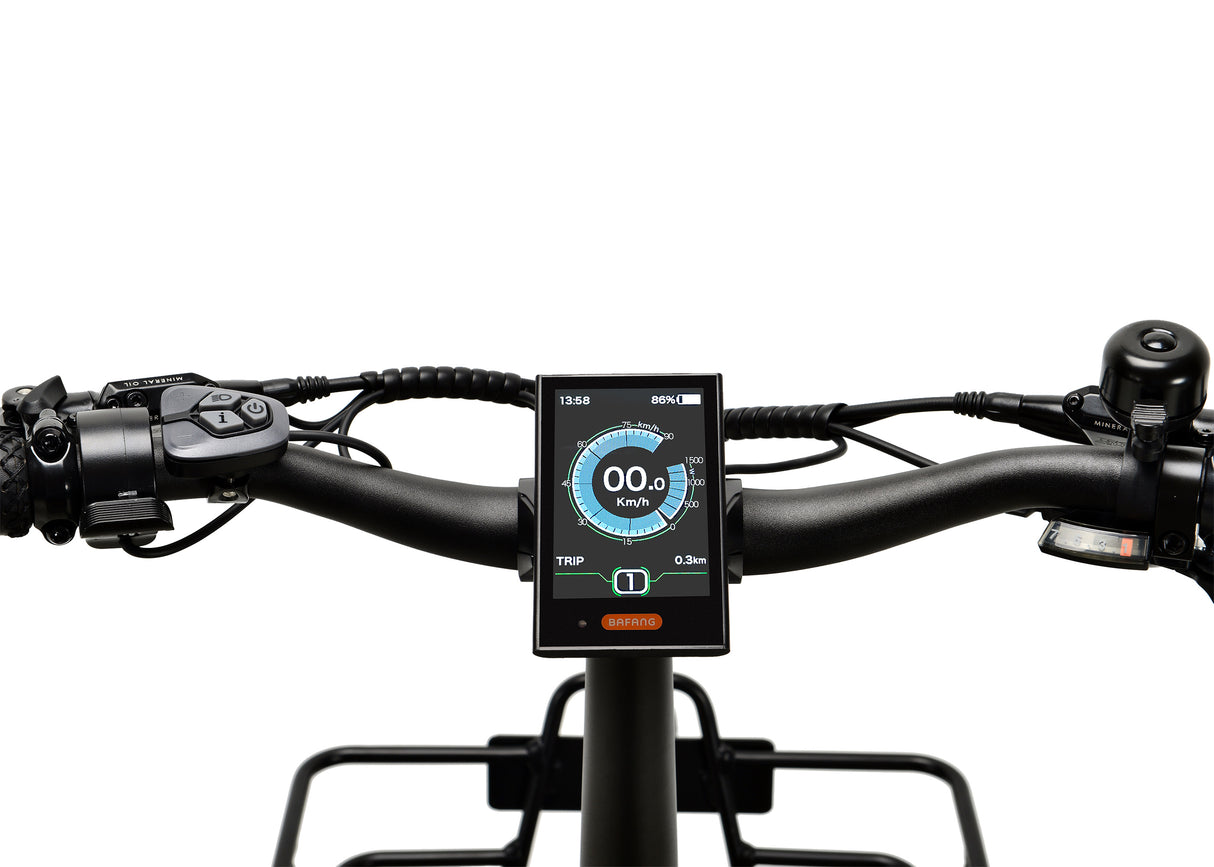

  • Controls & Display: Large fixed-color LED display with USB port; torque-sensing pedal assist with throttle; folding stem for compact storage

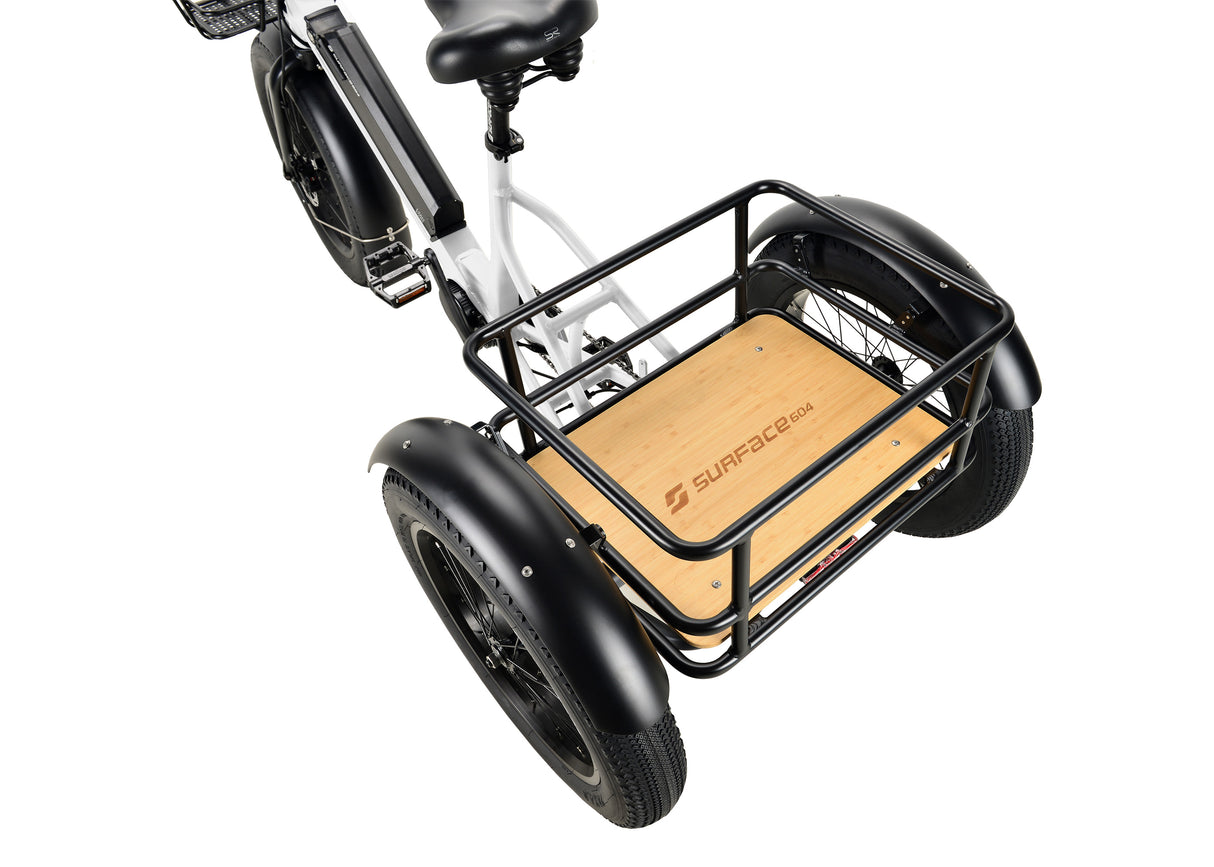

  • Extras for Everyday Ride: Oversized rear cargo platform with wooden base, removable front basket, integrated front/rear LED lighting, welded rear rack, fenders, and roomy seating capacity (~450 lb)
  • Warranty & Build: Robust 6061 aluminum frame built for durability and easy mounting; high load and cargo capacity in a secure package

Let's Get Technical

Battery

48V20Ah / 960Wh Samsung Lithium-Ion 21x700mm Cells

Controller

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

Display

Bafang Large Fixed-Color Led Display

Charger

3-4 Hours for a Full Charge from Empty

Throttle

Thumb Push Activated Throttle

Lights

BÜCHEL "SHINY 120" LED headlight with 120 lumens Pre-Wired, Front and Rear Stop Light

Detailed Specs
Motor Details High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang MID DRIVE motor
Mid Drive position adds to the Trikes' stability
Brakes Hydraulic Brakes Tektro Auriga Twin HD-T525
Throttle Thumb Push Activated Throttle
Battery 48V20Ah / 960Wh Samsung Lithium-Ion 21x700mm Cells
Range Details Upto 65mi (105km) with a 48V20Ah Battery
Pedal Assist Torque sensor w/ 5 PAS levels
Lights BÜCHEL "SHINY 120" LED headlight with 120 lumens Pre-Wired, Front and Rear Stop Light

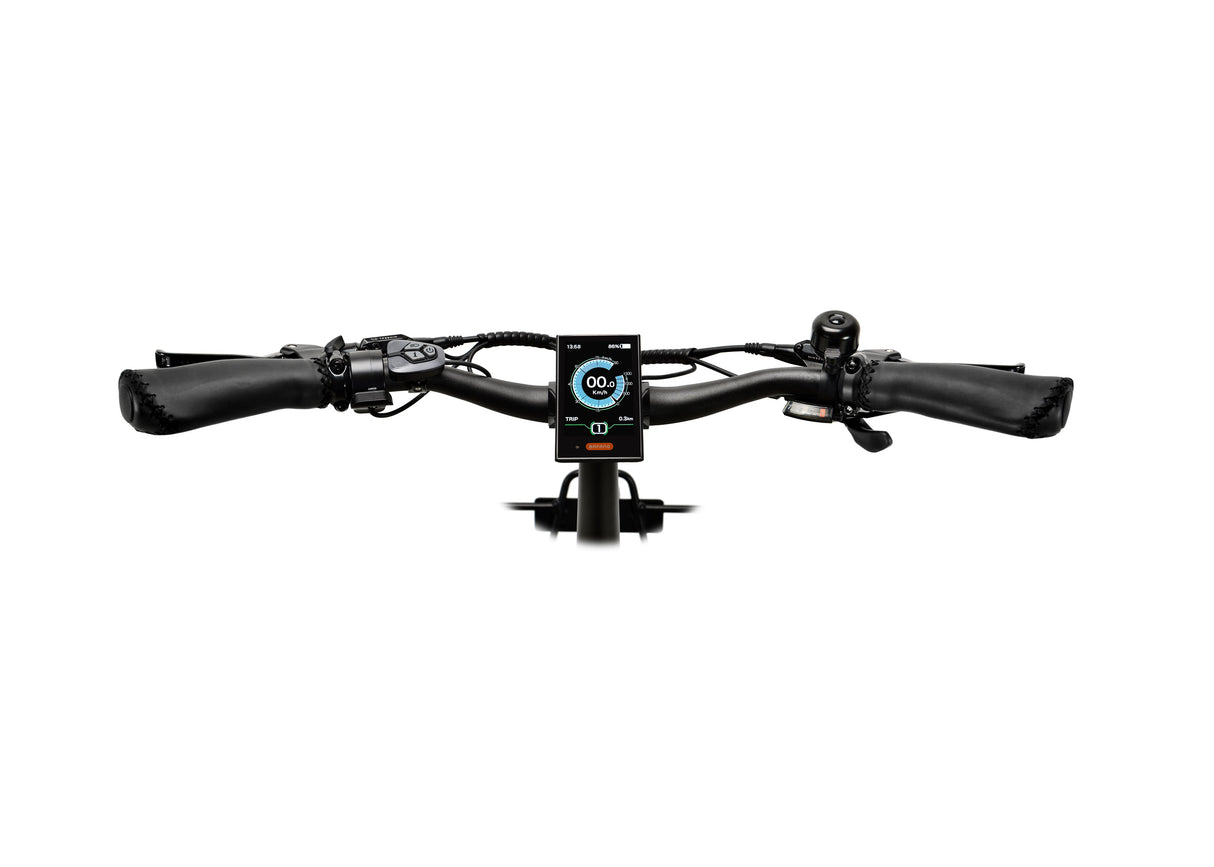

Display Bafang Large Fixed-Color Led Display
Controller SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Charger 3-4 Hours for a Full Charge from Empty
Cables Internal Cable Routing
Drive Type Mid Drive
Fork Rigid Cruiser Front Fork - Folding
Shift Levers Shimano Altus 7- Speed Trigger Shifter
Rotors 180mm Front/Rear
Pedals WELLGO Platform
Chain KMC 9-Speed
Derailleur Shimano Altus 7-Speed
Cassette Shimano Altus 7-Speed 12-28T Cassette
Crank Set SAMOX 38T Front Sprocket, 170mm Crank Arms
Seat Selle Royal "Gipsy" Ergonomic Relaxed Royal Gel Saddle, reduces pressure up to 40% for superior comfort. Resistant to ageing materials.

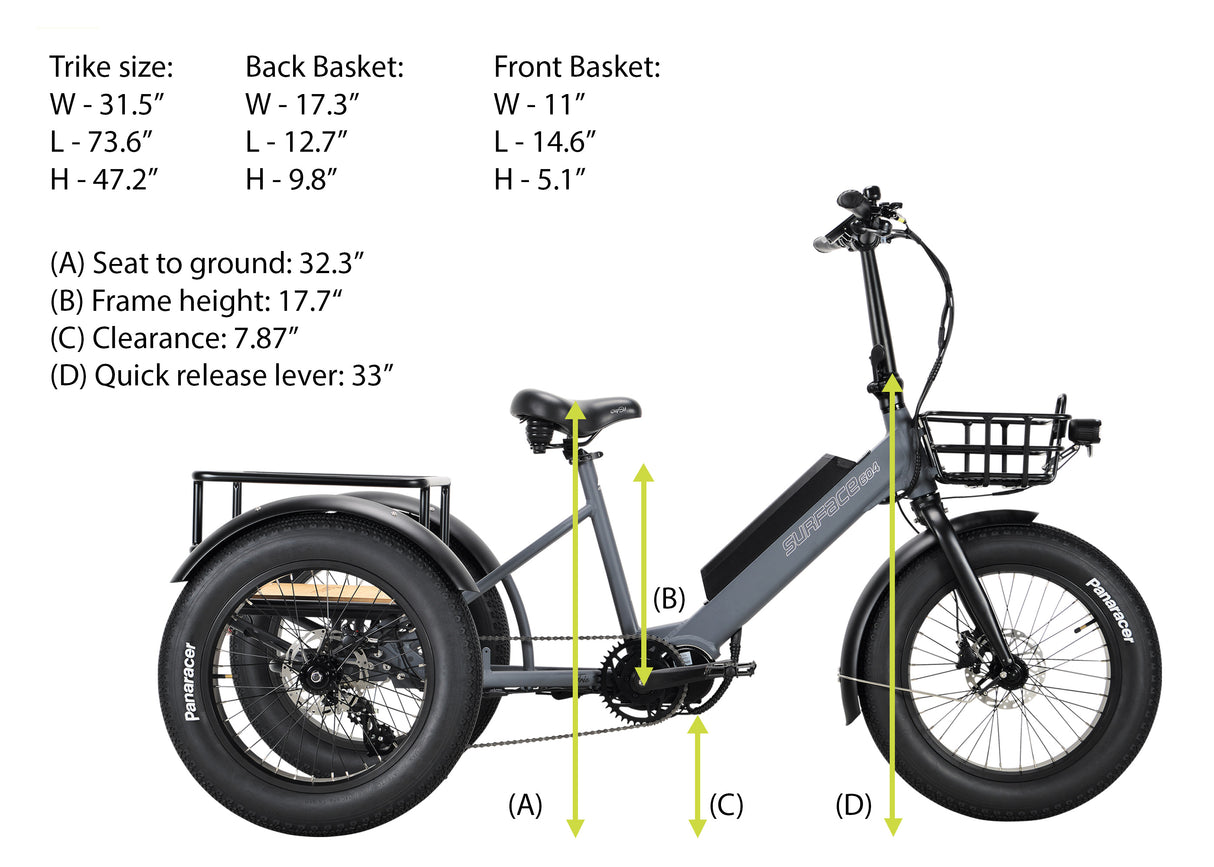

Frame Straight steerer Headtube, height 17.7" (45cm)
Custom Reinforced Battery Mounts Internal Cable Routing, Post Mount Brakes
Tires Tires Front/Rear Panaracer Fat 20” X 4.0”
Handlebar PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide

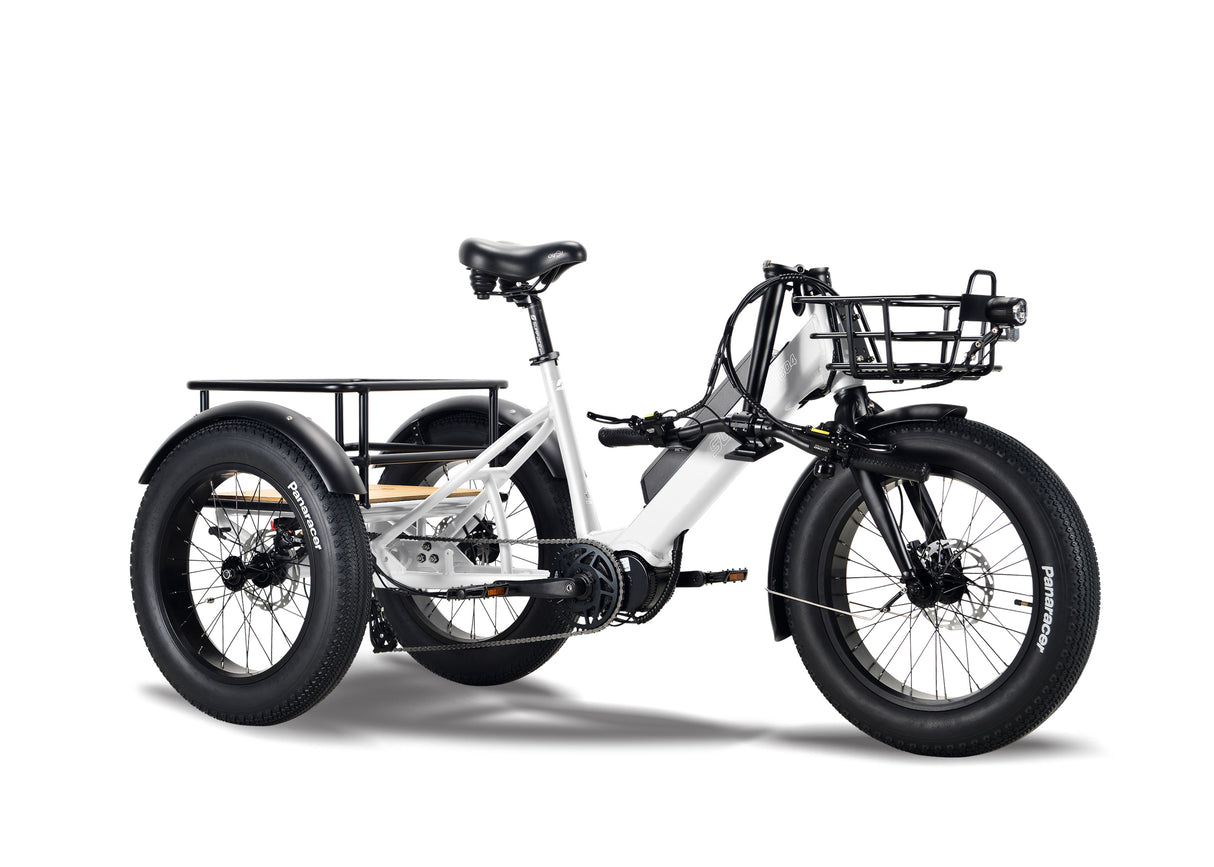

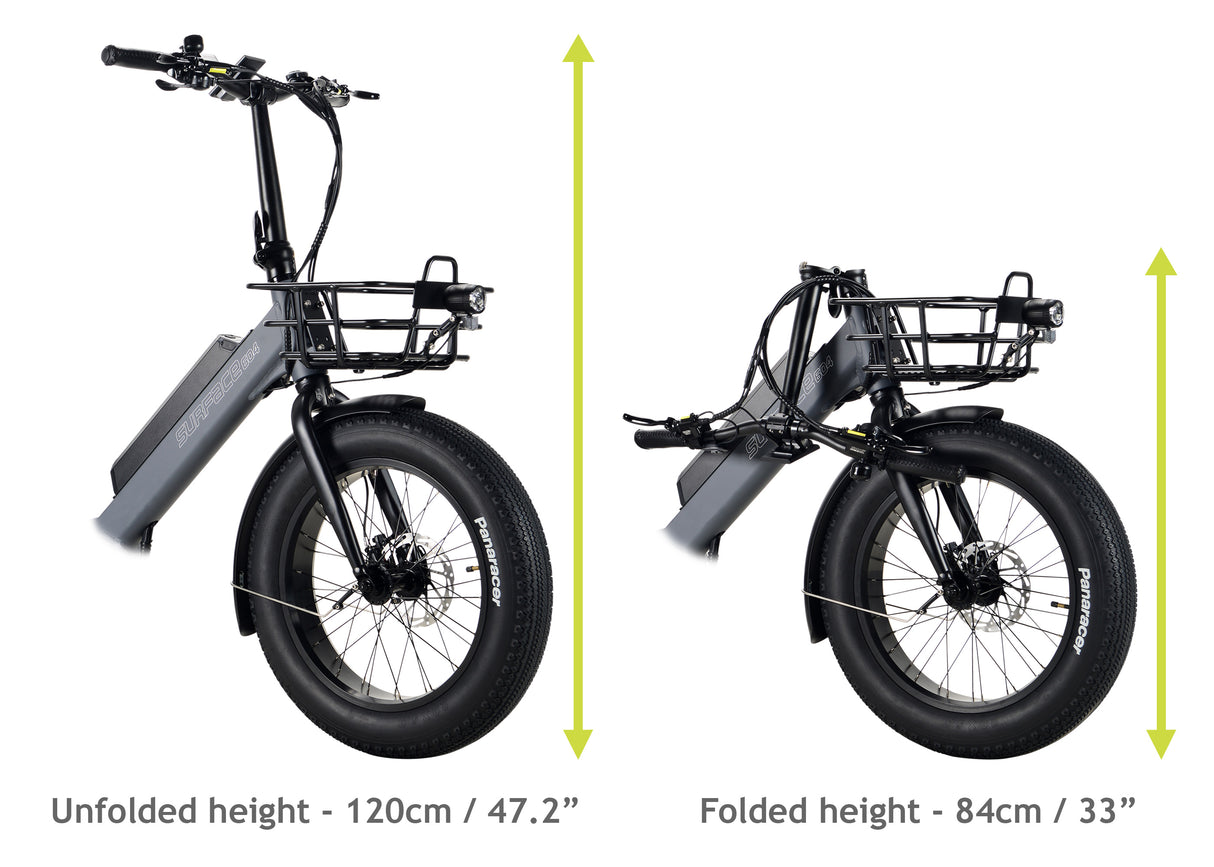

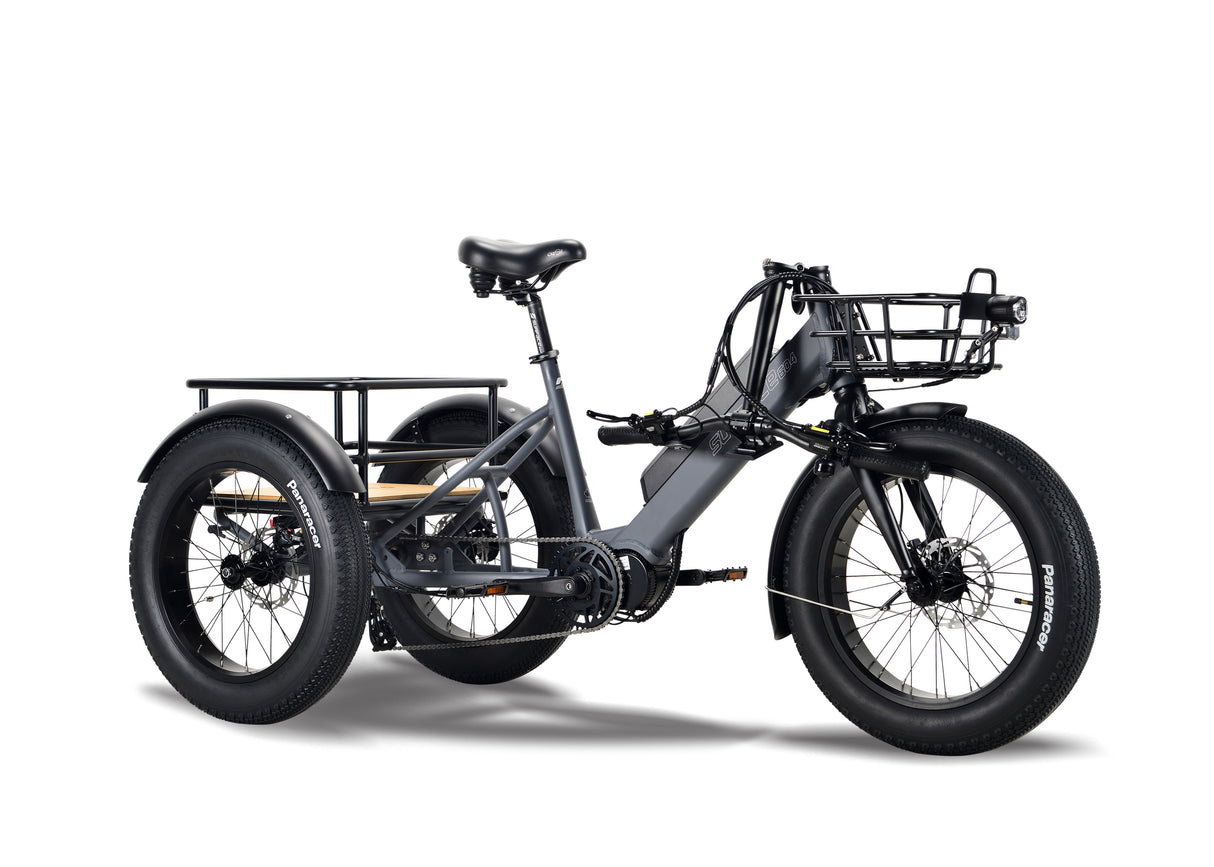

Added bonus feature - the handle can fold down for easier storage and transportation.
Folded height: 84CM - 33", Unfolded height: 120CM - 47.2"
Max Capacity Details 450lbs (204kg)
Warranty & Shipping
Warranty

Product warranty depends on the brand that you are buying. Some brands offering substantial warranty periods. For example, Michael Blast, Surface604 will have 1 year warrarnty parts, battery and labour. T4B, SPAN offers 6months parts, battery and labour warrarnty.

We handle all warranty situations from our retail store location. To report warranty issue or simply schedule appointment with our tech please give us a call during our business hours.

Click here to read our return and exchange policy

Shipping

Every eBike and scooter minimum charge of $100 applied on shipping to major centers (like Vancouver, Calgary, Toronto, Montreal, Ottawa etc.) (unless picked up directly from the store). Beyond areas i.e. smaller cities - shipping charges will vary from $100-$500.

Bikes are shipped directly from our Calgary store via UPS, or Canada Post. Tracking number is available as soon as order is shipped. Large products such as electric scooters, anything over 150 LBS is shipped via LTL freight. Tracking is also available.

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

Applicable taxes will be charged i.e. BC 12%, AB 5%, SK 5%, MB 5%, ON 13%, QC 5%, NB 14%, NS 14%, NL 14%, PEI 14%.

eBikes Calgary DOES NOT ship to USA and Internationally. If you are from the US and looking to purchase T4B or Michael Blast eBikes please order from michaelblast.com web site.

Compare Similar

See how the Surface 604 Trio Folding eTrike w/ 500-Watt Mid-Drive stacks up to other, similar products.

Smartmotion E20 Low Step 250W Folding
View details
SURFACE604 - Twist Low Step 500W Folding
View details
Black
T4B TWISTER 500-Watt Folding Fat-Tire eBike
View details
By
BySmartMotionSurface604T4B
Price
Price
$999.99 $1,999.99
$2,499.00 $2,900.00
$1,499.99 $2,199.00
Drive Type
Drive Type
-
Hub Drive
Hub Drive
Battery
Battery
In-tube 36V 11.6Ah 417Wh LG advanced 350W - 3200 LG cells Li-ion battery, superior weather proofing
Included: 48V 14Ah / 672Wh, Samsung Lithium-Ion 18650 Cells - Integrated
48V 10.4AH
Throttle
Throttle
-
Thumb Push Activated Throttle
Thumb

Unlock Exploration

Expreience the freedom and excitement that only an ebike can offer. Find the right one for you.

Shop All eBikes
Surface604

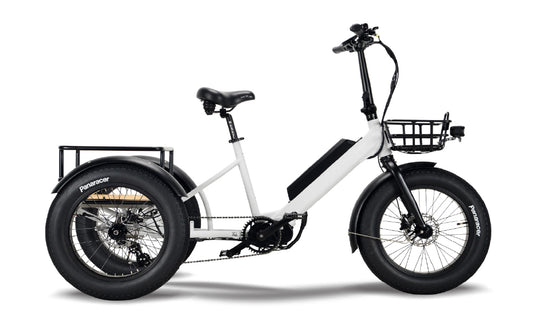

Surface 604 Trio Folding eTrike w/ 500-Watt Mid-Drive
