Surface604  |  SKU: 24-S604TRIK-GRY

SURFACE604 - Trio Mid Drive 500W Folding Trike

Available at our Calgary Location
$4,499.00
Color: grey2

Delivery and Shipping

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

32
KM/H
TOP SPEED
105
KM
RANGE
450
LBS
CAPACITY

Learn More

Redefine mobility with the Surface604 Trike Mid Drive 500W Folding e-trike. Engineered with a sturdy 6061 aluminum alloy frame, it features a powerful 500W Bafang mid-drive motor and a 48V20Ah Samsung battery. Complete with hydraulic Tektro Auriga brakes, Shimano Altus 7-speed, and 20” Panaracer fat tires. Comfortable Selle Royal saddle, LED display, 450lbs capacity.



See it In Action

Let's Get Technical

Battery

48V20Ah / 960Wh Samsung Lithium-Ion 21x700mm Cells

Controller

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

Display

Bafang Large Fixed-Color Led Display

Charger

3-4 Hours for a Full Charge from Empty

Throttle

Thumb Push Activated Throttle

Lights

BÜCHEL "SHINY 120" LED headlight with 120 lumens Pre-Wired, Front and Rear Stop Light

Detailed Specs
Motor Details High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang MID DRIVE motor
Mid Drive position adds to the Trikes' stability
Brakes Hydraulic Brakes Tektro Auriga Twin HD-T525
Throttle Thumb Push Activated Throttle
Battery 48V20Ah / 960Wh Samsung Lithium-Ion 21x700mm Cells
Range Details Upto 65mi (105km) with a 48V20Ah Battery
Pedal Assist Drop Out Torque Sensing Pedal Assist with a Throttle
Lights BÜCHEL "SHINY 120" LED headlight with 120 lumens Pre-Wired, Front and Rear Stop Light

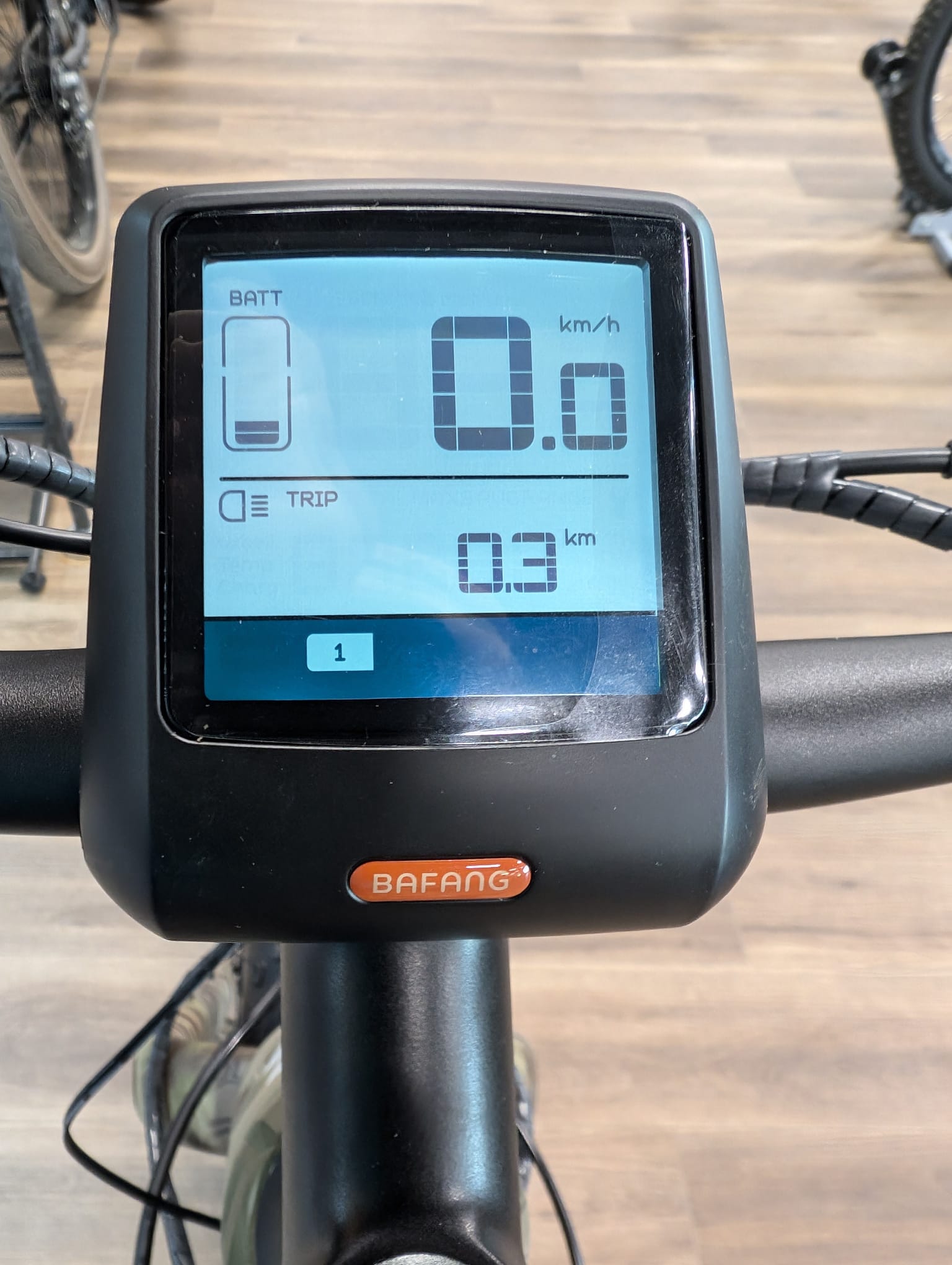

Display Bafang Large Fixed-Color Led Display
Controller SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Charger 3-4 Hours for a Full Charge from Empty
Cables Internal Cable Routing
Drive Type Mid Drive
Fork Rigid Cruiser Front Fork - Folding
Shift Levers Shimano Altus 7- Speed Trigger Shifter
Rotors 180mm Front/Rear
Pedals WELLGO Platform
Chain KMC 9-Speed
Derailleur Shimano Altus 7-Speed
Cassette Shimano Altus 7-Speed 12-28T Cassette
Crank Set SAMOX 38T Front Sprocket, 170mm Crank Arms

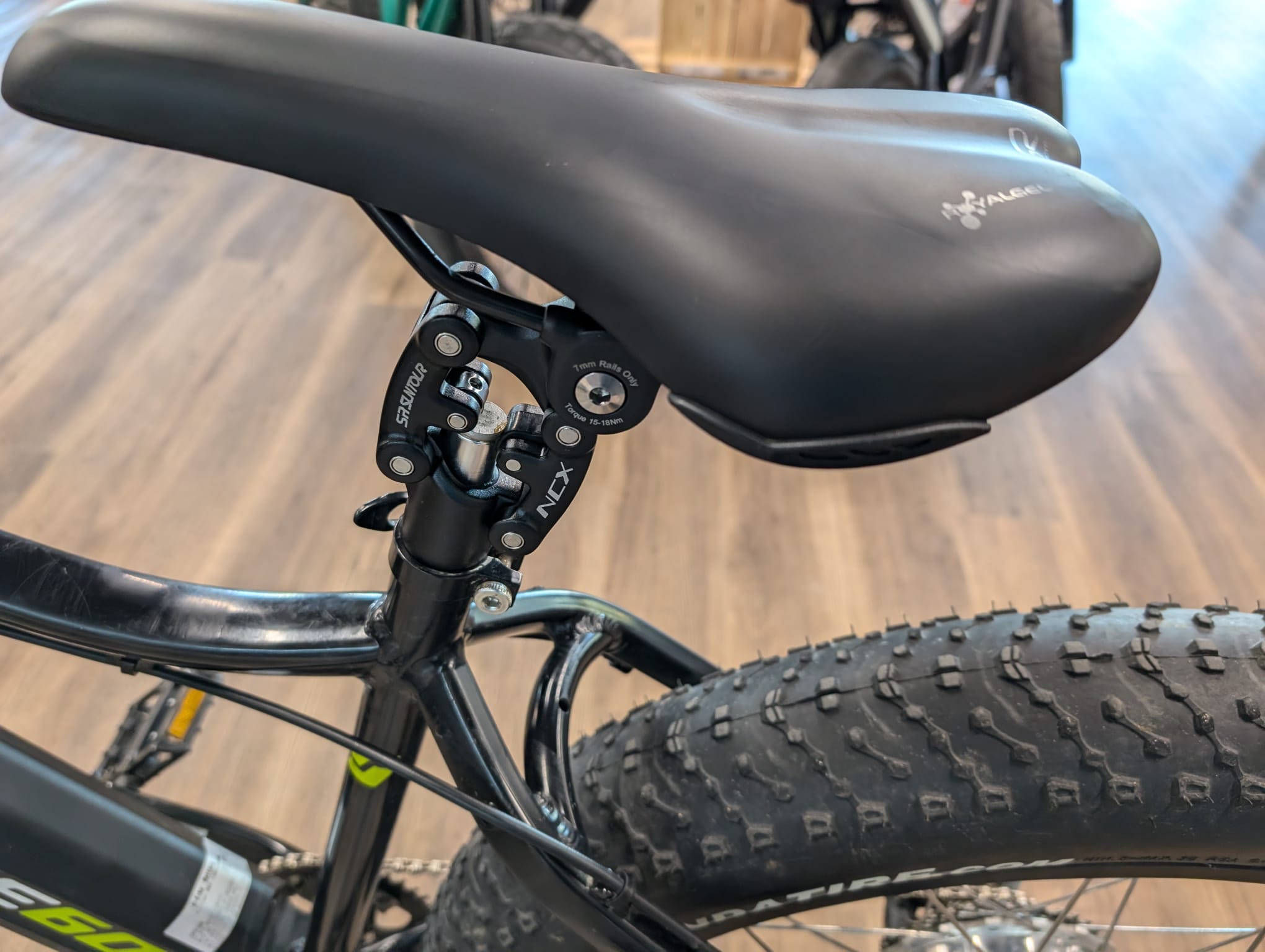

Seat Selle Royal "Gipsy" Ergonomic Relaxed Royal Gel Saddle, reduces pressure up to 40% for superior comfort. Resistant to ageing materials.
Frame Straight steerer Headtube, height 17.7" (45cm)
Custom Reinforced Battery Mounts Internal Cable Routing, Post Mount Brakes
Tires Tires Front/Rear Panaracer Fat 20” X 4.0”
Handlebar PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide
Added bonus feature - the handle can fold down for easier storage and transportation.
Folded height: 84CM - 33", Unfolded height: 120CM - 47.2"
Max Capacity Details 450lbs (204kg)
