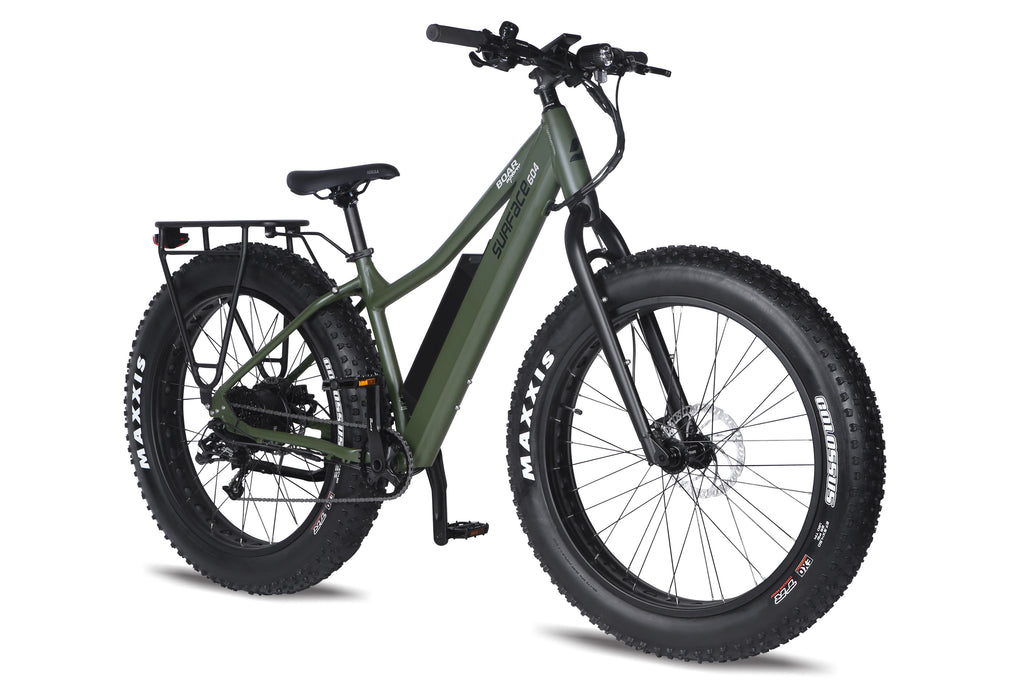

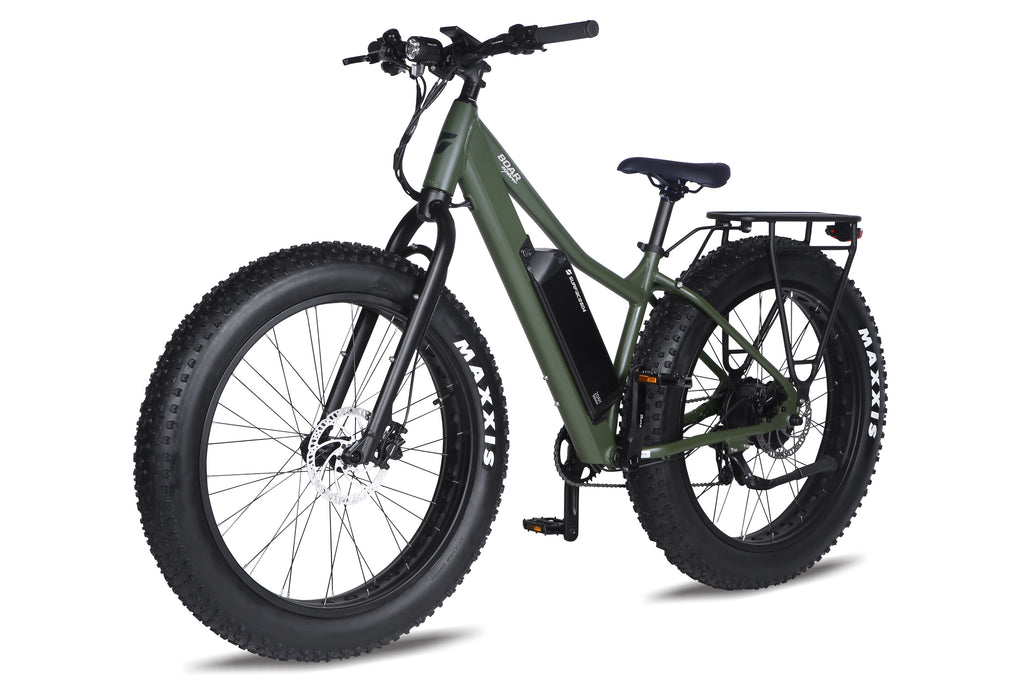

The Boar comes equipped with a fat bike specific 500W motor that is extremely powerful (peaks at 750W). With a torque sensor and throttle on demand, the Boar is well suited to carry heavy loads and is often referred to as the pickup truck of bikes.
BOAR EXPLORER is what we call the SUV of electric bikes. It hauls! Explorer has the capacity to handle heavy load. Best option for an avid hunter, fishermen or a tough outdoorsman who wants to take along a bundle of equipment.

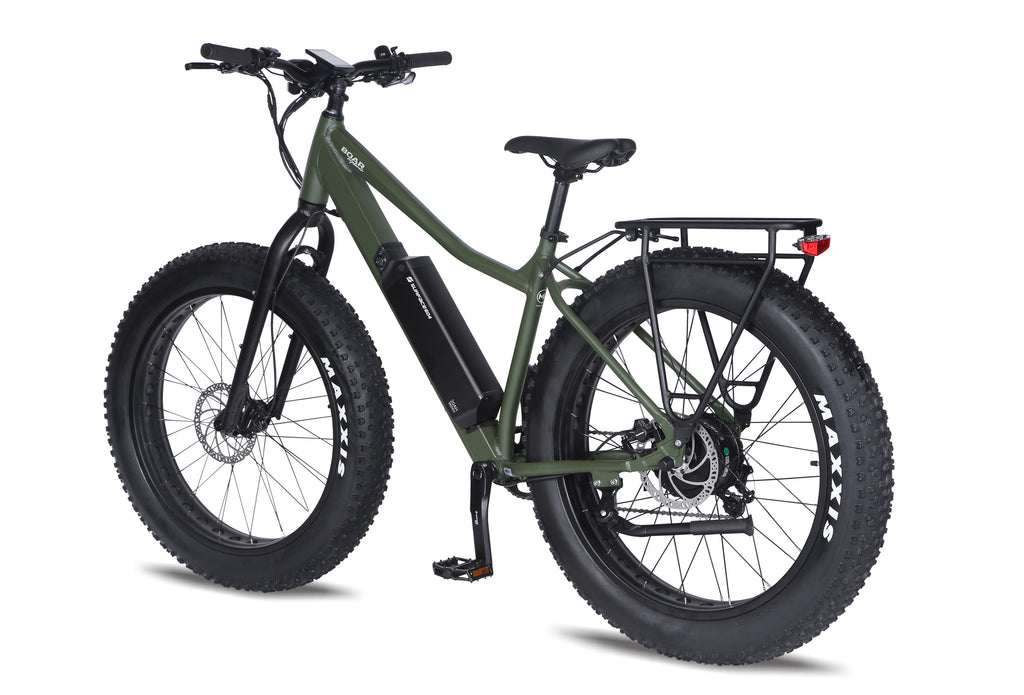

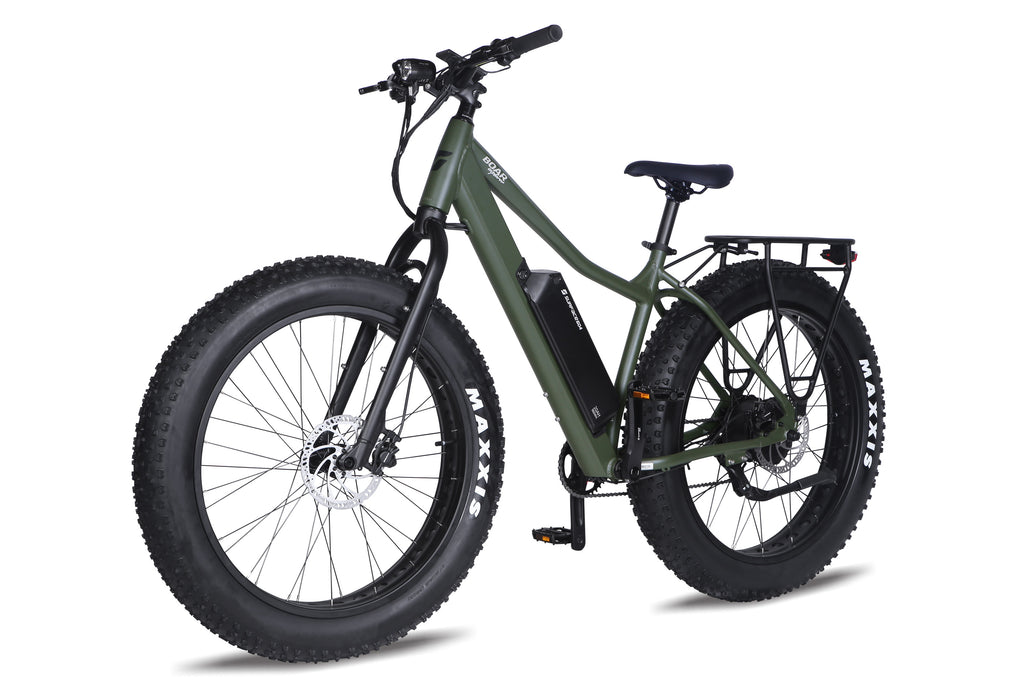

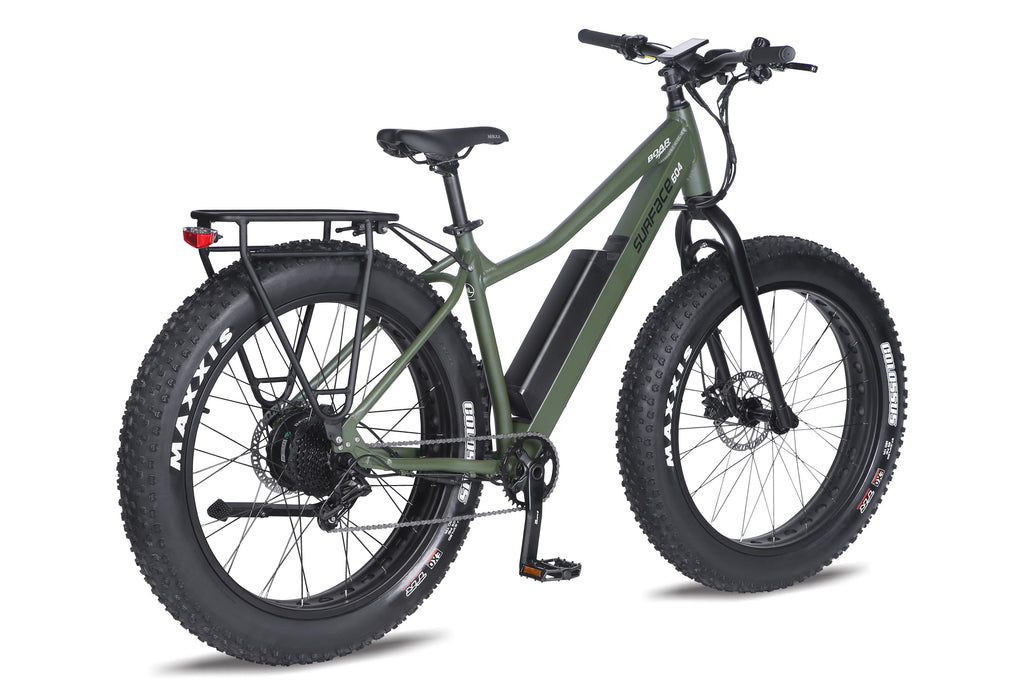

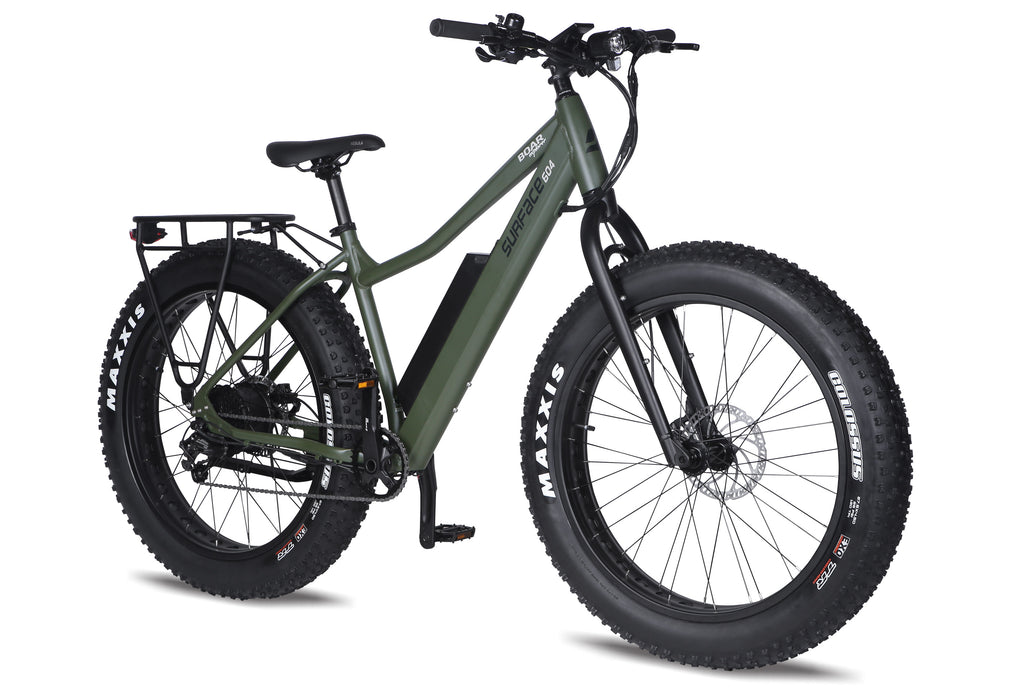

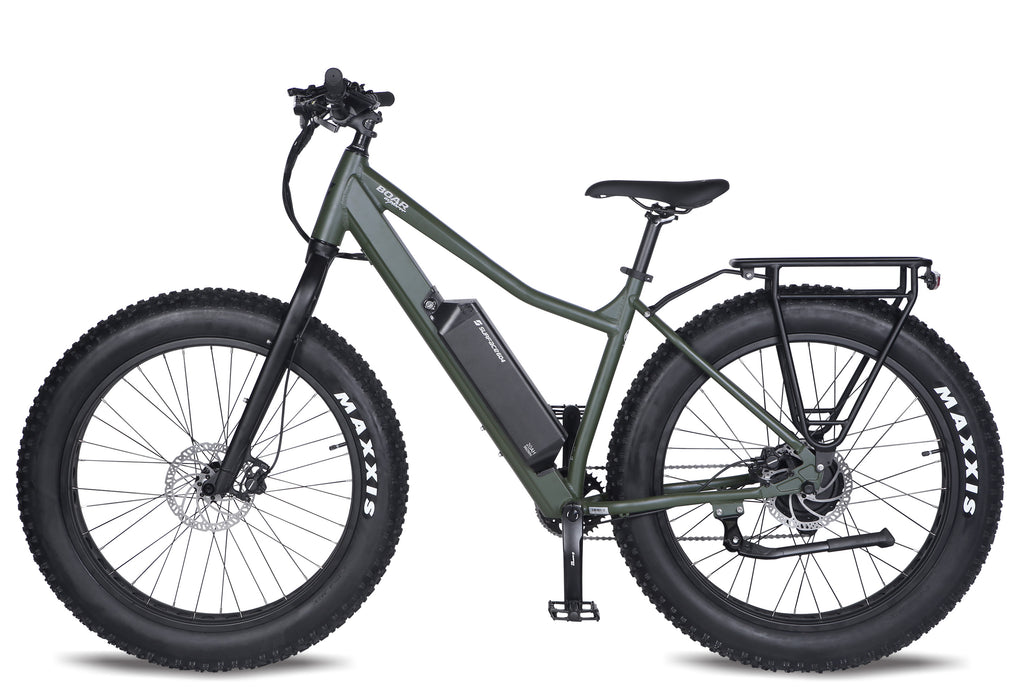

STANDOVER HEIGHT - Medium-Large: 30” (760mm)
SIZE REFERENCE - M/L 19.5" Frame, for riders 5'8"-6'6"

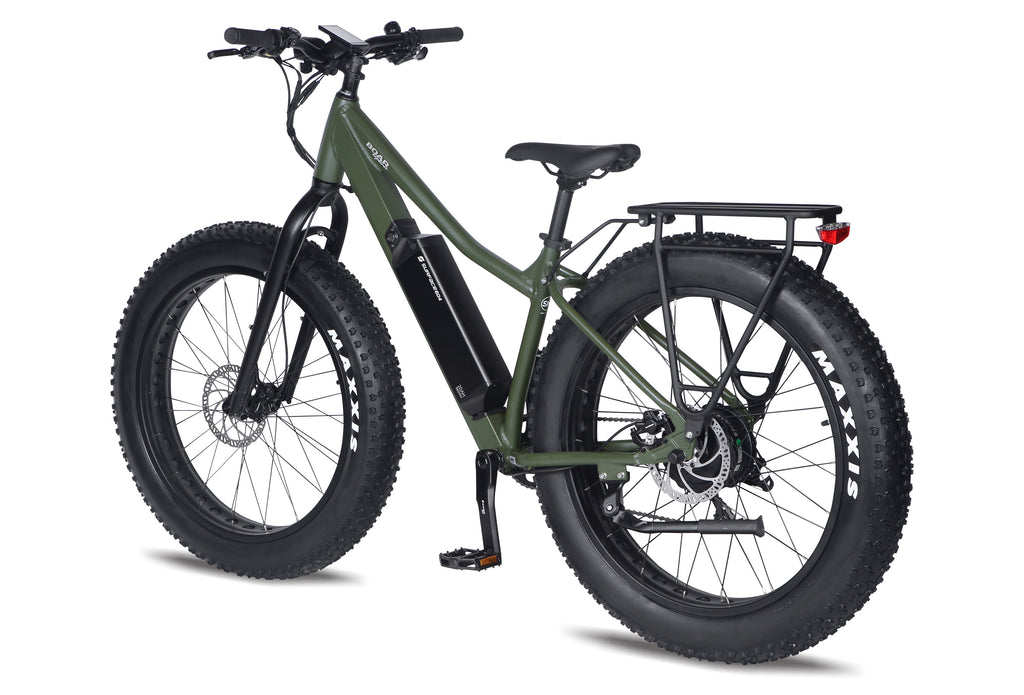

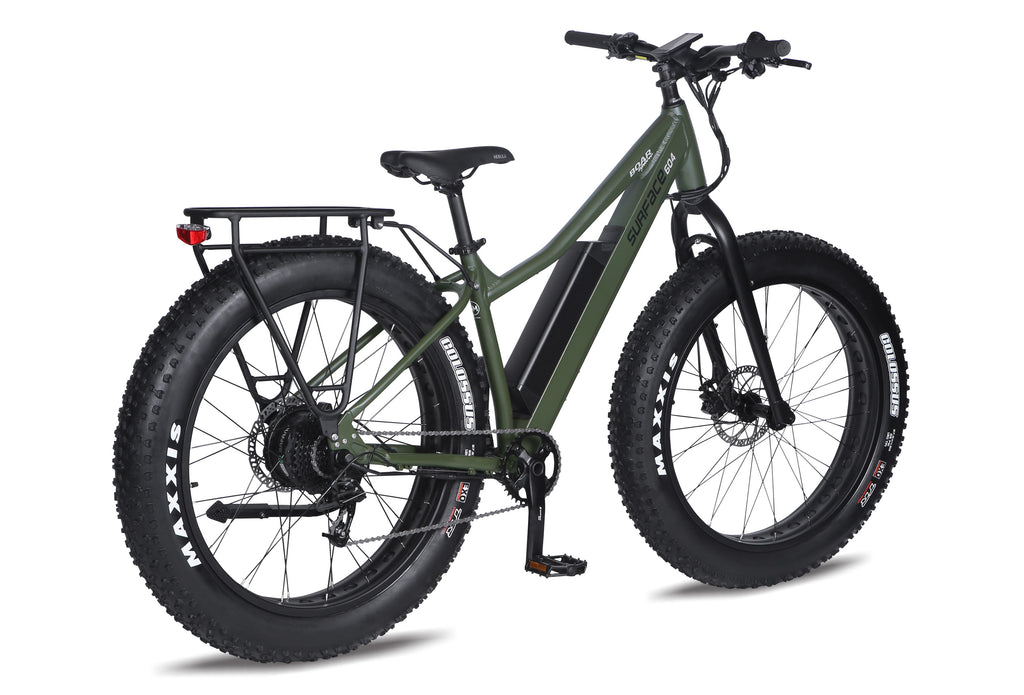

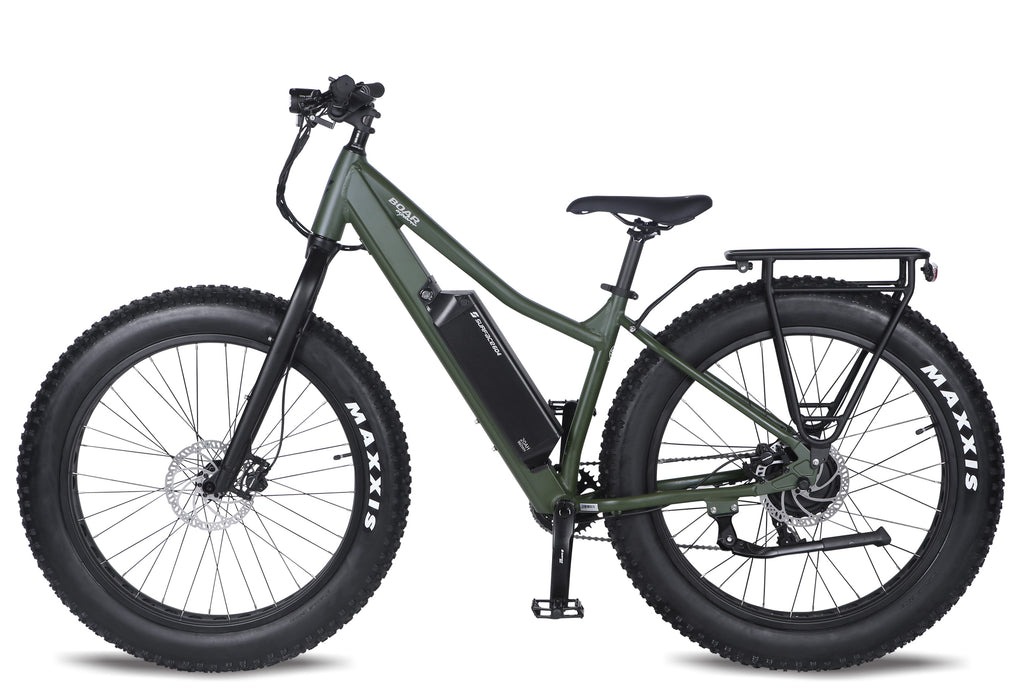

STANDOVER HEIGHT - Small-Medium: 28.5” (724mm)
SIZE REFERENCE - S/M - 17.5" Frame, For Riders: 5’2” - 5’7”
BATTERY OPTIONS - 48V14Ah (Stock)
48V20Ah (Extended Range + $400)
MOTOR
High torque 500W (Peaks At 750W) Fat Bike Specific Bafang geared hub motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
80Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
20mph (32kmh)*, Comes as Class 2
(Unlocked) 28mph (45kmh), as Class 3
BATTERY
Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18X650mm cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21X700mm cells
BATTERY RANGE
Upto 45mi (72km) with a 48V14Ah Battery
Upto 65mi (105km) with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty (Fast Charger)

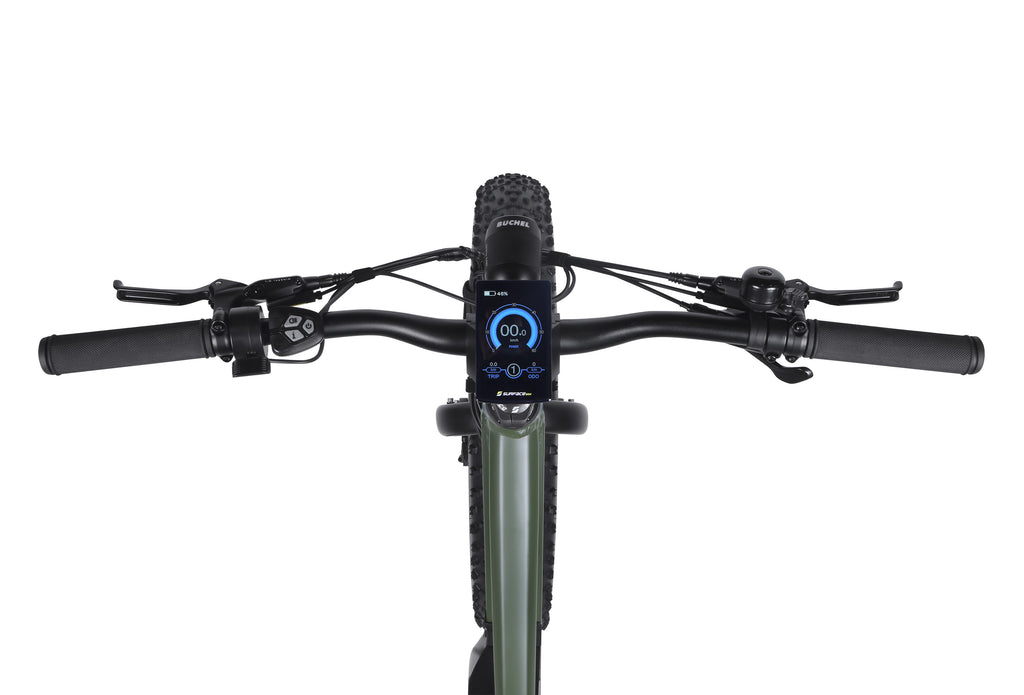

DISPLAY TYPE (NEW)
SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022
LIGHTS
BÜCHEL SHINY 120 LED Headlight
Pre-Wired To Connect Rear Stop Light
FORK
Proprietary design, tapered steerer
Custom 6061 Aluminum fork
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current (upgraded)
DERAILLEUR - REAR
SHIMANO ALIVIO 9-Speed Drivetrain
CASSETTE
SRAM 9-speed 11-34T
SHIFT LEVERS
SHIMANO ALIVIO 9-Speed
BRAKES
TEKTRO Hydraulic Disc Brakes, Post Mount,
180mm rotor with Motor Inhibitors
CRANK SET
Samox 36T front sprocket, 170mm crank arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM (NEW)
SURFACE604 3D forged alloy, barbore 31.8mm, height 45mm
HEAD SET
SAMOX tapered with sealed bearings 1 1/8” - 1 1/2”
HANDLEBAR
Promax aluminum, 670mm wide, 6° sweep,
35mm rise, 31.8mm clamp diameter
GRIPS
Full length 122mm, black colour
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
WHEELS/TIRES
MAXXIS COLOSSUS 27.5" x 4.50", EXO Protection
Dual Compound, 1415g (per tire)
RIMS
27.5" X 100mm Single Wall Aluminum Alloy Rims With Cutouts
FRONT HUBS
Aluminum Alloy 150mm x 15mm thru-axle sealed bearing
KICKSTAND
Adjustable Heavy-Duty Aluminum
STANDOVER HEIGHT
Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)
RECOMMENDED RIDER HEIGHT
Frame Sizes: S/M - 17.5", M/L - 19.5"
For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6”
NET WEIGHT (INCLUDING BATTERY)
50lbs (22.7kg)
BATTERY WEIGHT
14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs
WEIGHT CAPACITY
285lbs (130kg)
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses
OPTIONAL UPGRADE FEATURES
21700 Panasonic Cells 48V20Ah Battery

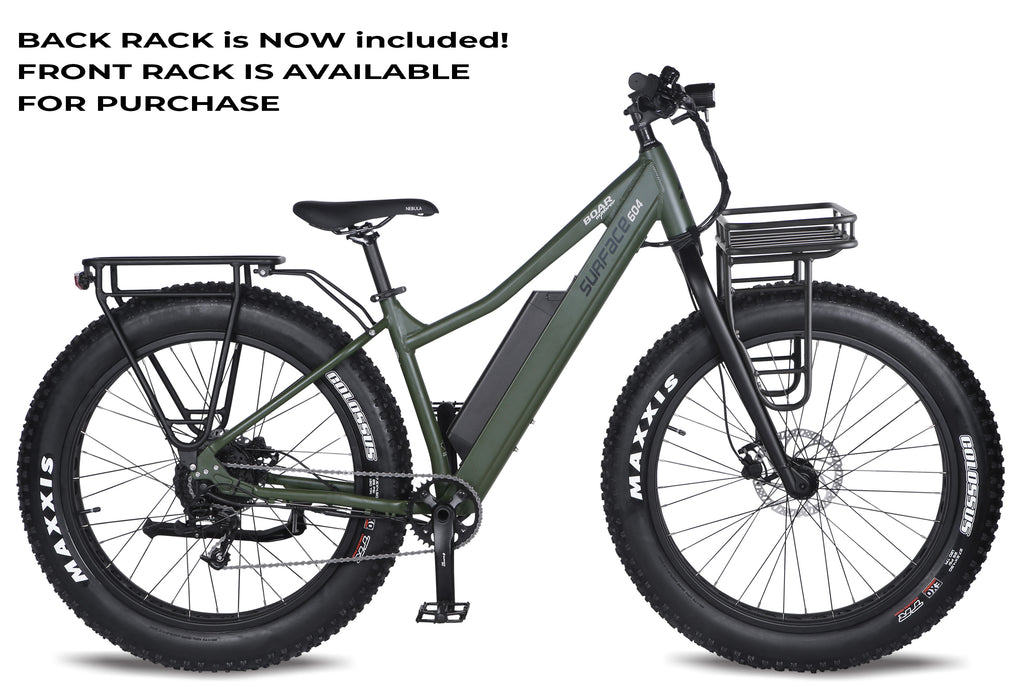

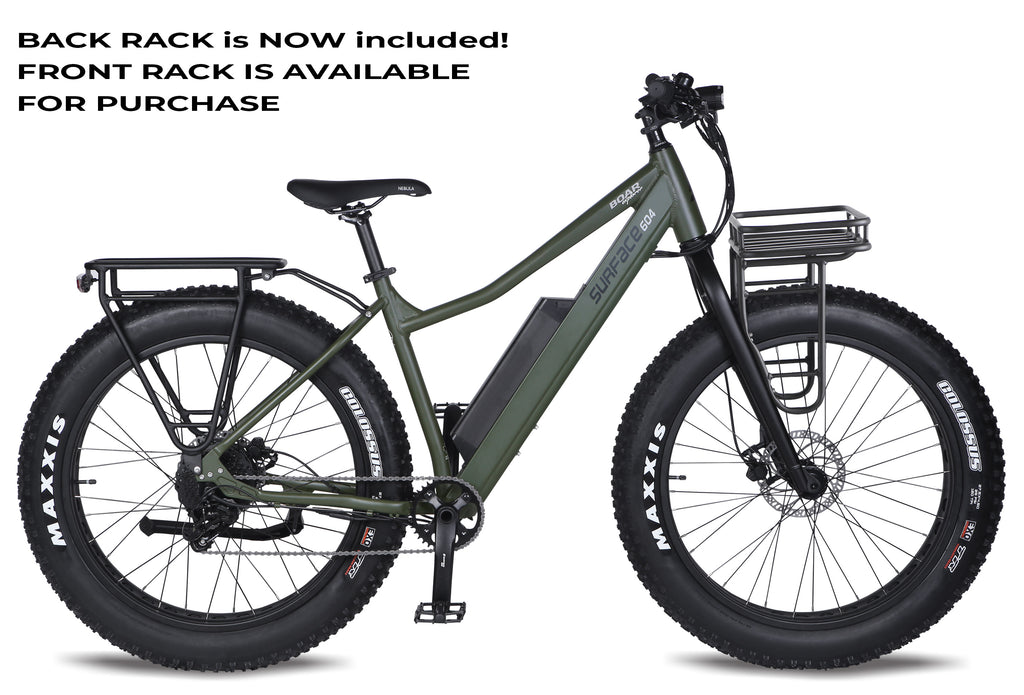

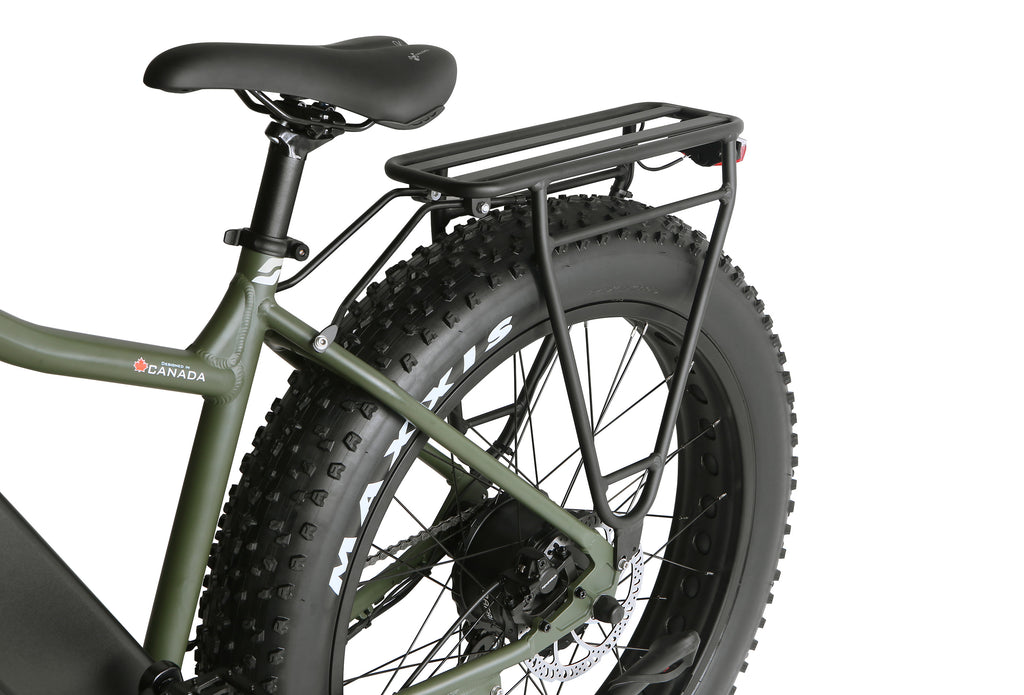

NCX Suspension Seat Post, Front Rack, Rear Rack
FORK - UPGRADED SUSPENSION
Front suspension is upgradable to Wren, Rockshox
Marzocchi of your high end choice
NEW FEATURES
Bigger wheels, wider tires - smoother ride
New handle bar - more comfortable grip and seating position
