Surface604 V-Shape Rook Low Step 500W Commuter Black
Surface604 V-Shape Rook Low Step 500W Commuter Black Surface604 V-Shape Rook Low Step 500W Commuter Black Surface604 V-Shape Rook Low Step 500W Commuter Black Surface604 V-Shape Rook Low Step 500W Commuter Black Surface604 V-Shape Rook Low Step 500W Commuter Black Surface604 V-Shape Rook Low Step 500W Commuter Black Surface604 V-Shape Rook Low Step 500W Commuter Black

Surface604 V-Shape Rook Low Step 500W Commuter Black

$3,299.00

Brand Surface604

Description

Bike Description:

The V-Shaped Rook eBike delivers unparalleled power and convenience for cyclists. Outfitted with a potent 500W hub motor that peaks at 750W, the V-Rook is the ideal choice for riders seeking that extra boost for uphill challenges, thanks to its torque sensor and on-demand throttle. The bike's high-capacity 48V14Ah Samsung lithium-ion battery, with an upgrade option to 48V20Ah, ensures impressive distances of up to 50 miles per charge. Moreover, riders can take advantage of the battery's USB plug to charge devices while on the move. With its array of features, the V-Rook promises an effortless riding experience, catering to a wide range of heights!

What Makes This Bike Special:

  • Lowest step-thru bike in the Surface 604 collection
  • One of the most popular bikes in 2022 and 2023
  • Front and rear rack storage as standard
  • Puncture resistant tires as standard

Specs & Features:

  • MOTOR
    • 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
  • UPGRADED MOTOR WIRE HARNESS
    • 30Ah, can handle up to 120C current
  • DRIVE MODE
    • Drop Out Torque Sensing Pedal Assist with a Throttle
  • TORQUE
    • 65Nm
  • THROTTLE
    • Thumb Push Activated Throttle
  • CONTROLLER
    • SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart
  • TOP SPEED
    • 20mph (32kmh)*, Comes as Class 2
    • (Unlocked) 28mph (45kmh), as Class 3
  • BATTERY
    • Included: 48V 14Ah / 672Wh
    • Samsung lithium-ion 18650 cells
    • Upgrade option: 48V 20Ah / 960Wh
    • Samsung lithium-ion 21700 cells
  • BATTERY RANGE
    • Up to 45mi (72km) with a 48V14Ah Battery
    • Up to 65mi (105km) with a 48V20Ah Battery
  • BATTERY CHARGE TIME
    • 3-4 Hours for a Full Charge from Empty (Fast Charger)
  • DISPLAY TYPE (NEW)
    • SURFACE604 Color LCD Display with USB Jack
    • Bigger display: 3.5" for 2022 vs. 3.2" for 2020
  • FORK - UPGRADED SUSPENSION
    • SR SUNTOUR XCM 27.5, 80mm with Axle Thru Hub
  • DERAILLEUR - REAR
    • SHIMANO ALIVIO 9 Speed
  • CASSETTE
    • SHIMANO 12-34T
  • BRAKES
    • TEKTRO Auriga Hydraulic Disc Brakes
    • Post Mount
  • CRANK SET
    • SAMOX 42T Front Sprocket
  • ROTORS
    • 180mm Rotor Front/Rear x 2.34mm Thick
  • BOTTOM BRACKET
    • SAMOX Sealed Bottom Bracket
  • FRAME TYPE
    • Tapered Headtube, Custom Reinforced Battery Mounts,
    • Internal Cable Routing, Post Mount Brakes
  • FRAME MATERIAL
    • 6061 Aluminum Alloy
  • STEM
    • SATORI Up2+, Adjustable
  • FENDERS
    • SKS fenders made in Germany
  • LIGHTS
    • BÜCHEL SHINY 120 front headlight / rear light (optional)

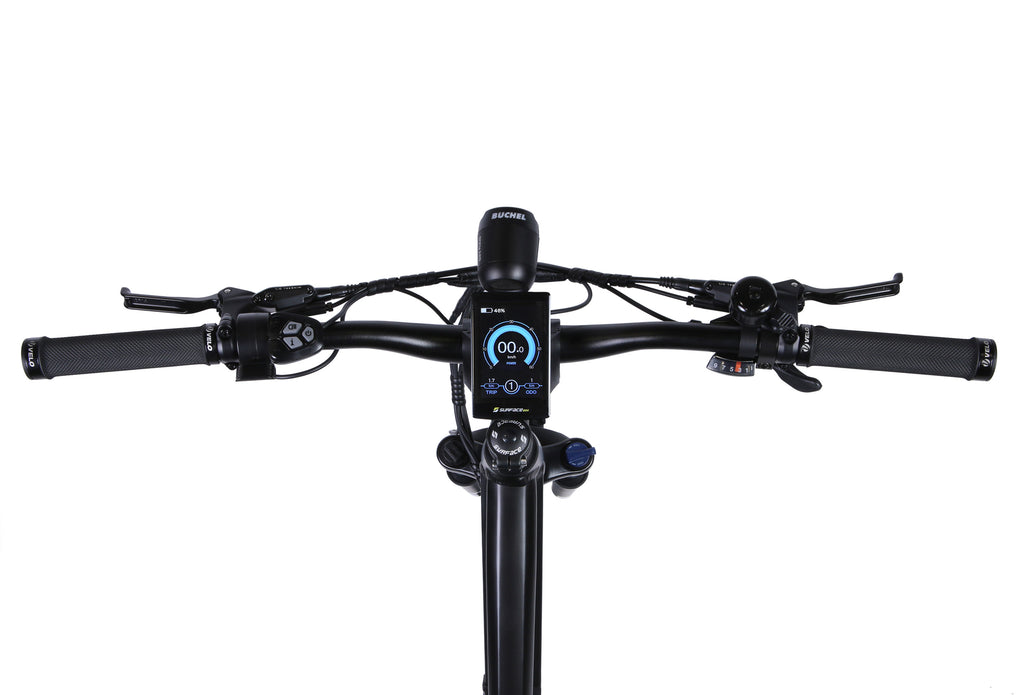

  • HANDLEBAR
    • PROMAX Aluminum, 30mm Rise With 45° Backsweep, 710mm Wide
  • GRIPS
    • PU Leather Wrapped, Full Length 145mm
  • PEDALS
    • WELLGO Platform, with Die Casting Body
  • CHAIN
    • KMC 9-Speed
  • SEAT POST DIAMETER
    • 30.4mm
  • SADDLE
    • Selle Royale saddle "Essenze Plus", with elastometer, for seat angle up to 90° (Relaxed), suitable for City/Tour use.
  • WHEELS/TIRES
    • 27.5" X 2.4" Custom S604 Panaracer Tires With Puncture Protections 3mm “Green Shield” technology, 40% more puncture proof then regular tire.
  • RIMS
    • Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
  • KICKSTAND
    • Adjustable Heavy-Duty Aluminum
  • STANDOVER HEIGHT
    • Small-Medium: 28.5” (724mm)
    • Medium-Large: 30” (762mm)
  • RECOMMENDED RIDER HEIGHT
    • Frame Sizes: S/M - 17.5", M/L - 19.5"
    • For Riders: S/M 5’2”-5’7”, M/L 5’8” - 8’8”
  • NET WEIGHT (INCLUDING BATTERY)
    • 80lbs
  • WEIGHT CAPACITY
    • 285lbs (130kg)
  • STANDARD FEATURES
    • Welded Rear Rack, Adjustable Kickstand, Water Bottle Bosses
  • OPTIONAL UPGRADE FEATURES
    • 21700 Panasonic Cells 48V20Ah Battery, NCX Suspension Seat Post
  • NEW FEATURES
    • New Custom built front rack mounts and front rack designed specifically for V Rook
    • It comes with a removable wooden panel and two water bottle cage mounts
    • Rack can hold up to 20kg (45 LBS)
    • Bigger wheels, wider tires for smoother ride
    • New handle bar - more comfortable grip and seating position

Additional Information:

The V-Shaped Rook comes equipped with a 500W hub motor that is extremely powerful (peaks at 750W). With a torque sensor and throttle on demand, the V-Rook is great for those that could benefit from an extra boost to make it up the hill.

Our high capacity 48V14Ah (48V20Ah - upgrade) Samsung lithium-ion battery provides maximum range, as the V-Rook can handle heavy loads and travel up to 50 miles on a single charge.

As an added bonus, the battery also features a USB plug for charging mobile devices on the go.

The V-Rook is fully loaded with every feature needed to make riding effortless.

STANDOVER HEIGHT - Small-Medium: 28.5” (724mm)

                                        Medium-Large: 30” (762mm)

SIZE REFERENCE - Frame Sizes: S/M - 17.5", M/L - 19.5"

                                 For Riders: S/M 5’2”-5’7”, M/L 5’8” - 8’8”

BATTERY OPTIONS - 48V14Ah (Stock)

                                    48V20Ah (Extended Range + $400)
