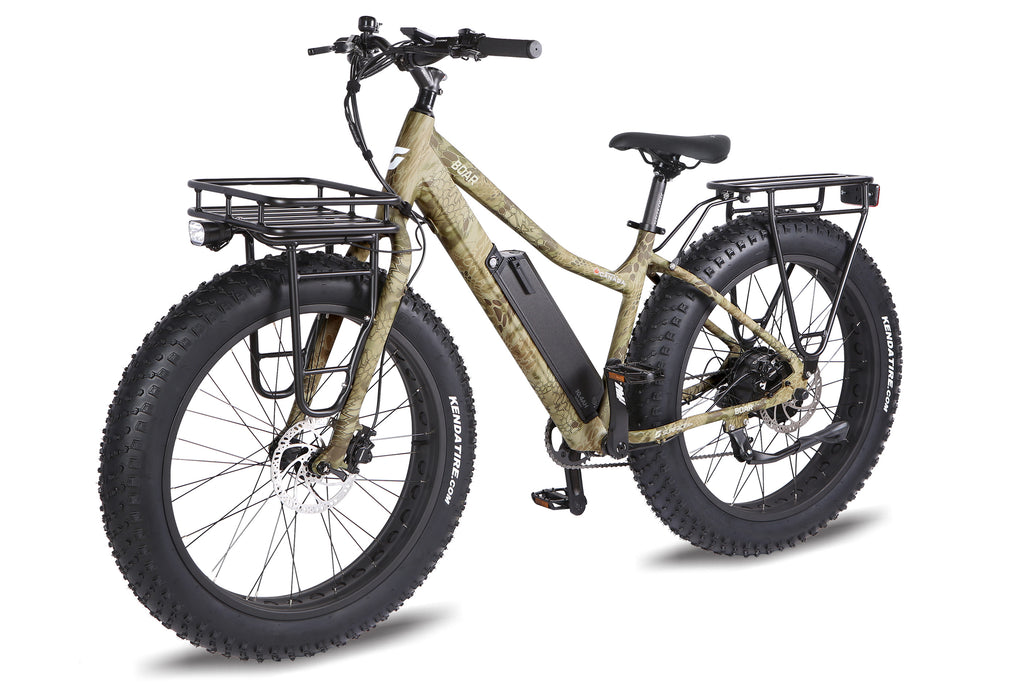

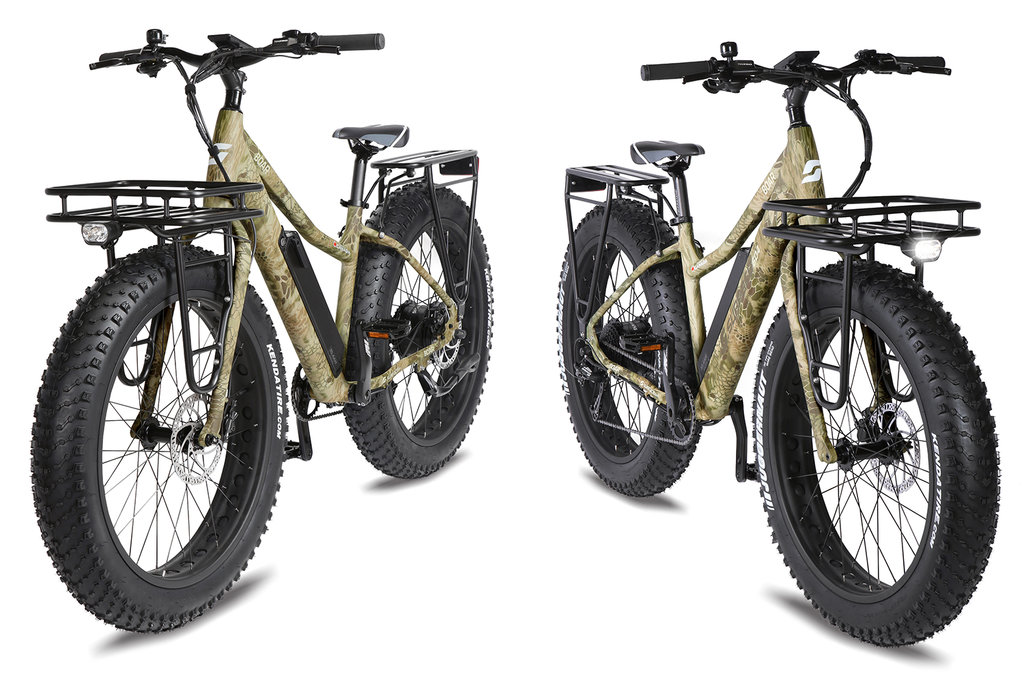

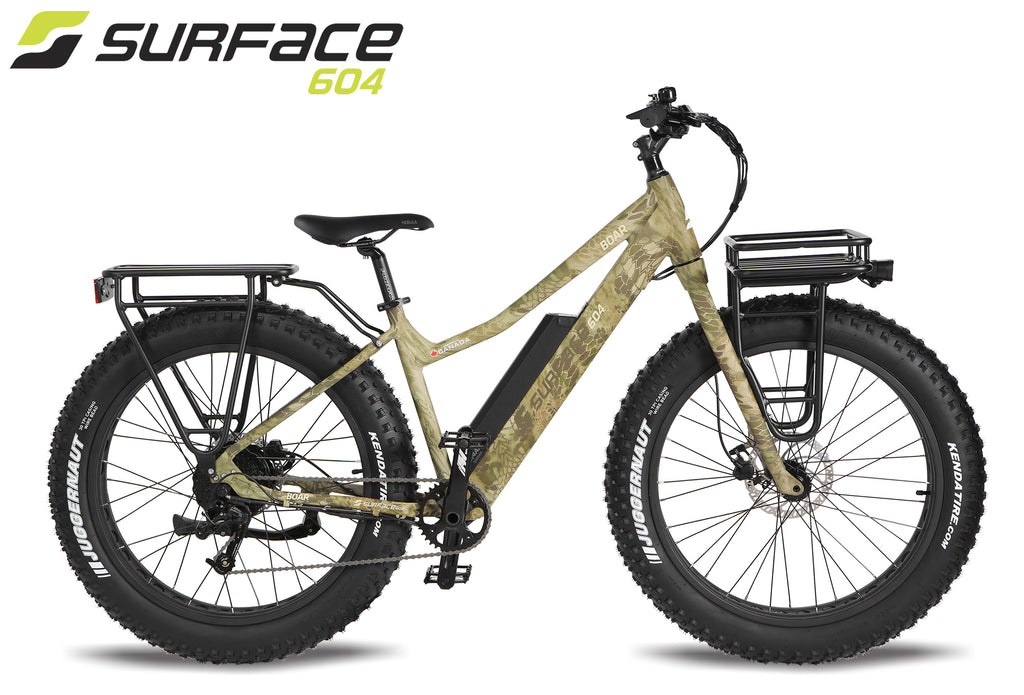

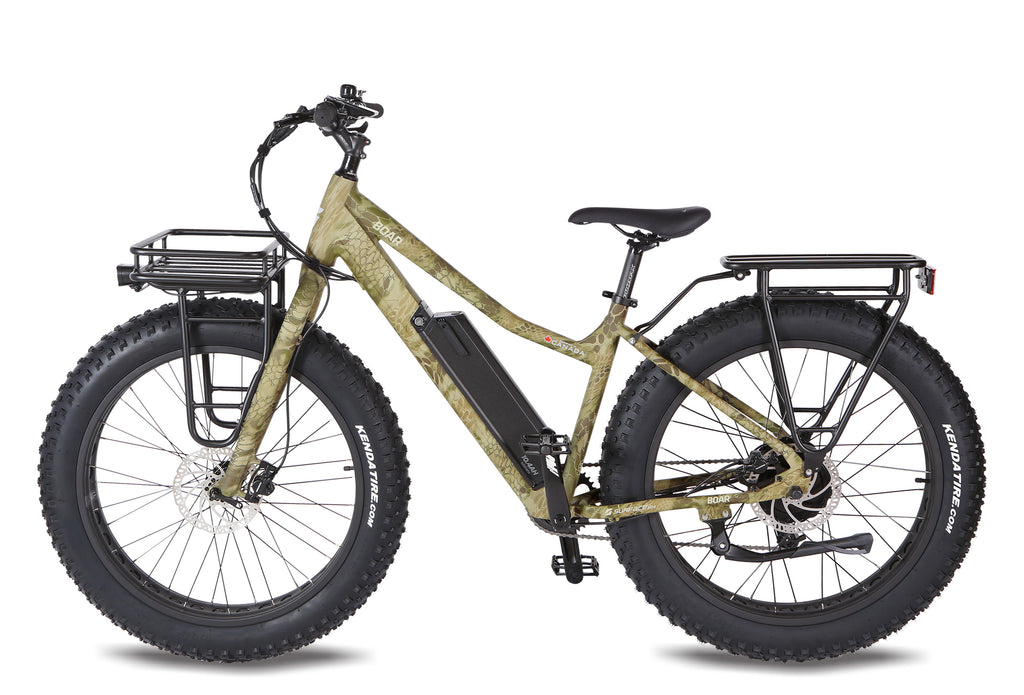

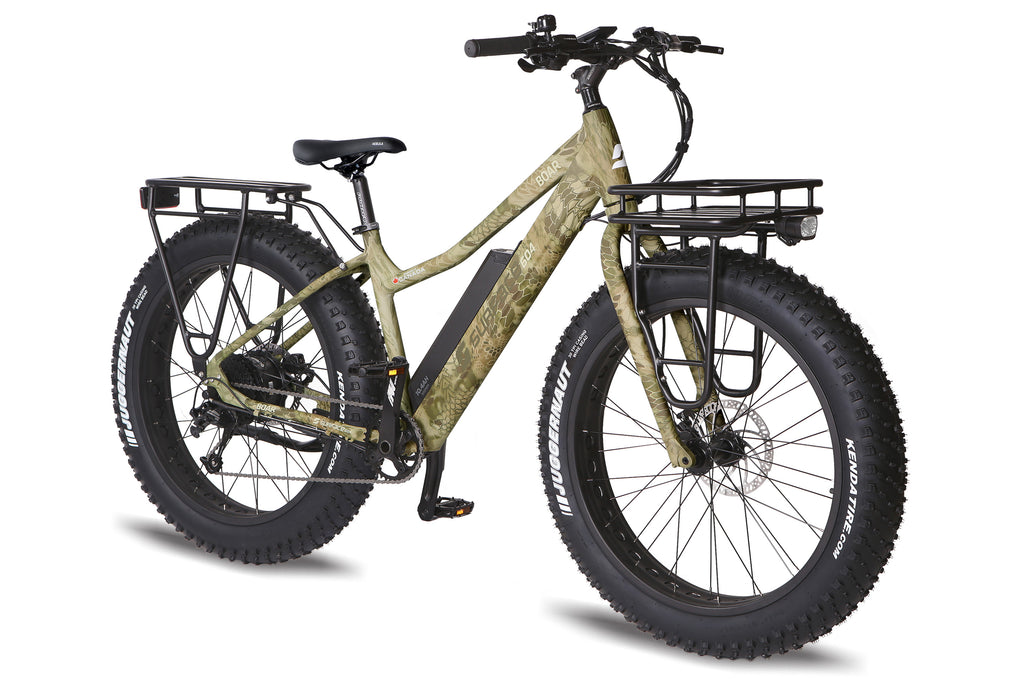

SURFACE 604 - BOAR Camo Fat Bike 2022

The Boar comes equipped with a fat bike specific 500W motor that is extremely powerful (peaks at 750W). With a torque sensor and throttle on demand, the Boar is well suited to carry heavy loads and is often referred to as the pickup truck of bikes.

We designed the Boar with the avid outdoorsman in mind and thus knew that partnering with Kryptek, and industry leader in high-performance technical outdoor adventure apparel design, was a great fit!

As such, the Boar features the Kryptek Highland Camo that is specially designed for geographical regions and elevations that are varied and increases stealth in mixed terrain.

The Boar comes standard with lots of extra features that were added to make the riding experience more comfortable.

STANDOVER HEIGHT - Small-Medium: 28.5” (730mm)

                                        Medium-Large: 30” (760mm)

SIZE REFERENCE - S/M 17.5" Frame, for riders 5'2"-5'7"

                                M/L 19.0" Frame, for riders 5'8"-6'6"

BATTERY OPTIONS - 48V14Ah (Stock)

                                     48V20Ah (Extended Range + $400)

MOTOR

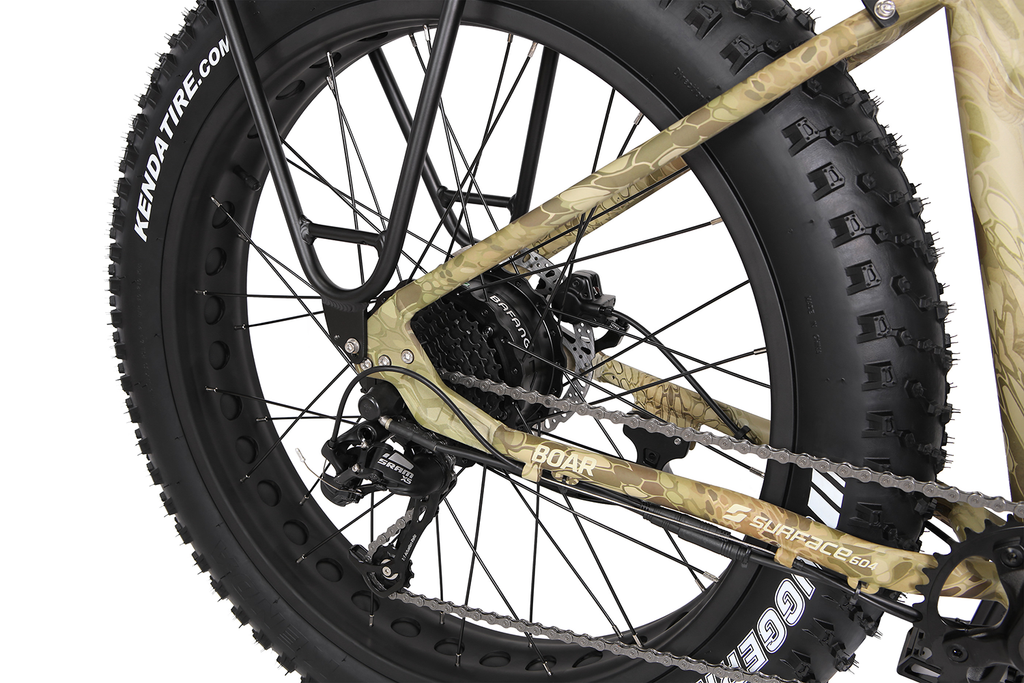

High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang geared hub motor

DRIVE MODE

Drop Out Torque Sensing Pedal Assist with a Throttle

UPGRADED MOTOR WIRE HARNESS

30Ah, can handle up to 120C current

TORQUE

80Nm of Torque

THROTTLE

Thumb push activated throttle

CONTROLLER

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

TOP SPEED

20mph (32kmh)*, Comes as Class 2

(Unlocked) 28mph (45kmh), as Class 3

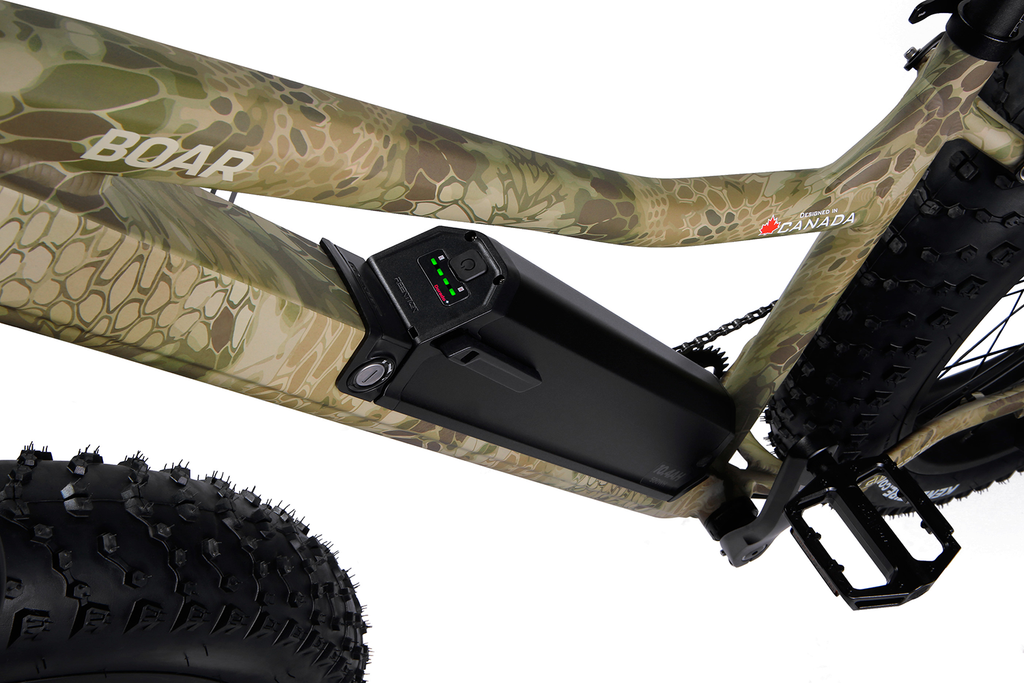

BATTERY

Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18X650mm cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21X700mm cells

BATTERY RANGE

Upto 45mi (72km) with a 48V14Ah Battery
Upto 65mi (105km) with a 48V20Ah Battery

BATTERY CHARGE TIME

3-4 Hours for a Full Charge from Empty

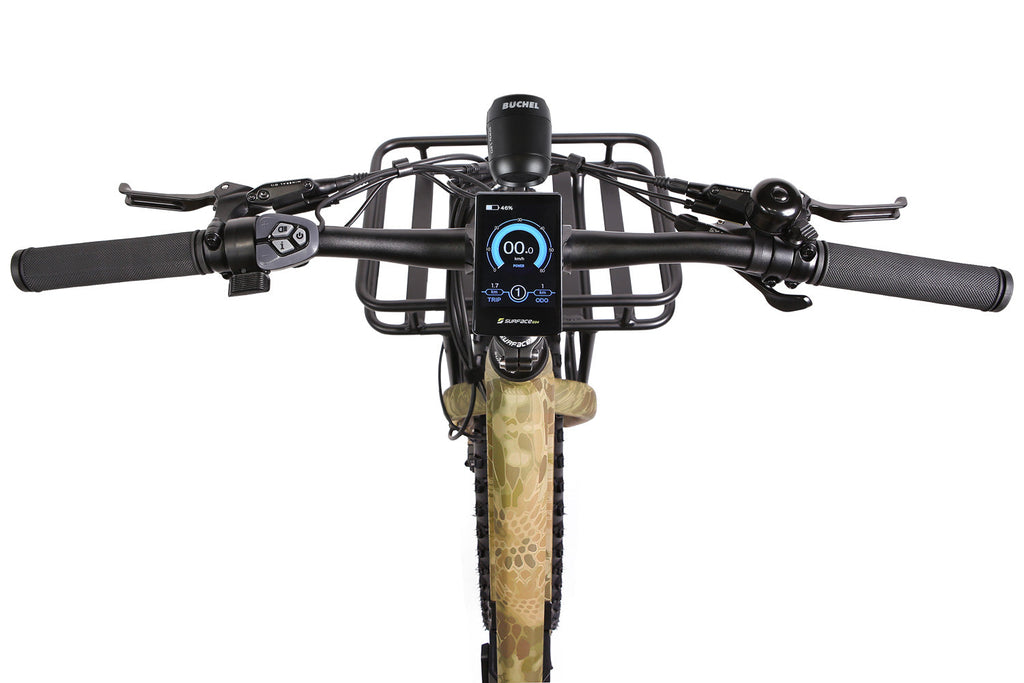

DISPLAY TYPE (NEW)

SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022

LIGHTS

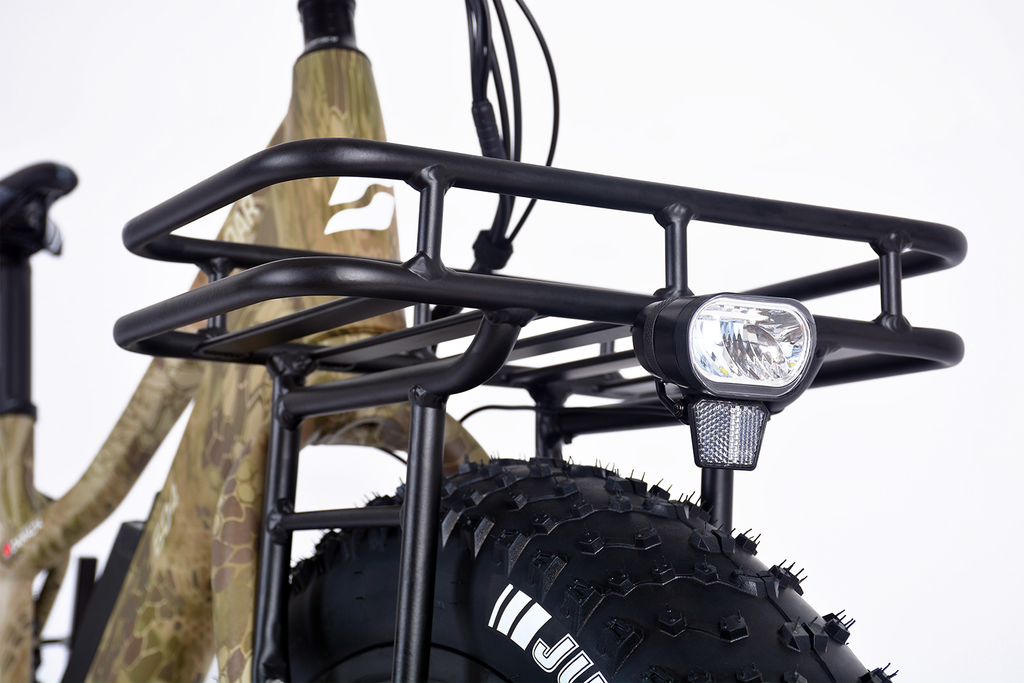

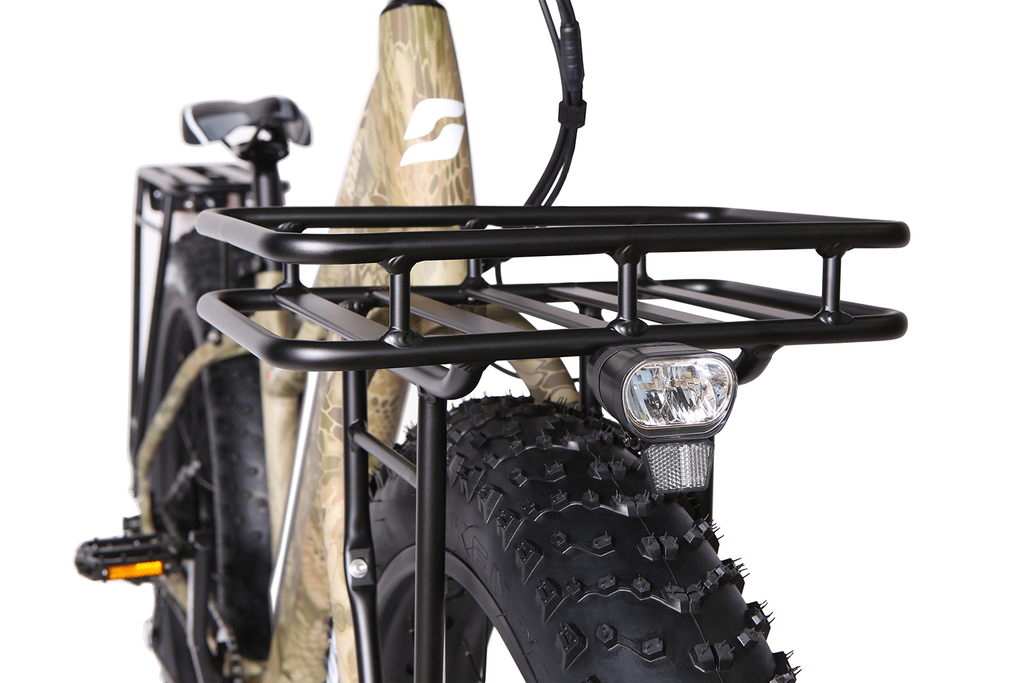

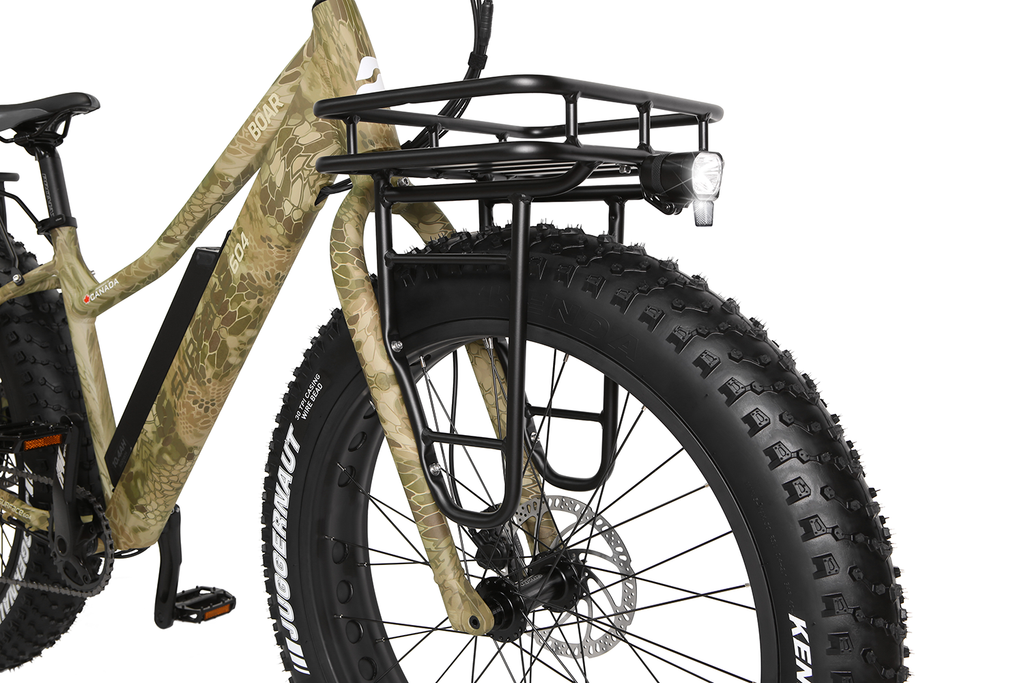

BÜCHEL Powerful AXENDO LED Headlight
Pre-Wired To Connect Rear Stop Light

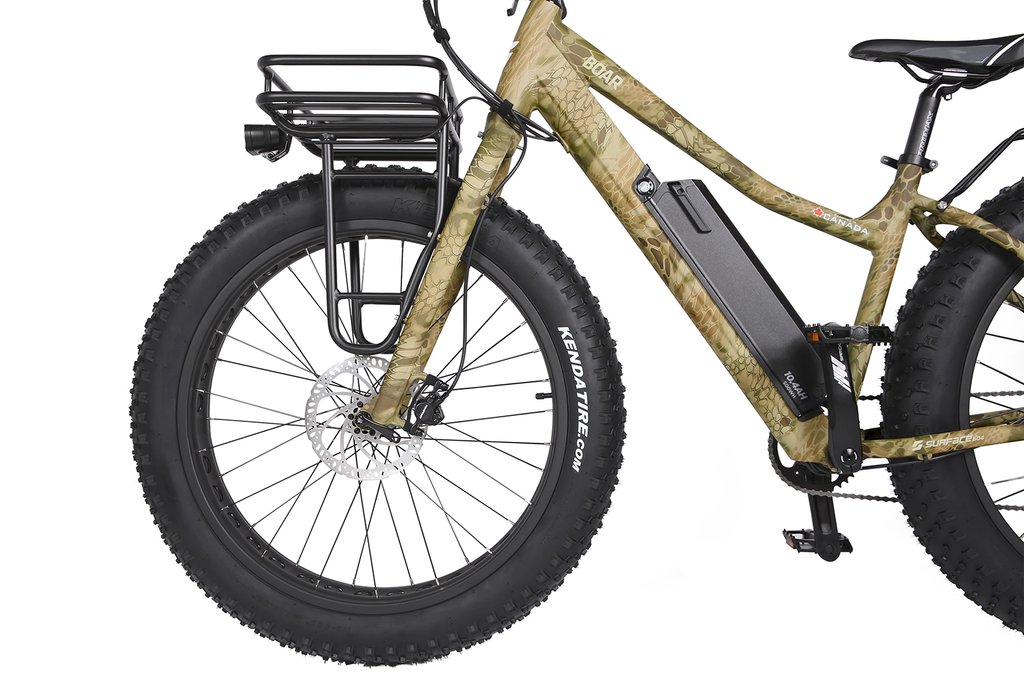

FORK

Proprietary design, tapered steerer
Custom 6061 Aluminum fork

DERAILLEUR - REAR

SRAM X5, 9-Speed

CASSETTE

SRAM 9-speed 12-34T

SHIFT LEVERS

SRAM X5 Trigger Shift

BRAKES

TEKTRO AURIGA Hydraulic Disc Brakes, Post Mount,
180mm rotor with Motor Inhibitors

CRANK SET

SAMOX 36T front sprocket, 170mm crank arms

ROTORS

180mm Front/Rear x 2.34mm Thick

BOTTOM BRACKET

SAMOX Sealed Bottom Bracket

FRAME TYPE

Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL

6061 Aluminum Alloy

STEM (NEW)

eMTB specific Ergotec Bass 31.8mm

HEAD SET

SAMOX tapered with sealed bearings 1 1/8” - 1 1/2”

HANDLEBAR

Promax aluminum, 670mm wide, 6° sweep,

35mm rise, 31.8mm clamp diameter

GRIPS

Full length 122mm, black colour

PEDALS

WELLGO Platform, with Die Casting Body

CHAIN

KMC 9-Speed

SEAT POST DIAMETER

30.4mm

SADDLE

SR Selle Royal Nebula

WHEELS/TIRES

Kenda Juggernaut Sport 26” x 4.50”

RIMS

26" X 100mm Single Wall Aluminum Alloy Rims With Cutouts

FRONT HUBS

Surface604 Aluminum

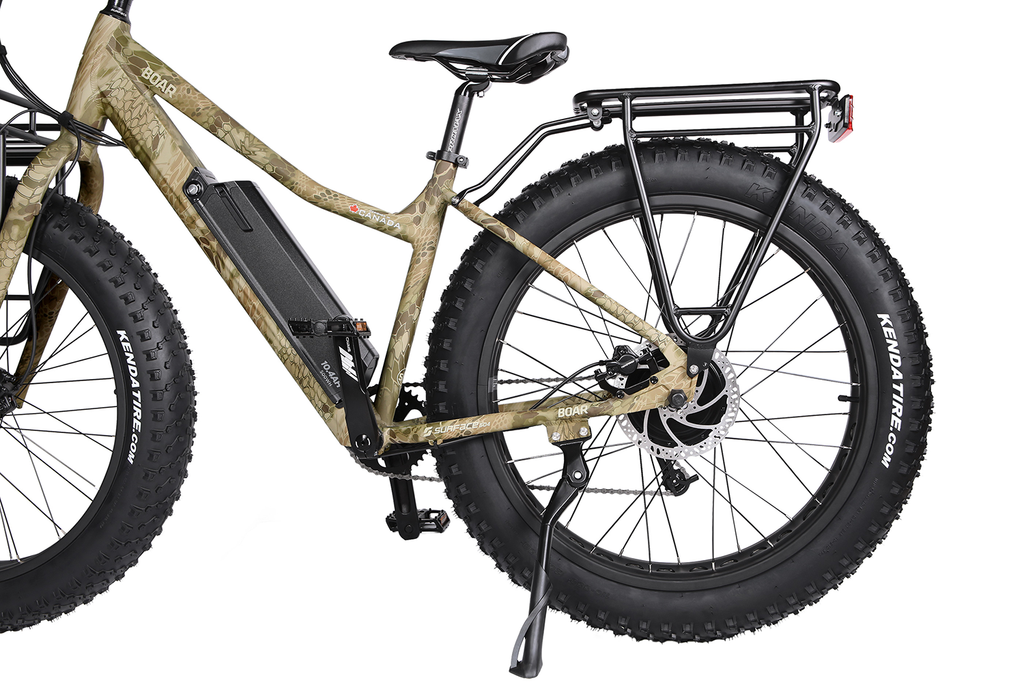

KICKSTAND

Adjustable Heavy-Duty Aluminum

STANDOVER HEIGHT

Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)

RECOMMENDED RIDER HEIGHT

For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6”
Frame Sizes: S/M - 17.5”, M/L - 19.5”

NET WEIGHT (INCLUDING BATTERY)

50lbs (22.7kg)

BATTERY WEIGHT

14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs

WEIGHT CAPACITY

285lbs (130kg)

STANDARD FEATURES

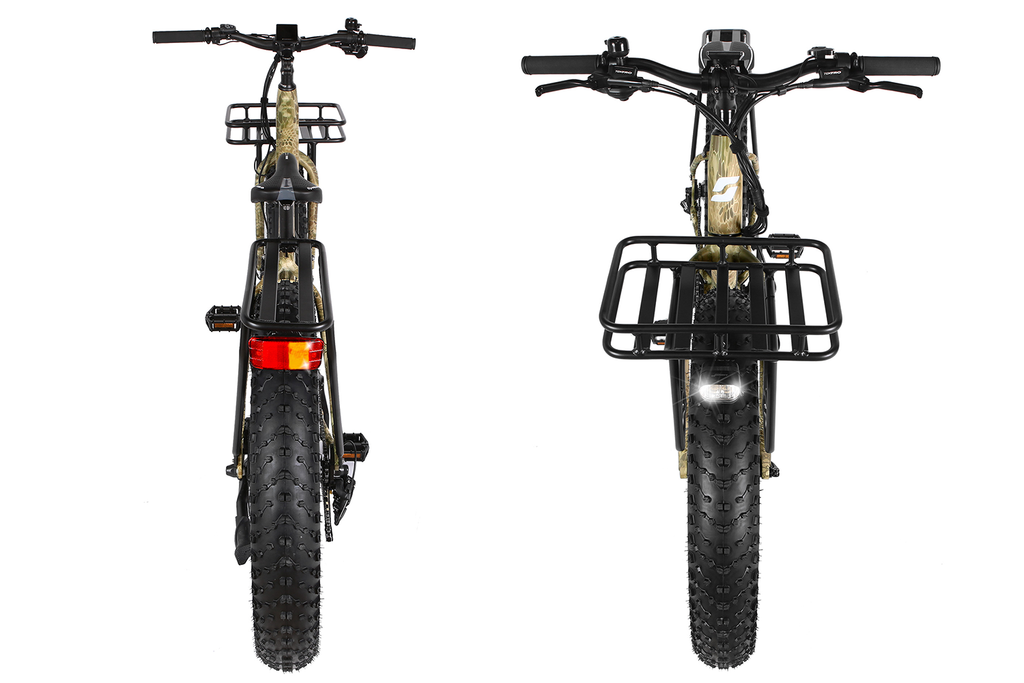

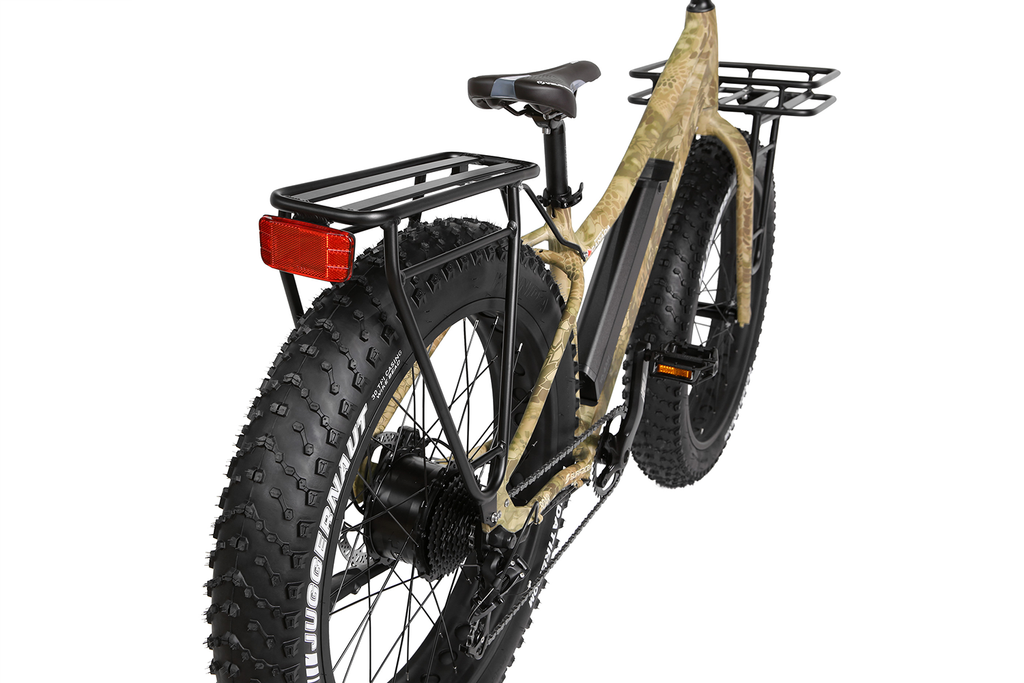

Welded Rear Rack, Front Rack, Adjustable Kickstand
Chain Guide, Water Bottle Bosses

OPTIONAL UPGRADE FEATURES

21700 Panasonic Cells 48V20Ah Battery
NCX Suspension Seat Post

FORK - UPGRADED SUSPENSION

Front suspension is upgradable to Wren, Rockshox
Marzocchi of your high end choice

NEW FEATURES

Bigger wheels, wider tires - smoother ride
New handle bar - more comfortable grip and seating position
