Surface604  |  SKU: 22-S604SHRDSM4814

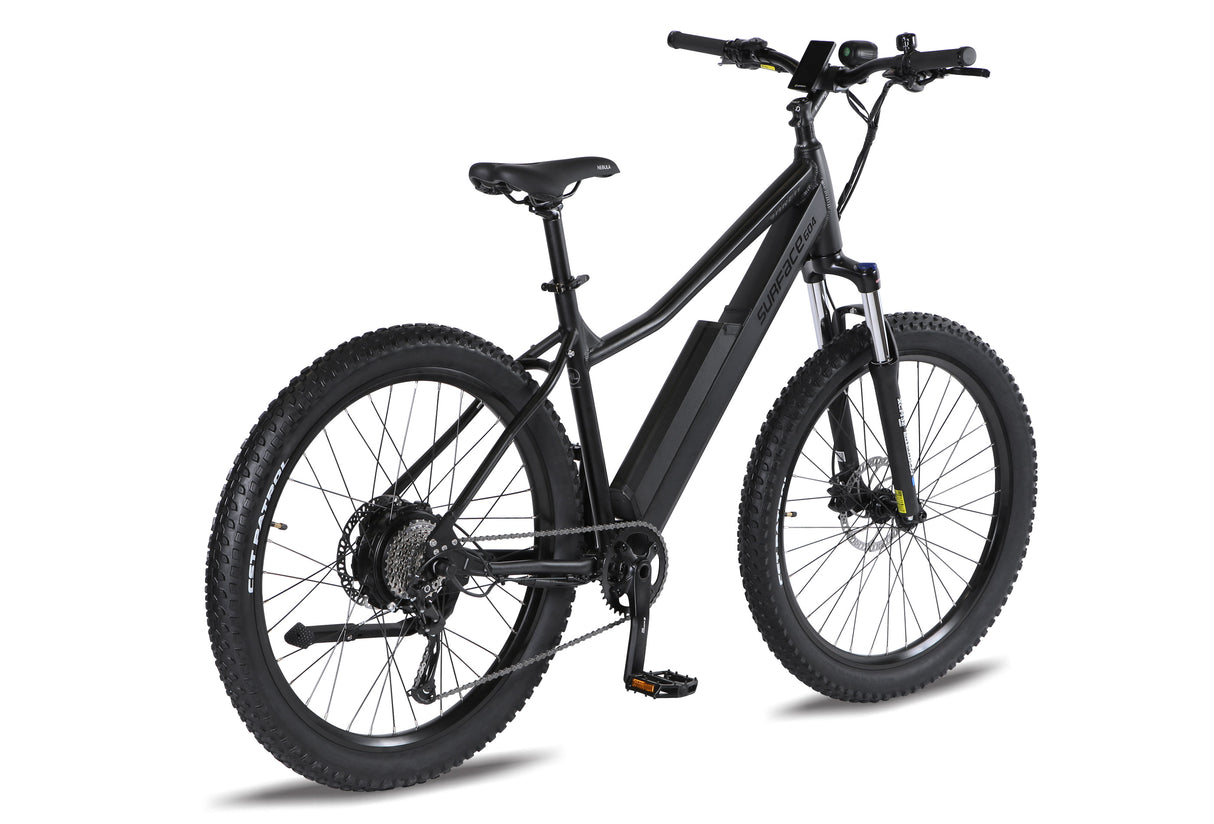

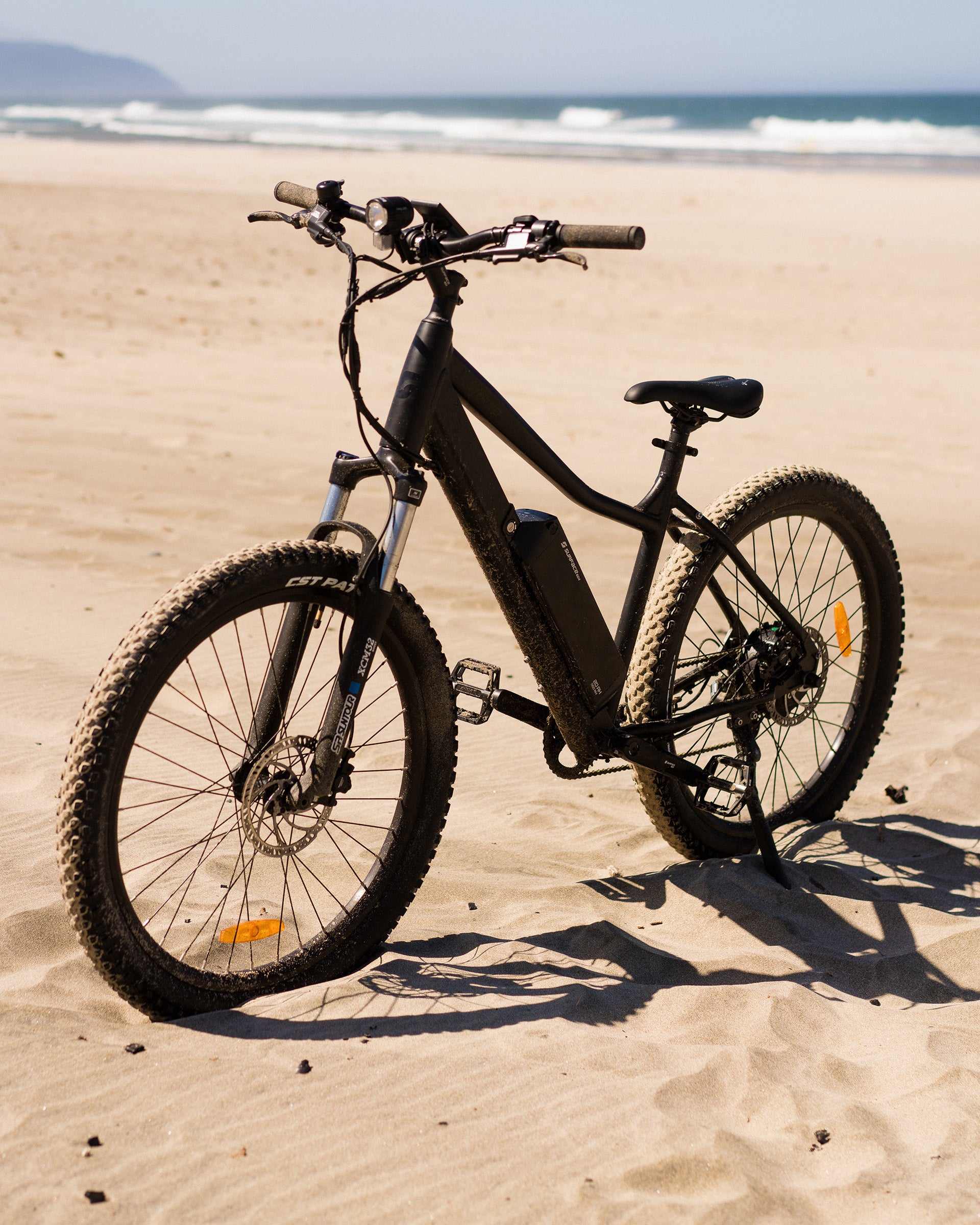

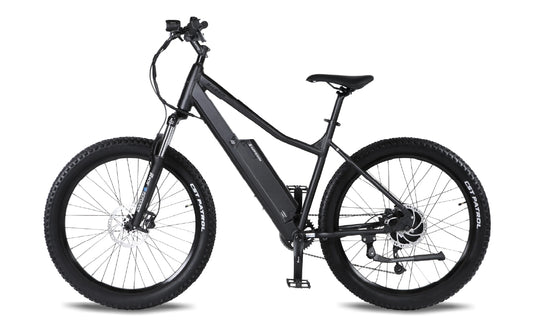

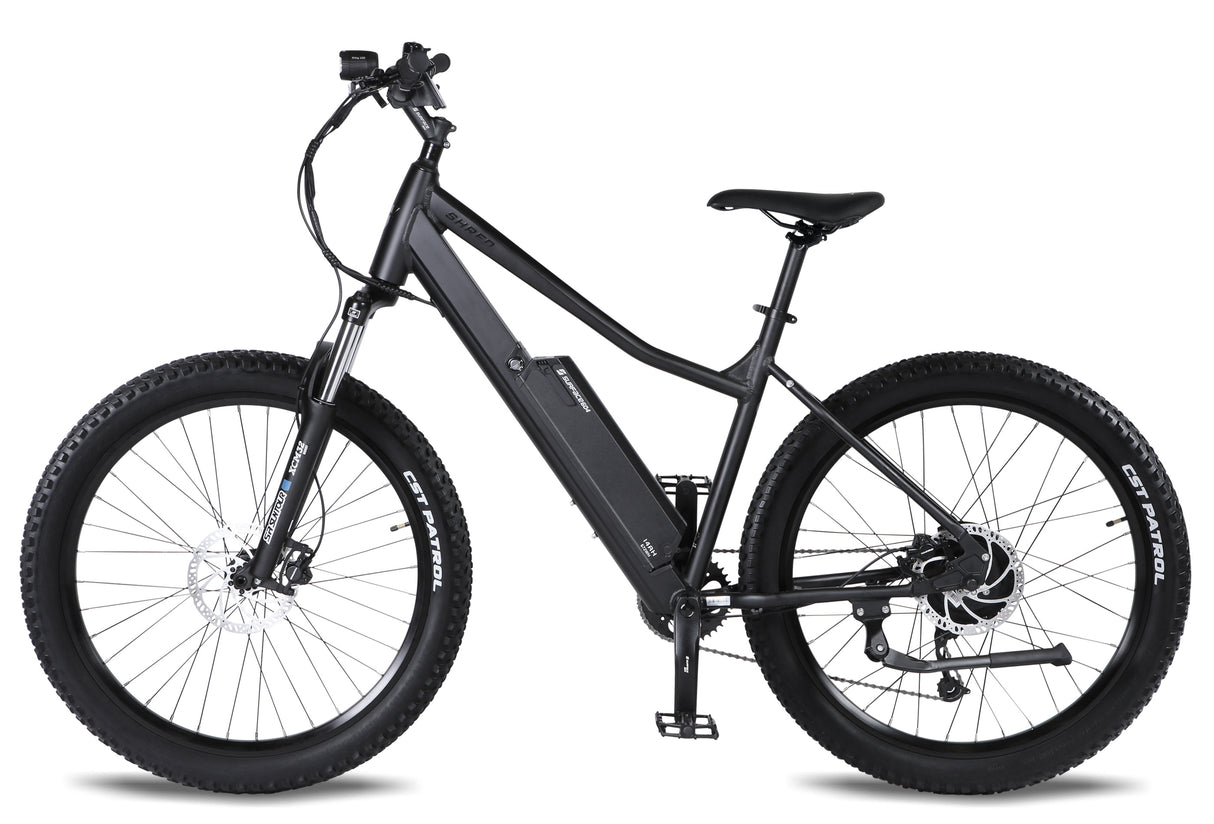

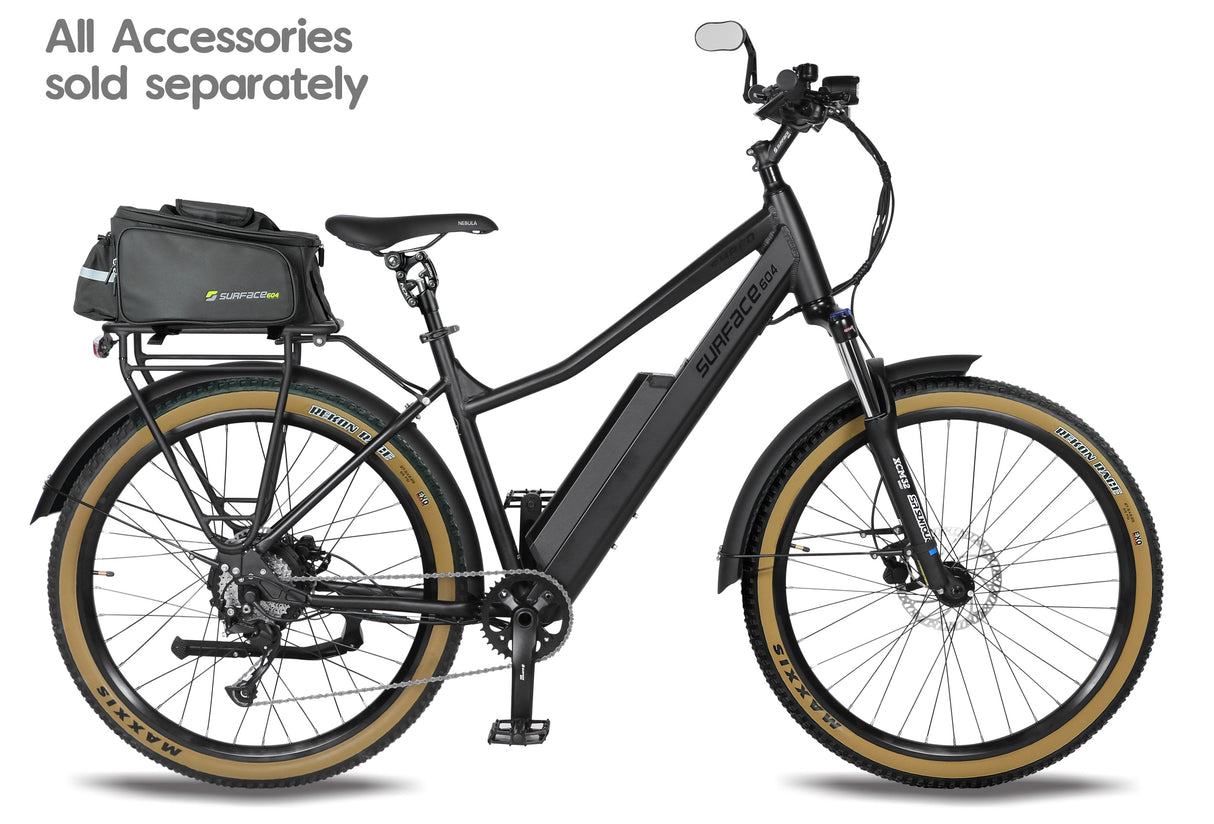

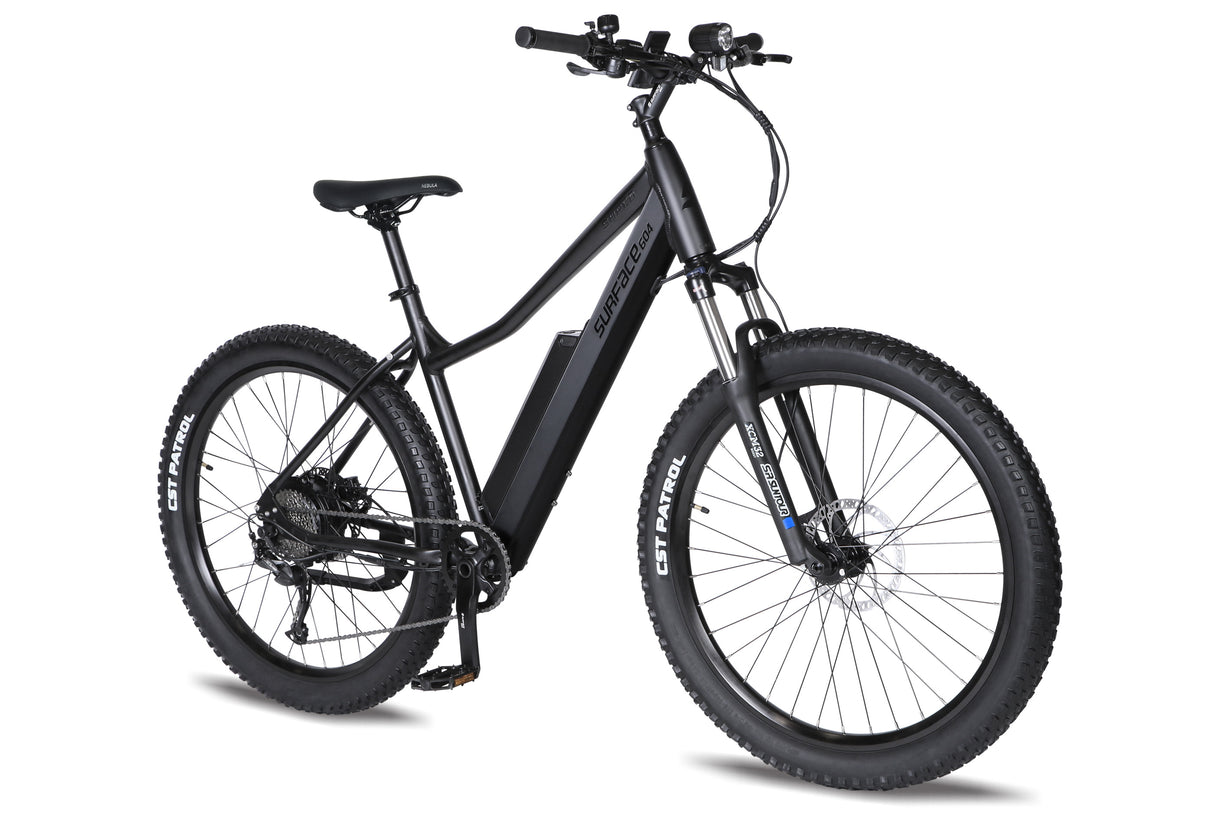

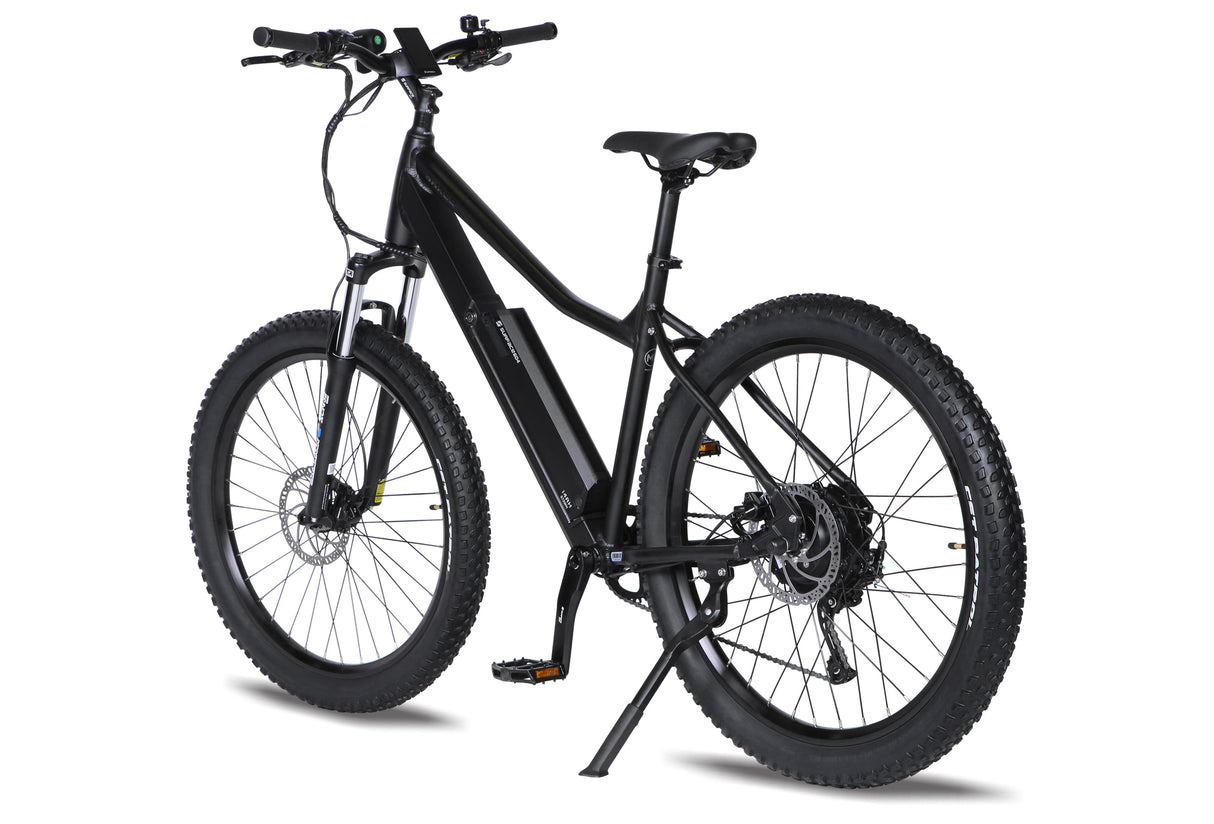

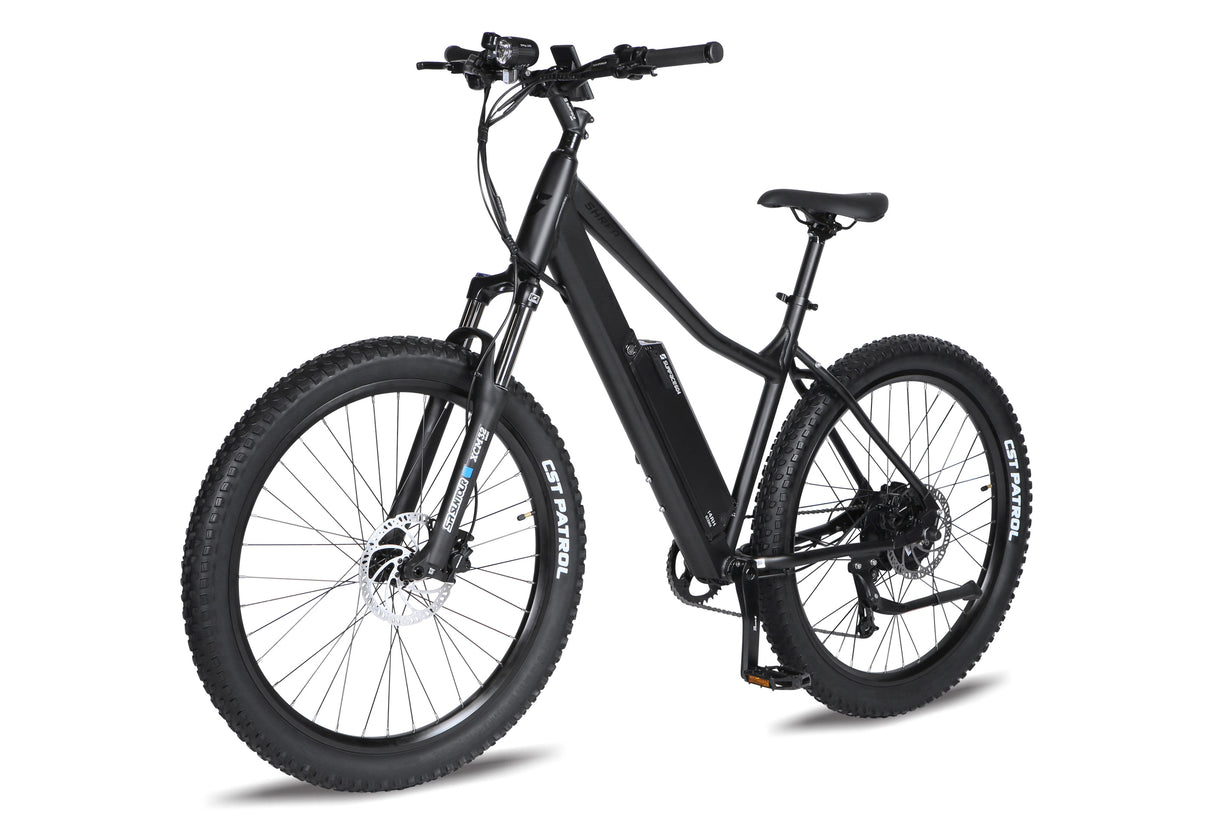

Surface 604 Shred Hardtail eMTB

Available at our Calgary Location
$2,599.99 $3,500.00
Size
Battery

Delivery and Shipping

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

32-48
KM/H
TOP SPEED
72-105
KM
RANGE
285
LBS
CAPACITY

The Surface 604 Shred is a trail-ready hardtail mountain e-bike that balances power, comfort, and versatility. Built on a sturdy aluminum frame with 27.5″ wheels and plus-sized tires, it’s driven by a 500-watt (peaks at 750-watts) Bafang hub motor paired with a high-capacity 48V 20Ah battery that provides you around 105 km (65 mi) of riding per charge.

Torque-sensing pedal assist, hydraulic disc brakes, a 9-speed SRAM X5 drivetrain, and a SR Suntour suspension fork make it a reliable and confident choice for riders exploring varied terrain.

The Shred is the perfect entry-level eMTB that offers upgrade headroom and turnkey trail performance.

Video



Key Features

  • Motor & Battery: 500-watt (peaks at 750-watts) Bafang geared hub motor with torque-sensing pedal assist and thumb throttle; 48 V 20 Ah (960 Wh) Samsung lithium-ion battery (also available in 48 V 14 Ah option)
  • Top Speed & Range: Approximate top speed of 32 km/h (20 mph) in Class 2 mode (unlockable to ~48 km/h / 30 mph); range up to ~105 km (65 mi)
  • Braking & Gearing: Tektro Dorado quad-piston hydraulic disc brakes with motor inhibitors; SRAM X5 9-speed drivetrain
  • Comfort & Traction: CST Patrol 27.5″ × 2.8″ tires; SR Suntour XCM 32 fork with up to 130 mm travel (110 mm in some models)
  • Controls & Display: 3.5″ Surface 604 fixed-color LCD display with USB port; thumb-activated throttle, torque-sensing pedal assist with adjustability between Class 2 and Class 3 modes
  • Extras for Everyday Ride: Integrated Büchel Shiny 120 front headlight (pre-wired for rear light), Selle Royal ergonomic gel saddle, internal cable routing, multiple mounting points for accessories
  • Warranty & Build: Reinforced 6061 aluminum frame with post-mount brake compatibility, backed by a 1-year warranty on electronics and parts, and 3-year coverage on the frame

Let's Get Technical

Battery

Included: 48V14Ah/672Wh, Samsung lithium-ion 18650 cells; Upgrade option: 48V20Ah/960Wh, Samsung lithium-ion 21700 cells

Controller

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

Display

SURFACE604 Color LCD Display with USB Jack, Bigger display: 3.5"

Charger

3-4 Hours for a Full Charge from Empty, Fast Charger is Sold Separately

Throttle

Thumb Push Activated Throttle

Lights

BÜCHEL LED Headlight, Pre-Wired To Connect Rear Stop Light

Detailed Specs
Motor Details eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
Brakes TEKTRO Hydraulic Disc Brakes, Post Mount, with Motor Inhibitors
Throttle Thumb Push Activated Throttle
Battery Included: 48V14Ah/672Wh, Samsung lithium-ion 18650 cells; Upgrade option: 48V20Ah/960Wh, Samsung lithium-ion 21700 cells
Range Details Up to 45mi (72km) with a 48V14Ah Battery
Up to 65mi (105km) with a 48V20Ah Battery
Pedal Assist Drop Out Torque Sensing Pedal Assist with a Throttle
Lights BÜCHEL LED Headlight, Pre-Wired To Connect Rear Stop Light
Display SURFACE604 Color LCD Display with USB Jack, Bigger display: 3.5"
Controller SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Charger 3-4 Hours for a Full Charge from Empty, Fast Charger is Sold Separately
Cables Internal Cable Routing
Drive Type Hub Drive
Fork SR Suntour XCM32 BOOST, 110mm Axle Thru Hub, 130mm travel
Shift Levers SRAM X5 Trigger Shift
Rotors 180mm Front/Rear x 2.34mm Thick
Pedals WELLGO Platform, with Die Casting Body
Chain KMC 9-Speed
Derailleur SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
Cassette SRAM 12-34T
Crank Set SAMOX 38T Front Sprocket, 170mm Crank Arms

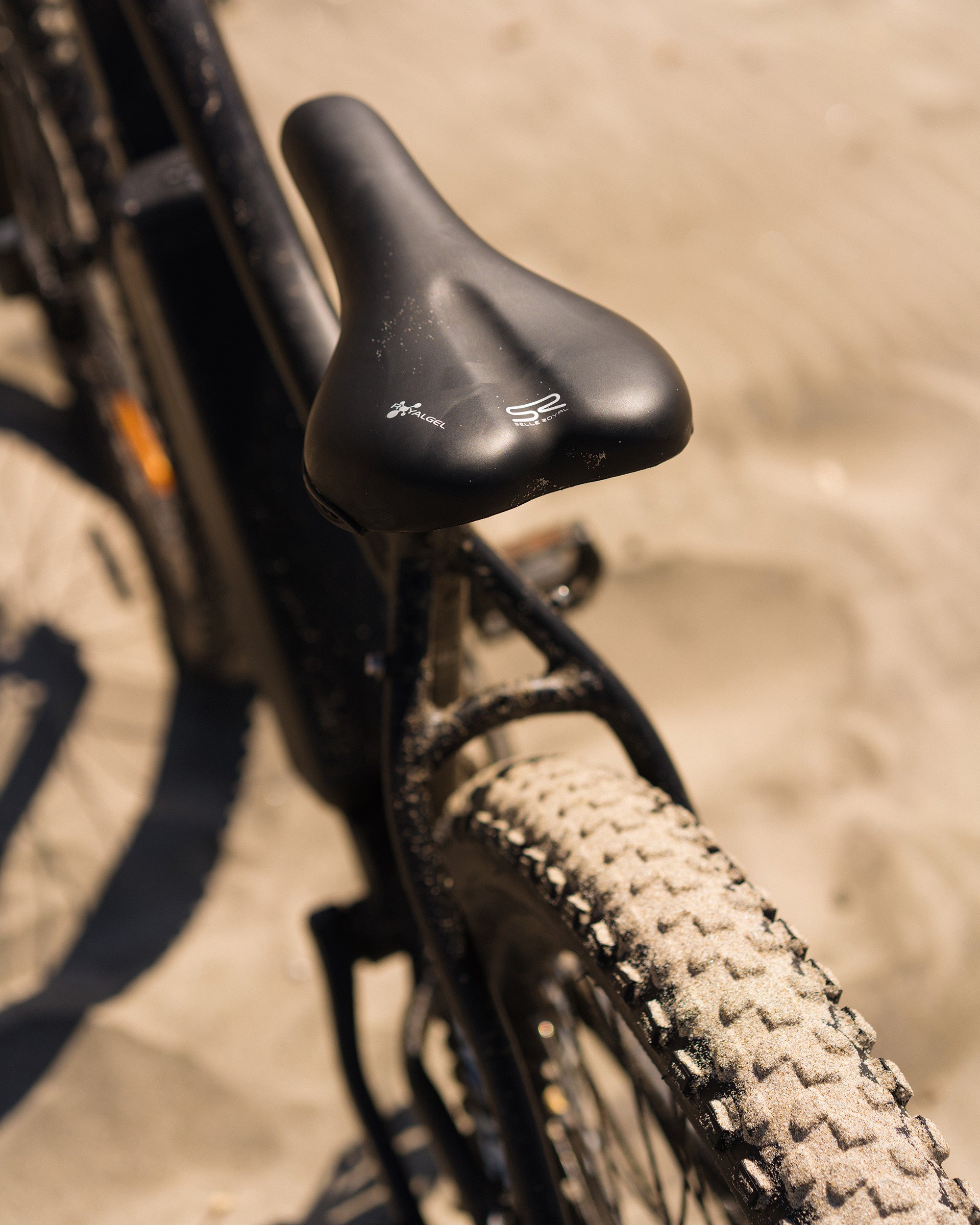

Seat Selle Royal "Essenza Plus" Gel Saddle. Designed for trail, road use. Adjustable up to 9 degrees. Seat post diameter, 30.4mm
Rims Aluminum Alloy Double Wall Rim, 27.5"x13Gx36H

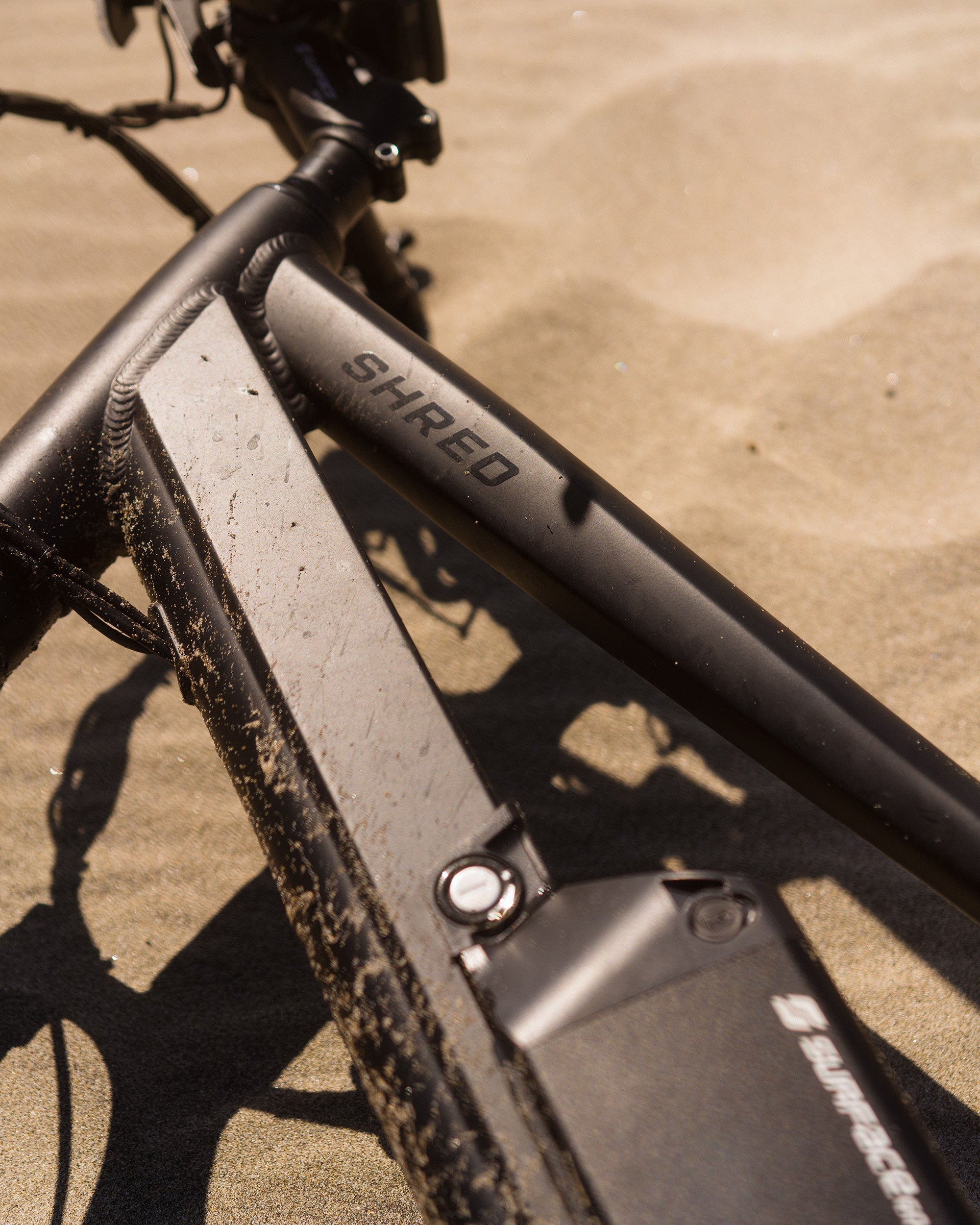

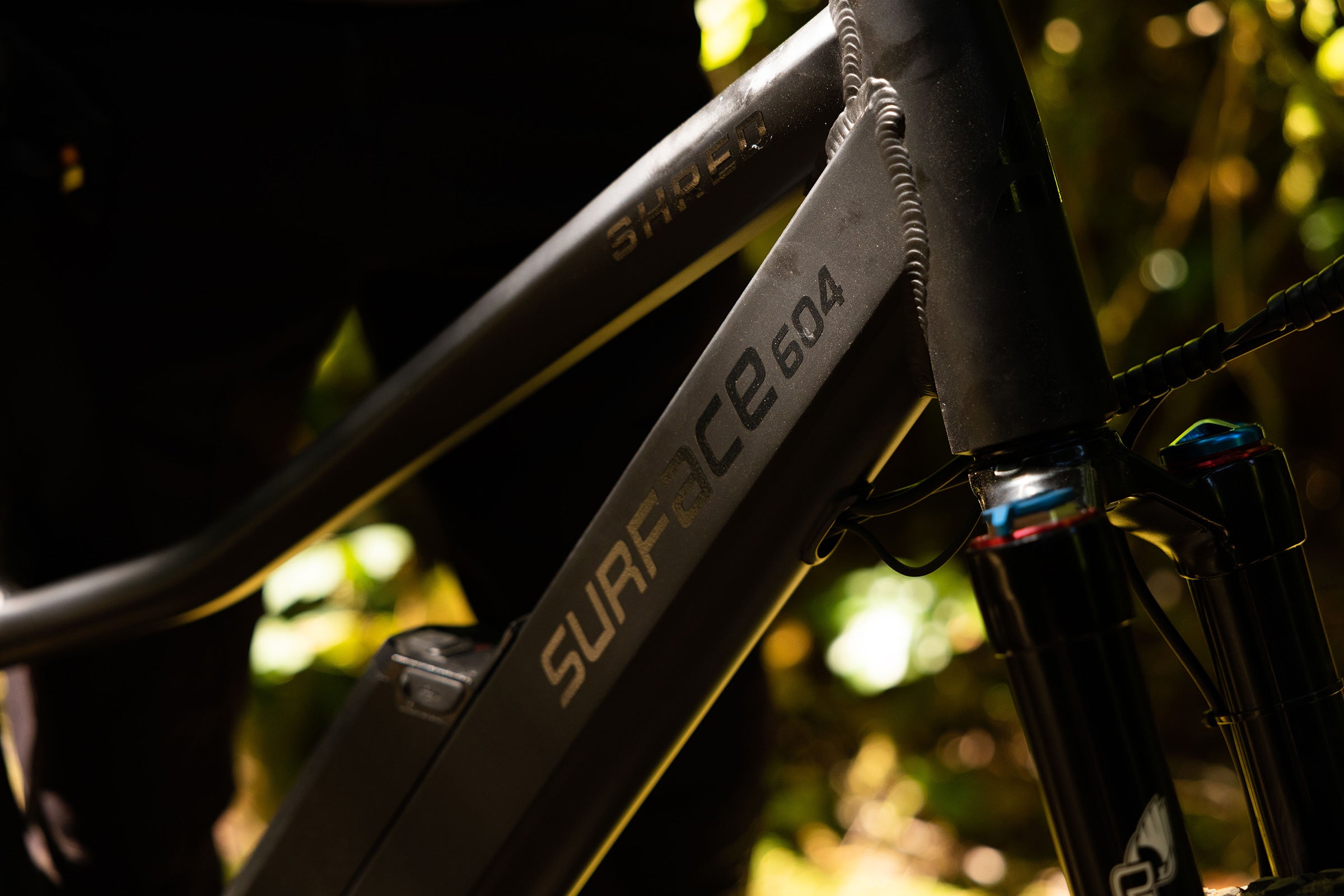

Frame 6061 Aluminum Alloy
Tires CST Patrol 27.5" x 2.8"

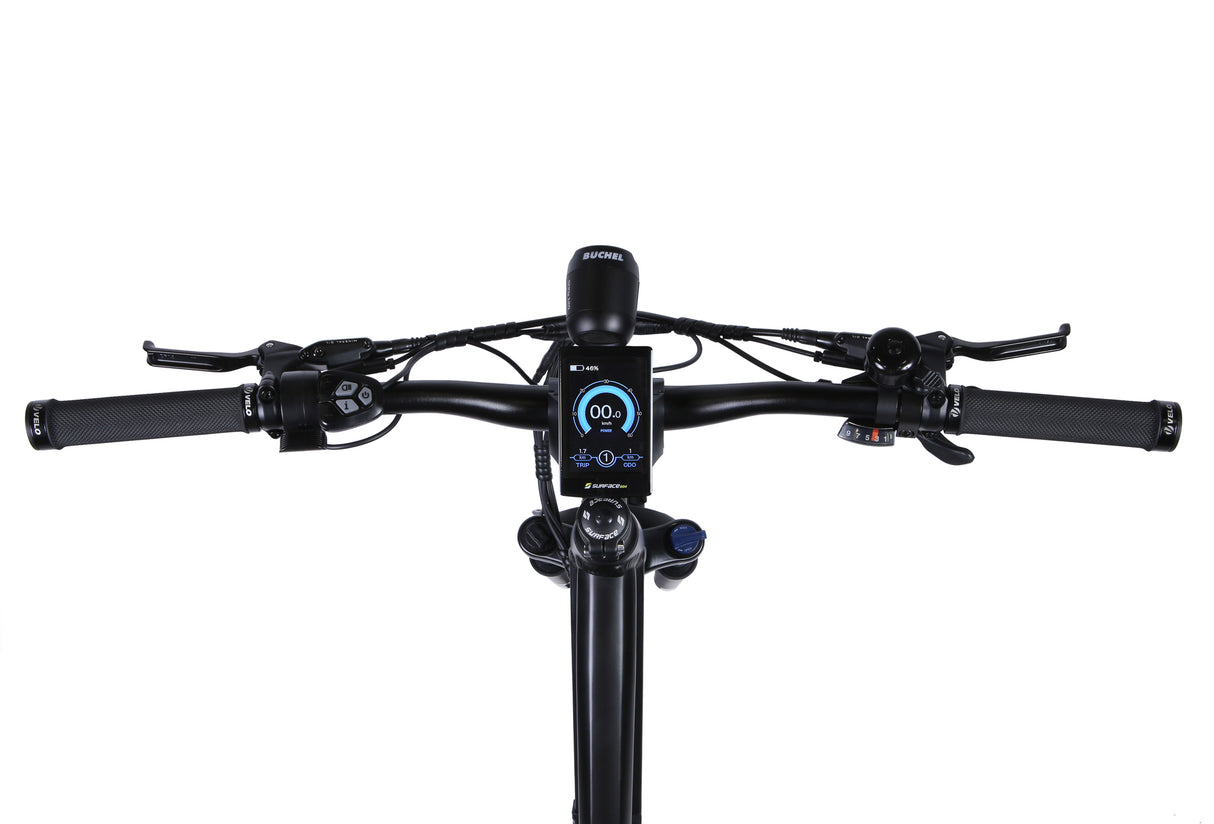

Handlebar PROMAX Aluminum, 30mm Rise With 9° Backsweep, 720mm Wide
Sizes For Riders: S/M 5’2”-5’7”, M/L 5’8” - 8’8”
Frame Sizes: S/M - 17.5", M/L - 19.5"
Standover Height: S/M 28.5” (724mm); M/L 30” (762mm)
Weight 14 AH - 63lbs (28.45kg); 20AH - 65lbs (29.55kg)
Max Capacity Details 285 lbs (130 kg)
Warranty & Shipping
Warranty

Product warranty depends on the brand that you are buying. Some brands offering substantial warranty periods. For example, Michael Blast, Surface604 will have 1 year warrarnty parts, battery and labour. T4B, SPAN offers 6months parts, battery and labour warrarnty.

We handle all warranty situations from our retail store location. To report warranty issue or simply schedule appointment with our tech please give us a call during our business hours.

Click here to read our return and exchange policy

Shipping

Every eBike and scooter minimum charge of $100 applied on shipping to major centers (like Vancouver, Calgary, Toronto, Montreal, Ottawa etc.) (unless picked up directly from the store). Beyond areas i.e. smaller cities - shipping charges will vary from $100-$500.

Bikes are shipped directly from our Calgary store via UPS, or Canada Post. Tracking number is available as soon as order is shipped. Large products such as electric scooters, anything over 150 LBS is shipped via LTL freight. Tracking is also available.

Transit times depend on your location but ranging anywhere from 1-8 business days. Our processing time depends on the inventory level. We usually ship within 1-3 business days.

Applicable taxes will be charged i.e. BC 12%, AB 5%, SK 5%, MB 5%, ON 13%, QC 5%, NB 14%, NS 14%, NL 14%, PEI 14%.

eBikes Calgary DOES NOT ship to USA and Internationally. If you are from the US and looking to purchase T4B or Michael Blast eBikes please order from michaelblast.com web site.
