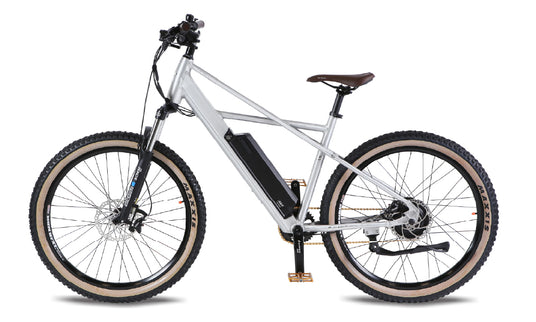

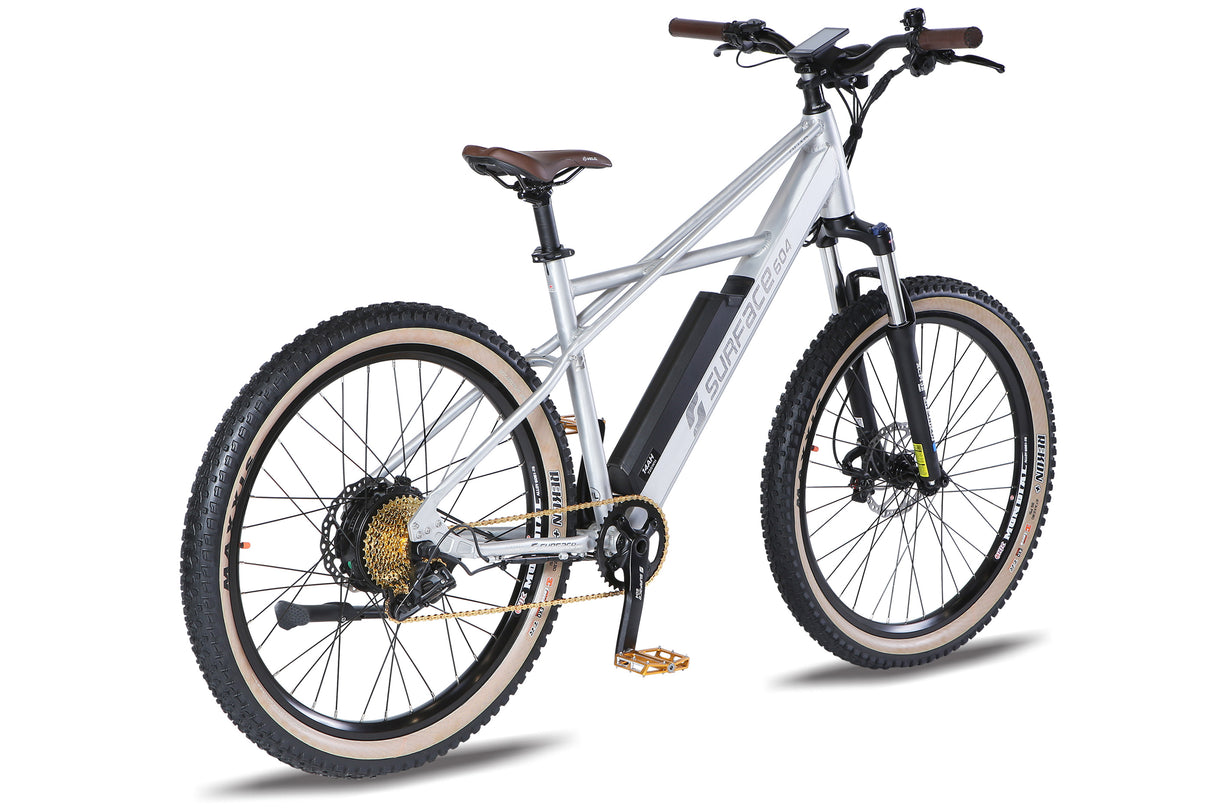

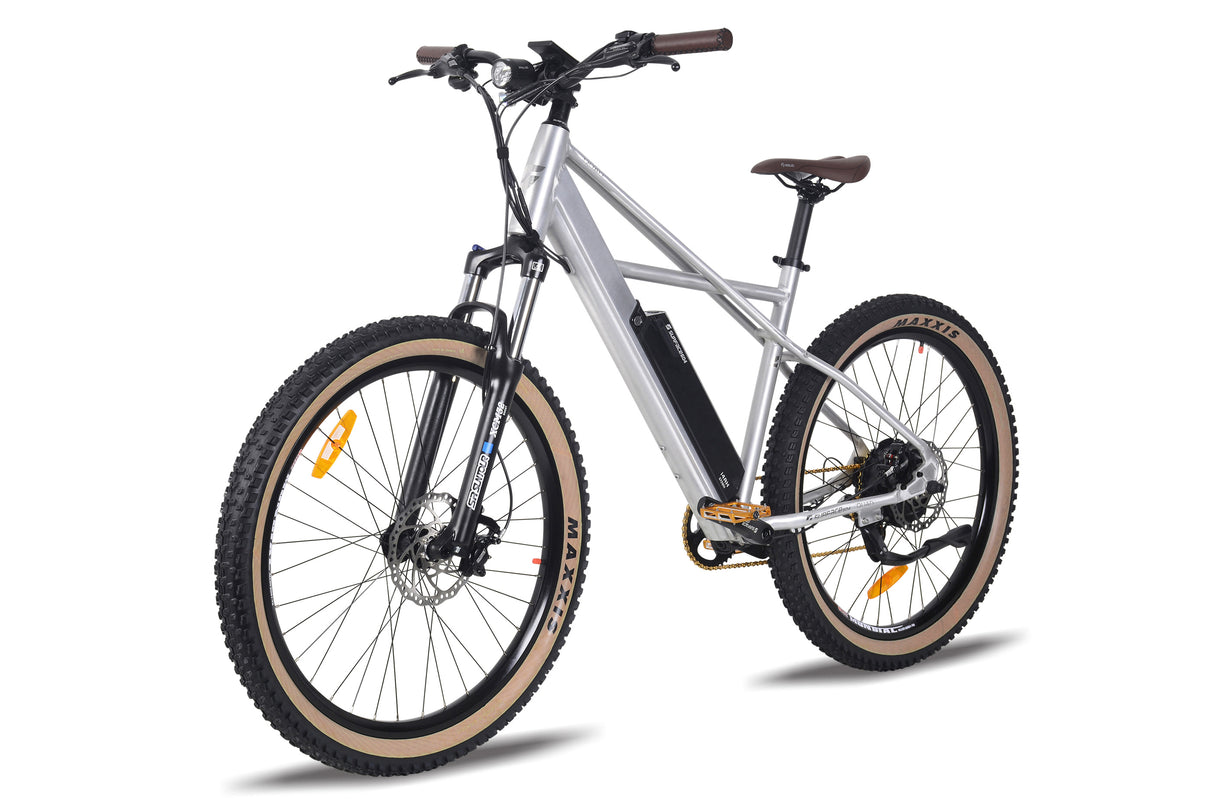

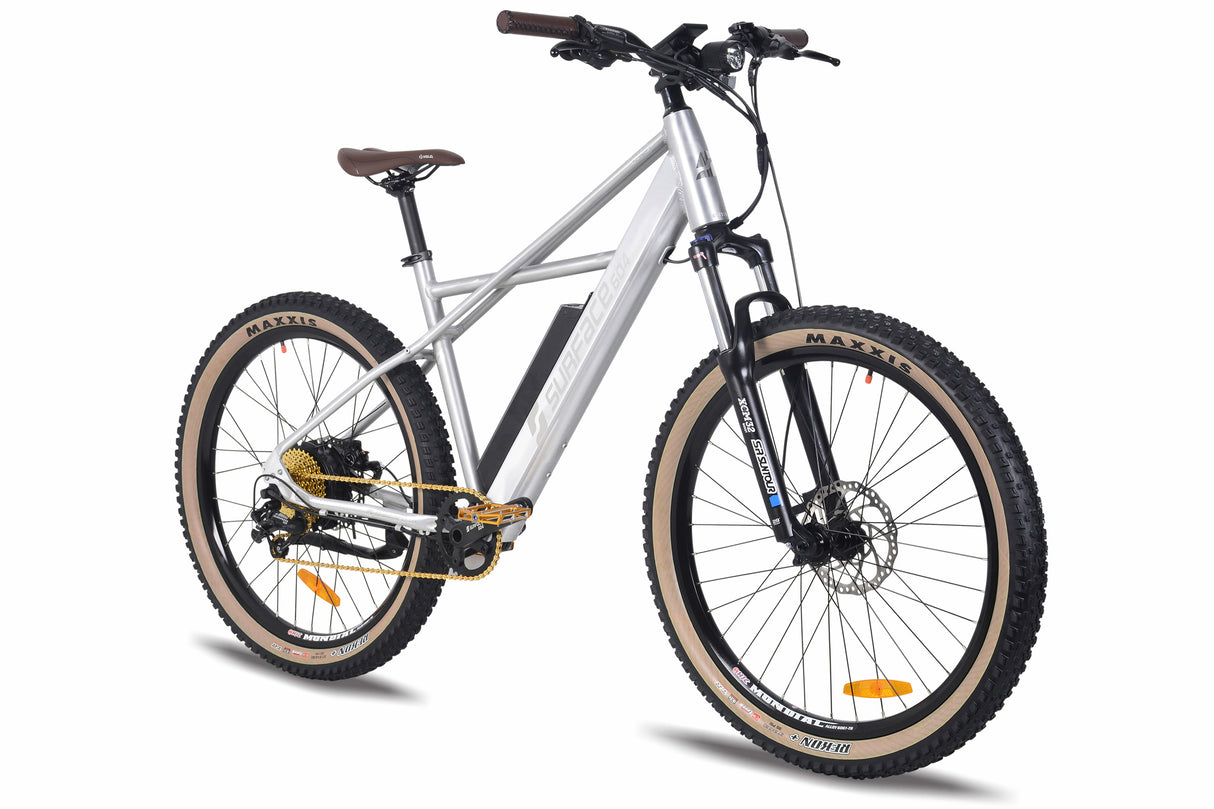

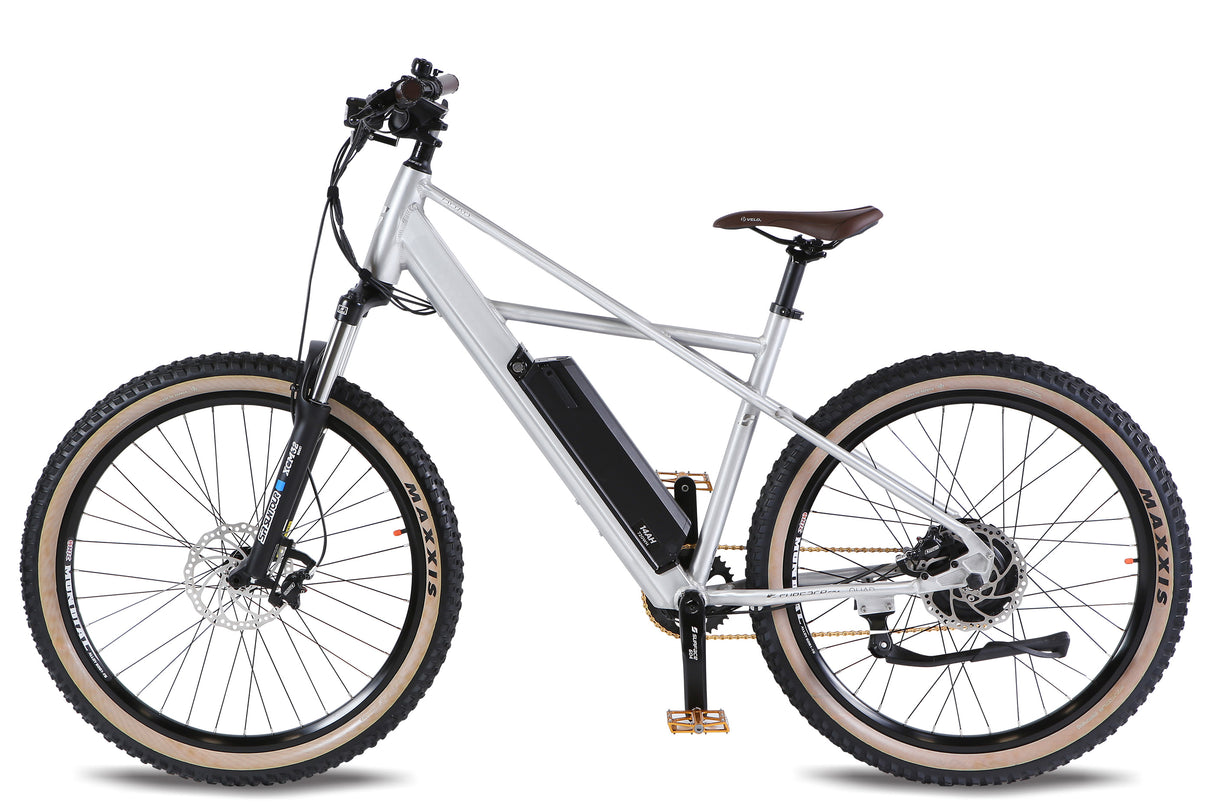

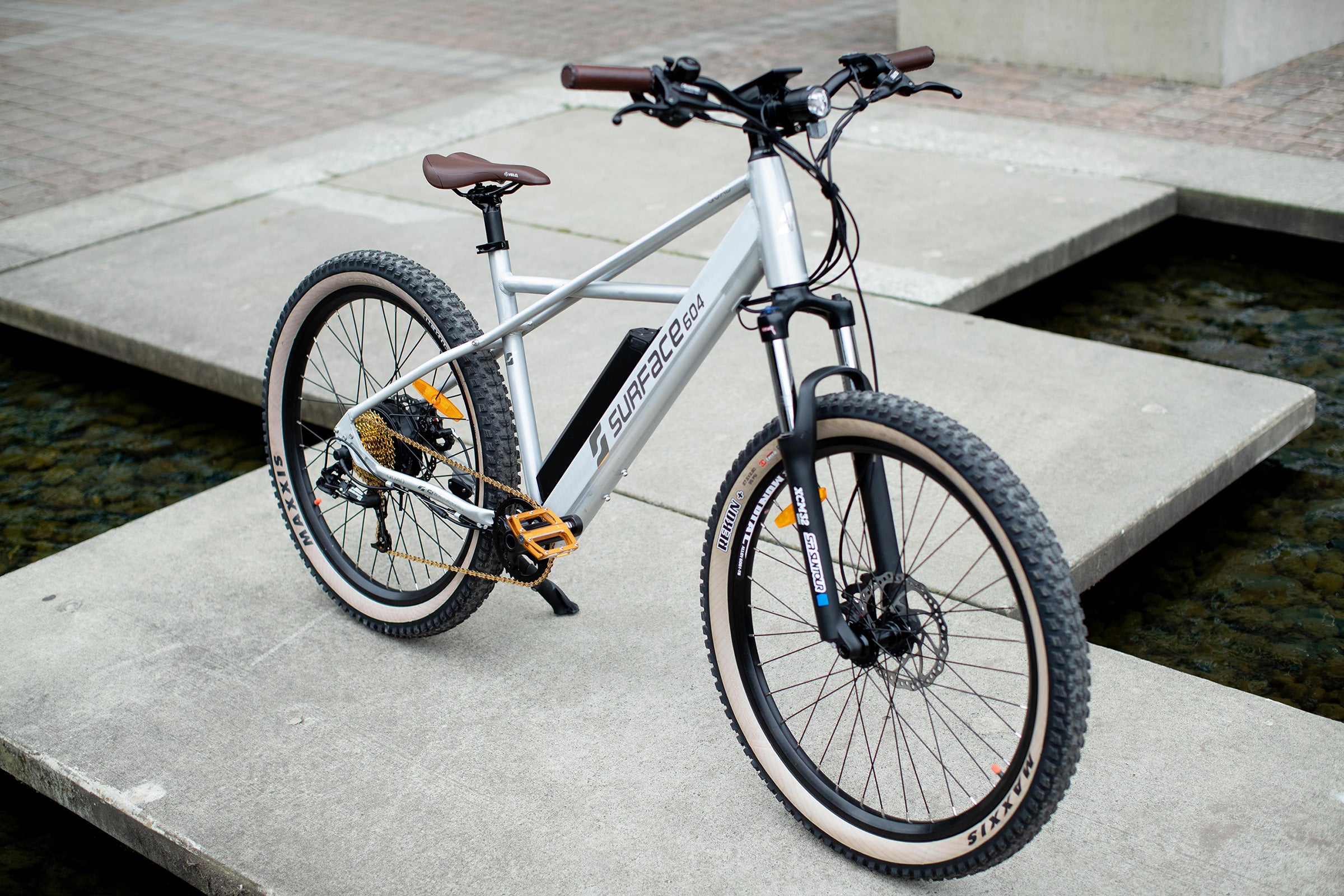

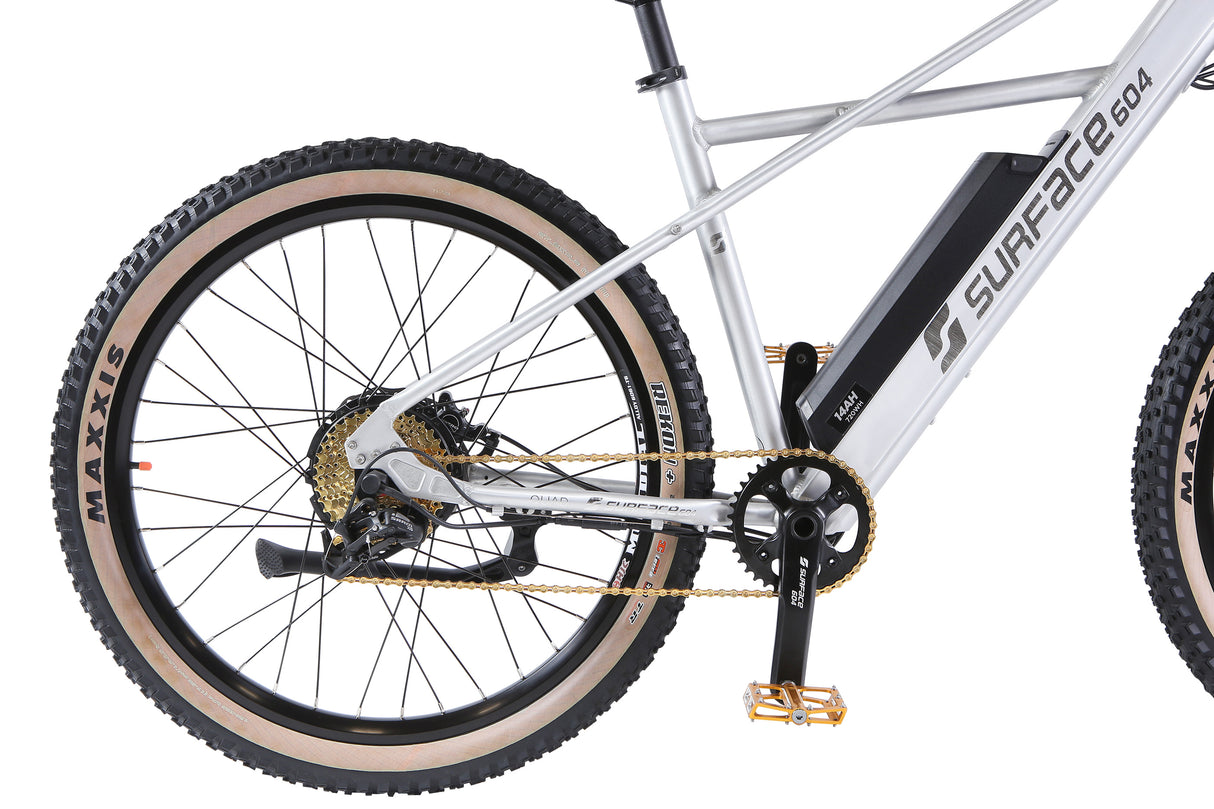

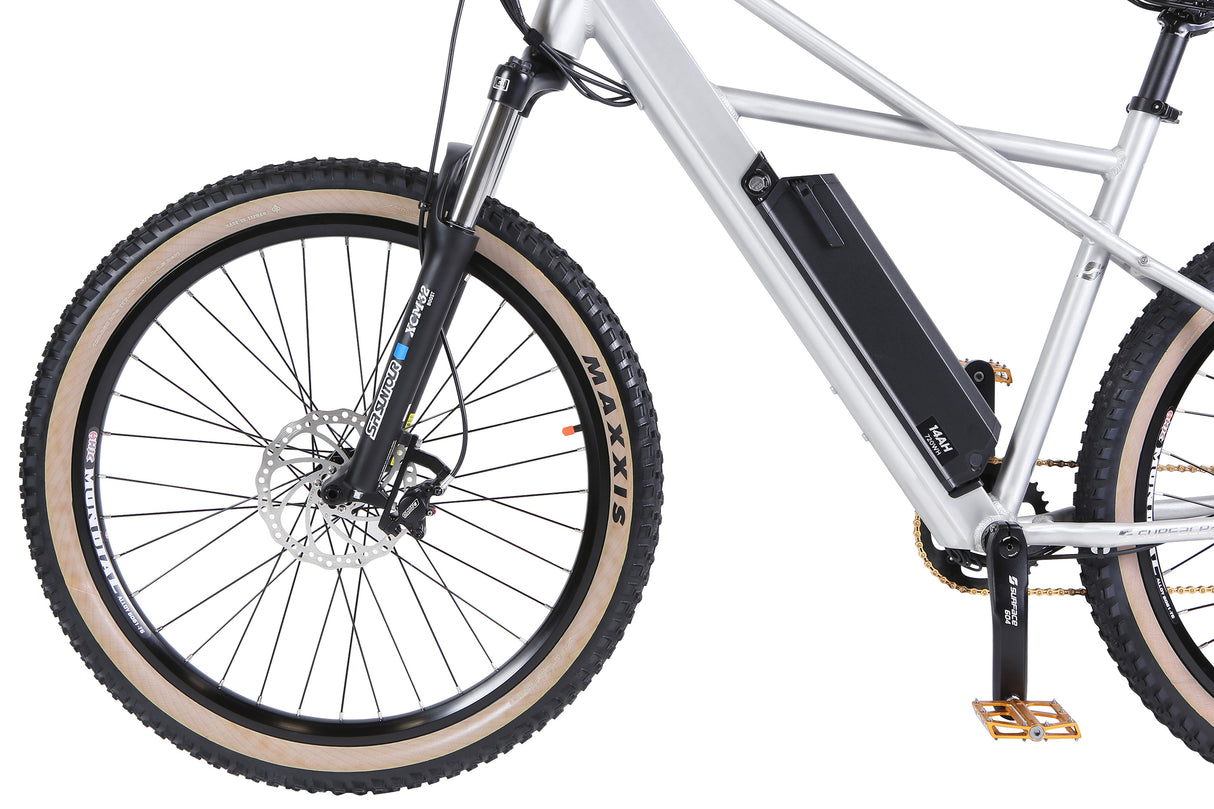

SURFACE 604 - QUAD
2$3,599.99
Brand eBikesCalgary
The Quad is outfitted with a high-speed Bafang electric mountain bike specific 500W hub motor with a throttle that is extremely powerful (peaks at 750W).
A major feature that separates the Quad from the pack of other eMTBs on the market, is the MAXXIS REKON+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech) that the bike comes stock with.
With a larger rubber patch contacting the ground, the plus size tires add traction and mute small bumps, giving the rider added confidence, superior performance and a more comfortable ride.
The Quad comes standard with a number of features that were added to make the riding experience for comfortable.
STANDOVER HEIGHT - Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)
SIZE REFERENCE - Frame Sizes: S/M - 17.5", M/L - 19.5"
For Riders: S/M 5’2” -5’7”, M/L 5’8” - 8’8”
BATTERY OPTIONS - 48V14Ah (Stock)
48V20Ah (Extended Range + $400)
Features:
MOTOR
eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
20mph (32kmh)*, Comes as Class 2
(Unlocked) 30mph (48kmh), as Class 3
BATTERY
Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18650 cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Up to 45mi (72km) with a 48V14Ah Battery
Up to 65mi (105km) with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty

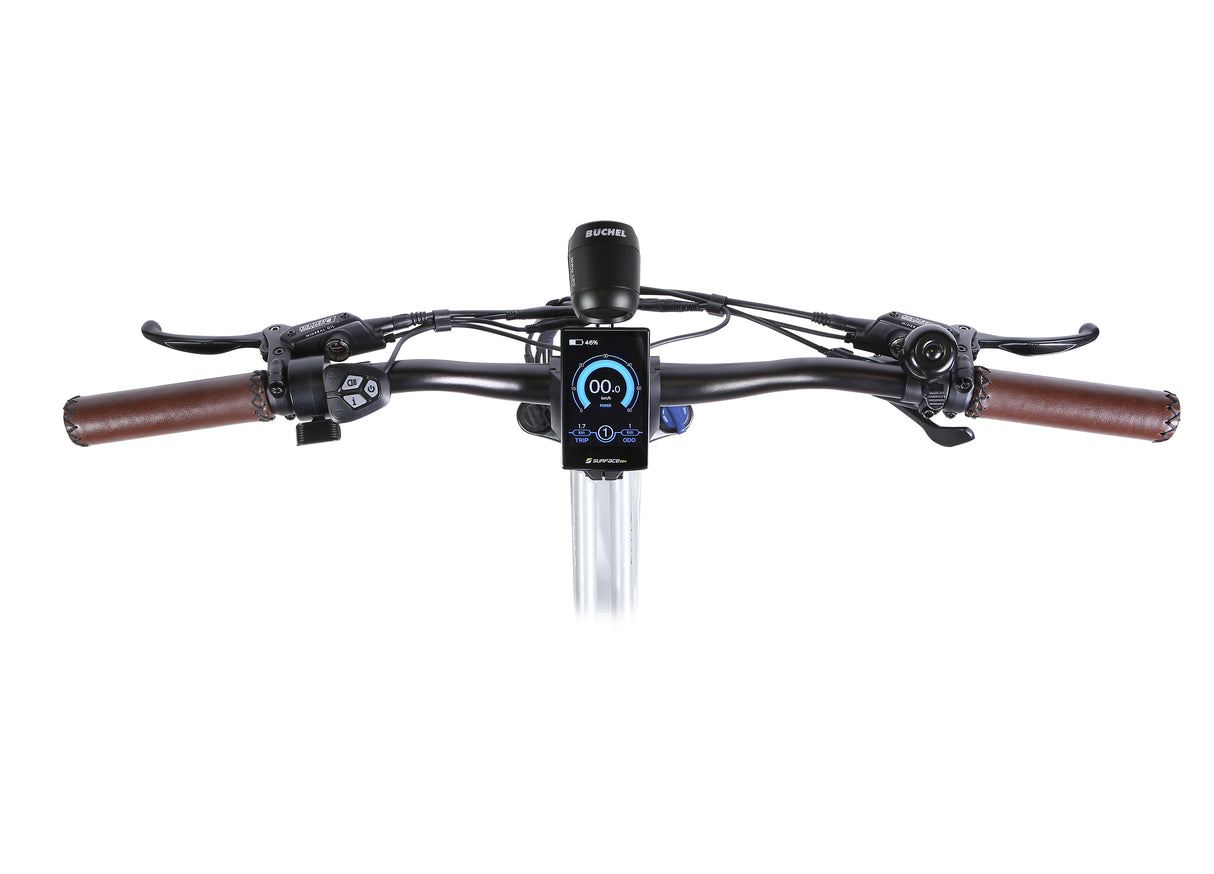

DISPLAY TYPE (NEW)
SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022
LIGHTS
BÜCHEL LED Headlight, Pre-Wired To Connect Rear Stop Light
FORK - UPGRADED SUSPENSION
SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub
MOTOR WIRE HARNESS - UPGRADED
30Ah, can handle up to 120C current
DERAILLEUR
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
CASSETTE
SRAM 12-34T
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO Dorado eMTB Specific Hydraulic Disc
Quad Piston, 180mm Rotor with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Tapered Headtube, Custom Reinforced Battery Mounts,
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
eMTB specific Ergotec Bass 31.8mm
HEAD SET
SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"

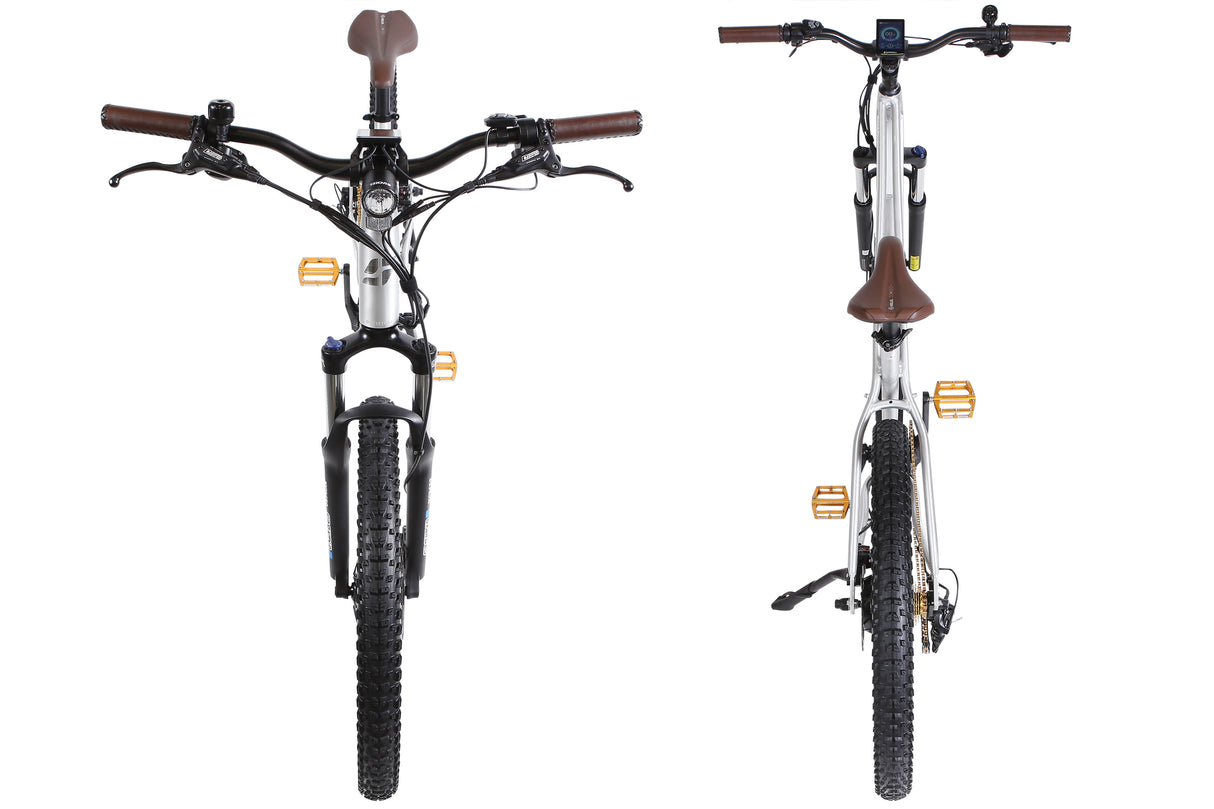

HANDLEBAR
PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide
GRIPS
Full Length 145mm, Brown Color
PEDALS
WELLGO Platform, with Die Casting Body, Gold Color
CHAIN
KMC 9-Speed, Gold Color
SEAT POST DIAMETER
30.4mm
SADDLE
Velo Ergonomic Streamlined Design, Brown
WHEELS/TIRES
MAXXIS REKON+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech)
RIMS
Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
FRONT HUBS
1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
KICKSTAND
Adjustable Heavy-Duty Aluminum
STANDOVER HEIGHT
Small-Medium: 28.5” (724mm
Medium-Large: 30” (762mm)
RECOMMENDED RIDER HEIGHT
For Riders: S/M - 5’2” - 5’7”, M/L 5’8” - 6’6”
Frame Sizes: S/M - 17.5", M/L - 19.5"
NET WEIGHT (INCLUDING BATTERY)
27.67KG/61lb (14AH)
29.55KG/65lbs (20AH)
BATTERY WEIGHT
14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs
WEIGHT CAPACITY
285lbs (130kg)
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses
Matching Accents Throughout I.E. Seat
Grips, Tires, Gold Chain, Pedals
OPTIONAL UPGRADE FEATURES
21700 Samsung Cells 48V20Ah Battery, Chain Guide
NCX Suspension Seat Post, Metal Fenders, Rear Rack
Rear Led Light, Wren Inverted 110mm 4.82 Lbs Fork
Good rugged bike, big tires but not fat tires for better battery life. Definitely has power and the torque sensor make this bike seem very real and natural. Added a suspension seat post and its a lot of fun to ride.
CanadaI am 5’8” and weigh 196 lbs just so you have a reference point. I purchased a M/L Quad by Surface 604 because I was looking for something a little faster then the Moscow Plus by NCM that I previously owned! I have 420 KMS on the Quad and I can say that it is amazing! Although it is a hub motor, it is very very quiet and has a smooth transition of power from the motor to the pedals! You almost don’t even feel it, you think wow this is easy. Surface 604 uses a torque sensor which is activated by how hard you pedal, it feels really natural and allows me a 65 year old to enjoy those hills instead of being intimidated by them. Don’t even get me started on the brakes... all as I can say is be careful... they are squeal free and instant stopping, you ride with more confidence. The bike is a true class 3 so it will go 45 KMS an hour with throttle only, i love that. So far the product and service from the dealer has exceeded my expectations. Thank-you EBIKES Calgary and Surface 604. Lastly I would like to thank Erin at EBIKES Calgary for all her assistants with this purchase and Mitchel at Surface 604 for his technical help.
