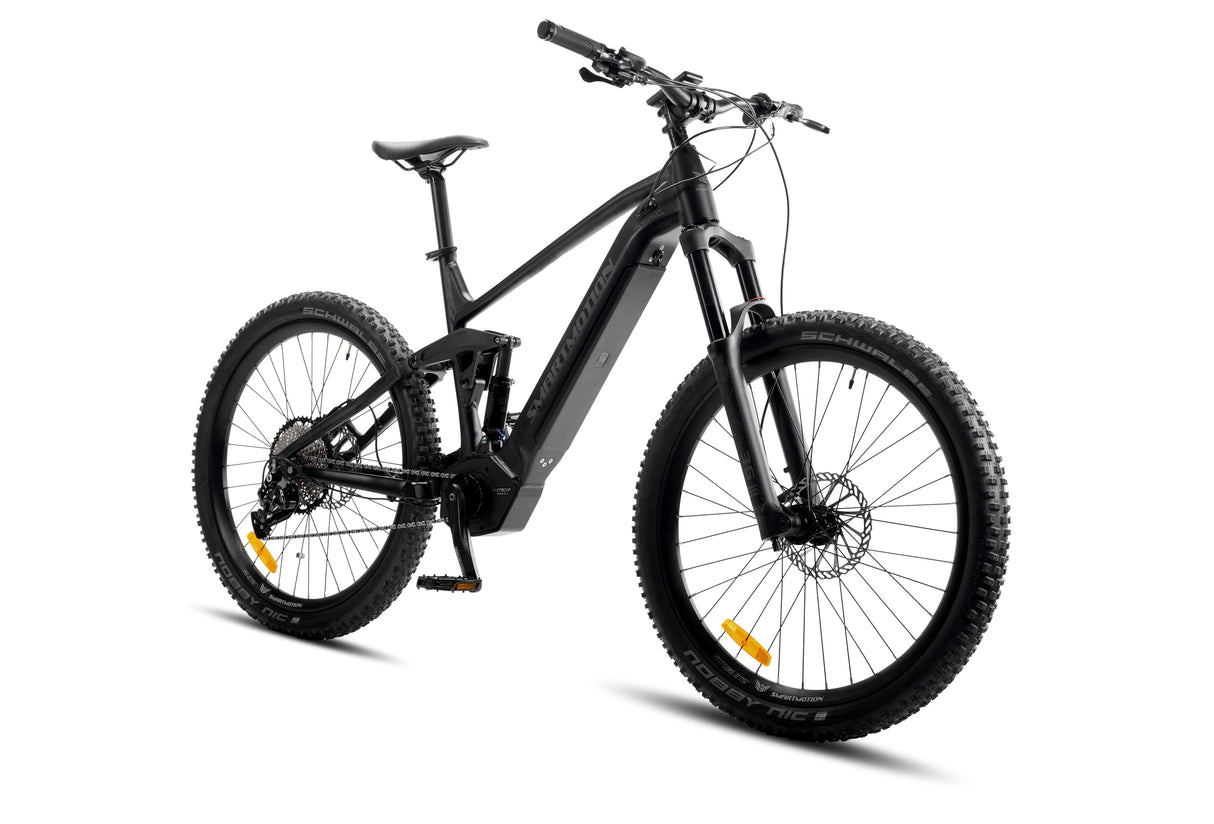

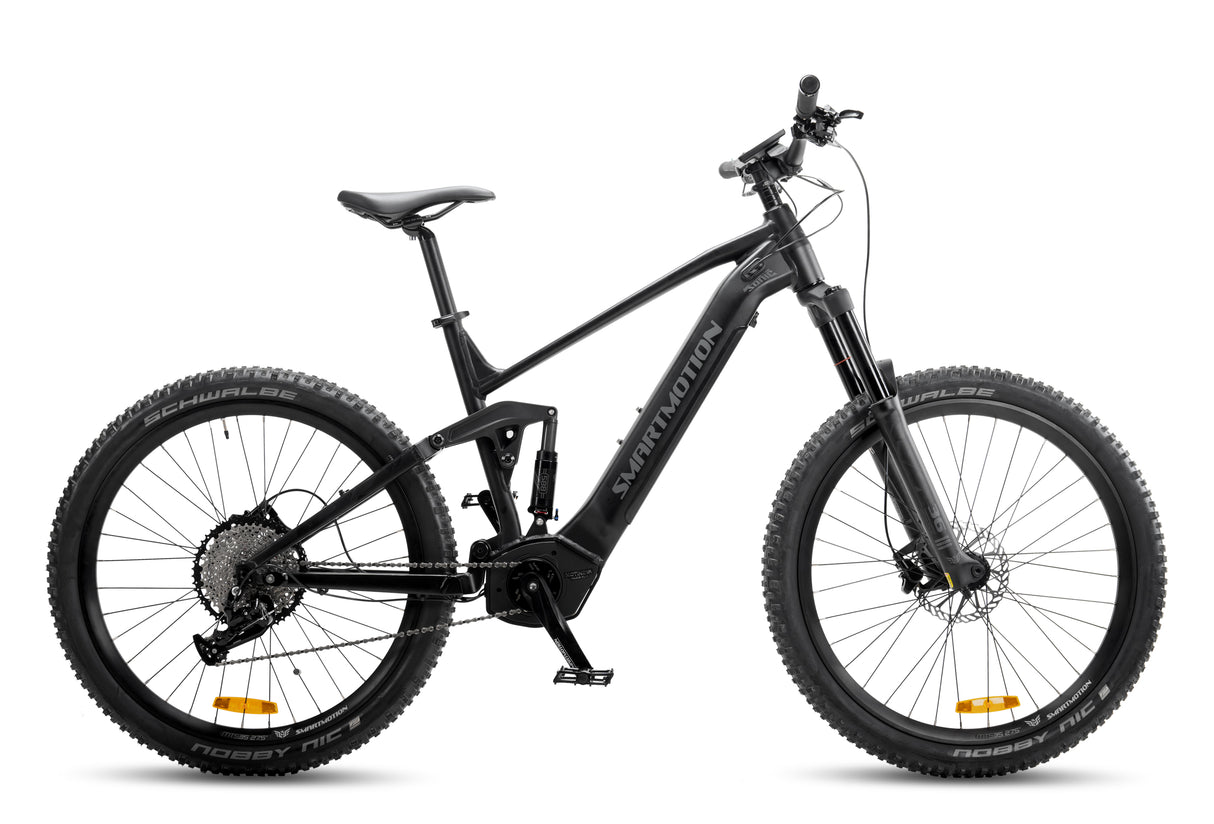

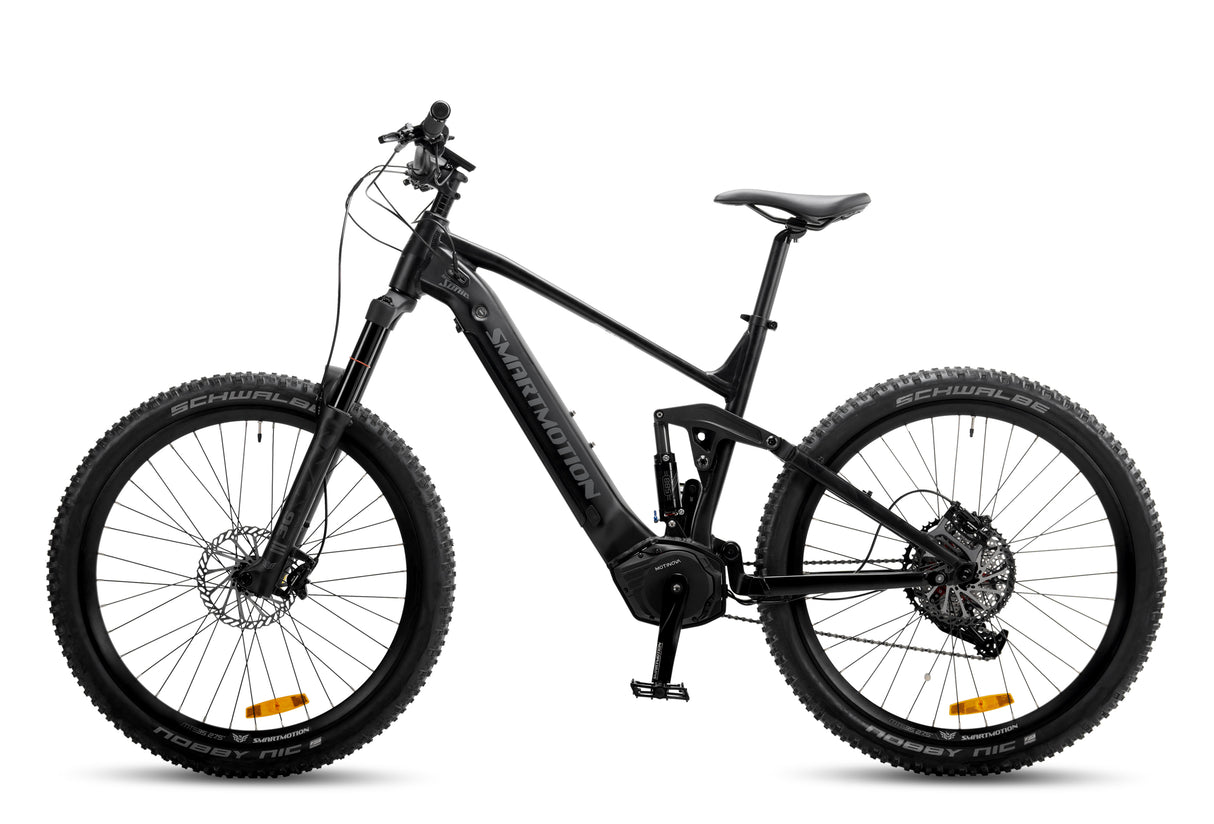

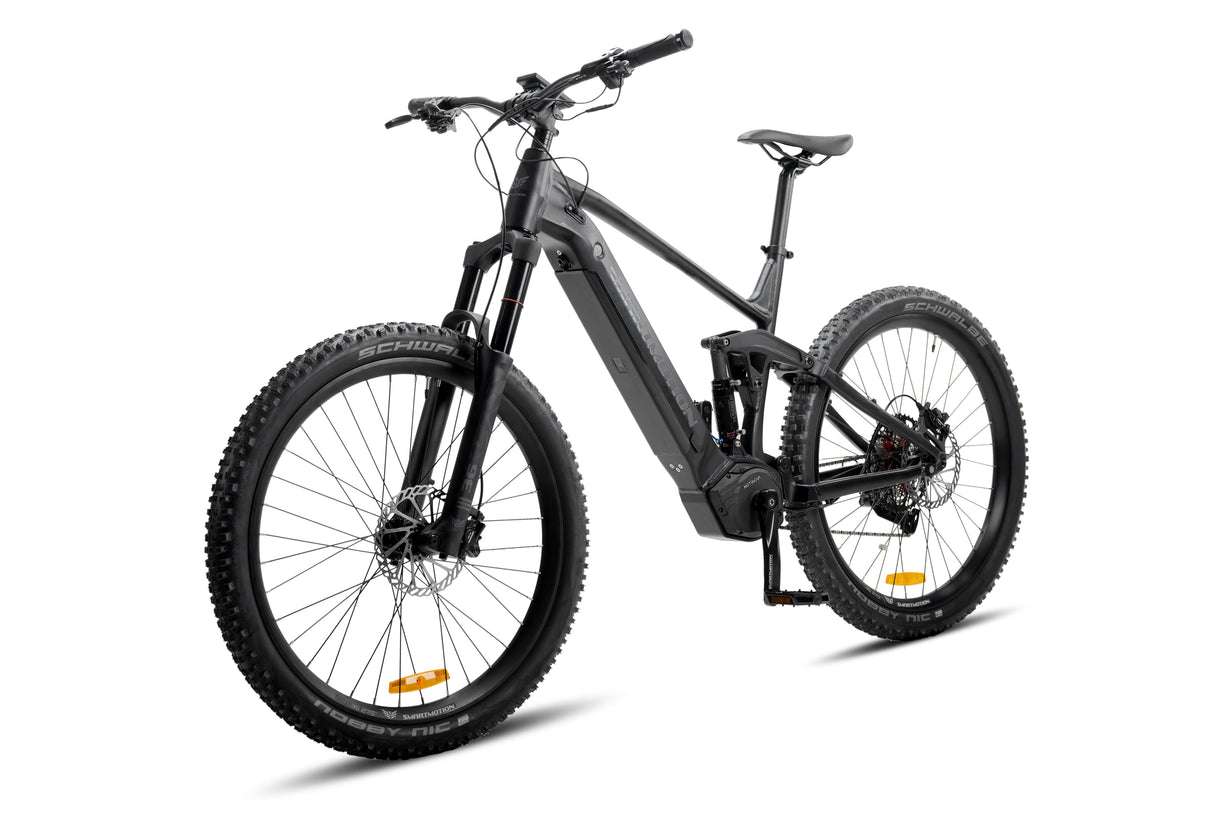

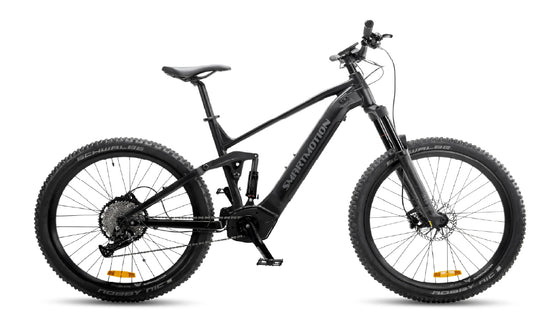

Smartmotion G5 Hypersonic Mountain Black
Smartmotion has always valued innovation - and our newest Hypersonic model carries this philosophy to a new level. The Hypersonic XC trail bike is optimized to bring you premium performance and character while delivering maximum possible value.
Featuring fully customizable plush air forks and rear shock, 11-speed low-ratio
gearing and powerful MOTINOVA mid-drive motor, the Hypersonic is designed
to offer you a premium experience while meeting the budget.
FRAME: 6061 Alloy, hydrauformed, internal cable routing, in tube battery. 148 x 12mm through axle. Travel 120mm. With rear rack and mudguard mount. S, M and L frame size options - 16”, 18” and 20” inches frame sizes.
MOTOR: 350W Super-silent MOTINOVA VOLANS mid-drive 85N.M, CANBus smart mode output
FORK: Smartmotion 140mm travel air suspension fork with rebound and air lockout adjustment, 36mm stanction 140mm travel with tapered head tube.
HEAD PARTS: Bearing type
HANDLE BAR: Alloy MTB Handlebar 780mm x 22.2mm outer diameter, 31.8mm inner diameter, 30mm rise
STEM: Forged TDS-D600-8FOV/IOS-M 41mm extension
GRIP: Velo VLG-884 with 2 alloy lock rings
BRAKE: Hydraulic disc brakes, with 180mm rotors
CASSETTE: 11 speed 11-50T black
DERAILLEUR: L-Twoo RD-A11-X CS50T 11-speed derailleur and shifter
CHAIN: X11 NP/NP 11/128L
FRONT COG: 18T 7075 Alloy CNC narrow wide
BATTERY: 575Watts 36V 16A Samsung 3200mAh cells with CANBus software BMS communication between controller
DRIVE MODE: Torque sensor with Smart mode, throttle optional (not included)
GEARS: LTWOO 11-50T 11-speed cassette
CHAINWHEEL: 18T narrow wide alloy, 170mm crank
FRONT COG: 18T 7075 Alloy narrow wide
FRONT HUB: Formula DC-251B double bearing
REAR HUB: Formula DC-3248 double bearing
SPOKES: black stainless steel
RIM: MTSC35D double wall
CRANK: Forged 170mm Alloy
TYRE: Schwable Nobby Nic performance 27.5x2.6" MTB tyre
SADDLE: Velo VL-3533 VACUUM SADDLE
SEAT POST: SP-2003 31.6x300MM
REAR SHOCK: Exform 588RL 190 x 50mm air shock, 50mm travel with rebound and lockout
DISPLAY PANEL: Color display with 7 assist levels, battery & motor temperature, range, cadence meter, power, capacity etc.
LIGHT: Integrated front and rear light powered from the main battery
RACK: Heavy duty rear rack and mudguard mount
CABLES: Water resistant cable plugs on all components for simple and quick, servicing/replacement
MAX LOAD: The max load of the electric bike is 100kg coupled with the rack +25kg
WEIGHT: The weight of bicycle: 26 kg
SIZES: Available in S, M, L

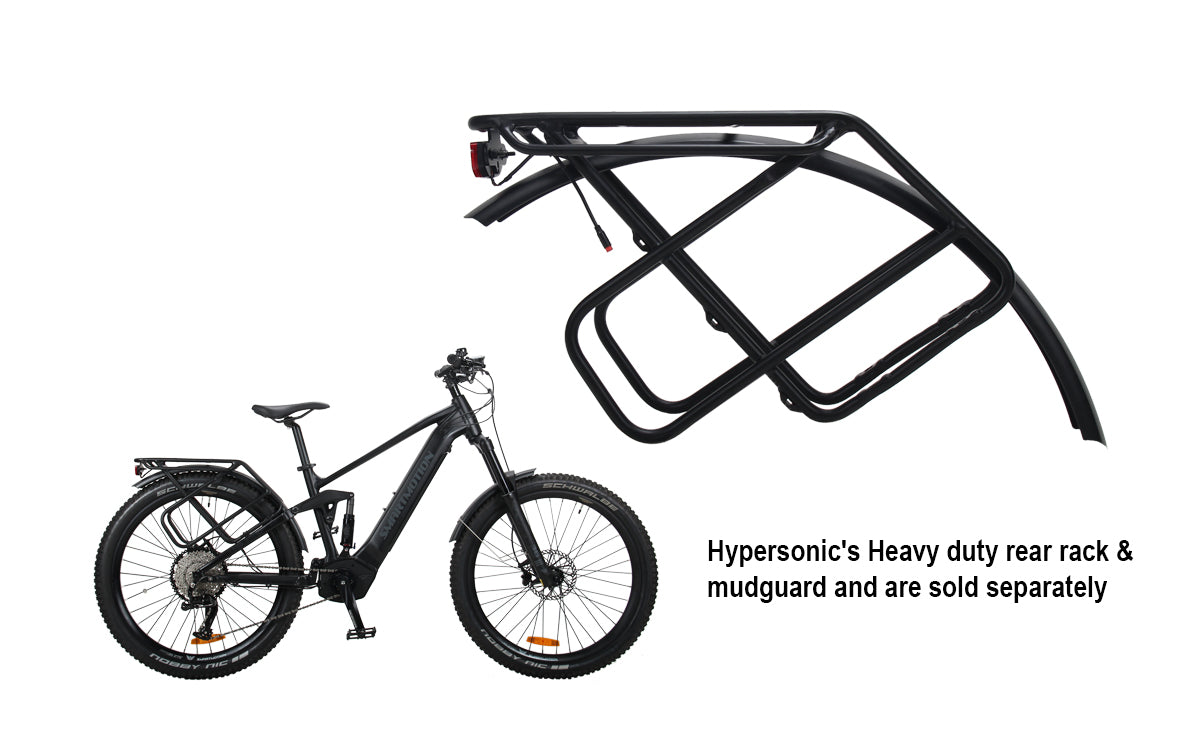

Hypersonic's Heavy duty rear rack and mudguard do not come with the bike and are sold separately. Please see Smartmotion Parts menu to purchase.
